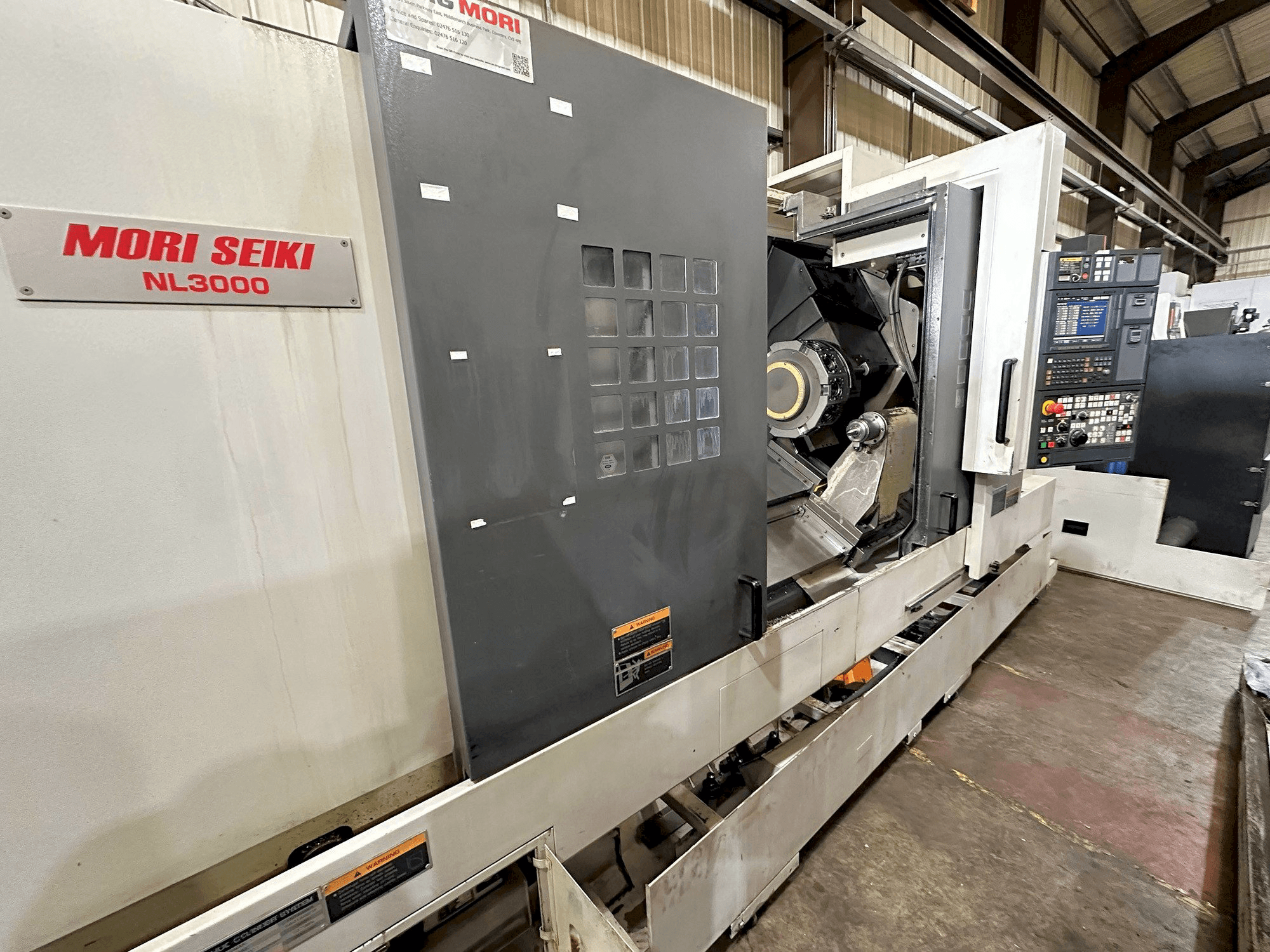

Front view of MORI SEIKI NL3000Y/1250  machine

MORI SEIKI NL3000Y/1250

MORI SEIKI - NL3000Y/1250

2008

Rs. 7,457,400

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Chloé Martin

+33 7 86 98 48 01

c.martin@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Mori Seiki NL3000Y/1250 Lathe was manufactured in the year 2008 in Japan. It is equipped with a Mori MSX-850III control unit and has 5 axis. The machine has a spindle speed of 3000 rpm.

Overview

  • brand: MORI SEIKI
  • year: 2008
  • MODEL: NL3000Y/1250
  • application type: Turning
  • Location: United Kingdom
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: Mori
  • GINDUMAC ID: GB-TUR-MOR-2008-00002

Technical Information

Control Unit

  • Brand: Mori
  • Model: MSX-850III

Main drive

  • Number of spindles: 1
  • Spindle speed range: 3000 1/MIN
  • Spindle motor power: 22/18.5k KW
  • Number of axis: 5

Movement

  • X-AXIS Movement: 280 mm
  • Y-AXIS Movement: +/-60 mm
  • Z-AXIS Movement: 1370 mm

Turret

  • Number of turrets: 1

Tools

  • Slots in storage: 12

Media

  • Power consumption: 49 kva
  • Chip conveyor: Yes

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Swing over bed: 995mm
      • - Swing over the cross-slide : 825mm
      • - Maximum cutting diameter: 420 mm
      • - Bar capacity: 90 mm
      • - Maximum cutting length: 1260mm
      • - Milling motor power: 5. 5/3. 7kw, speed 6000rpm
      • - Rapid feedrates : xz: 30m/minute
      • - Tailstock body travel: 1284 mm
      • - Tool setter, 3 jaw chuck, coolant, interlocked guards, low volt light

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
