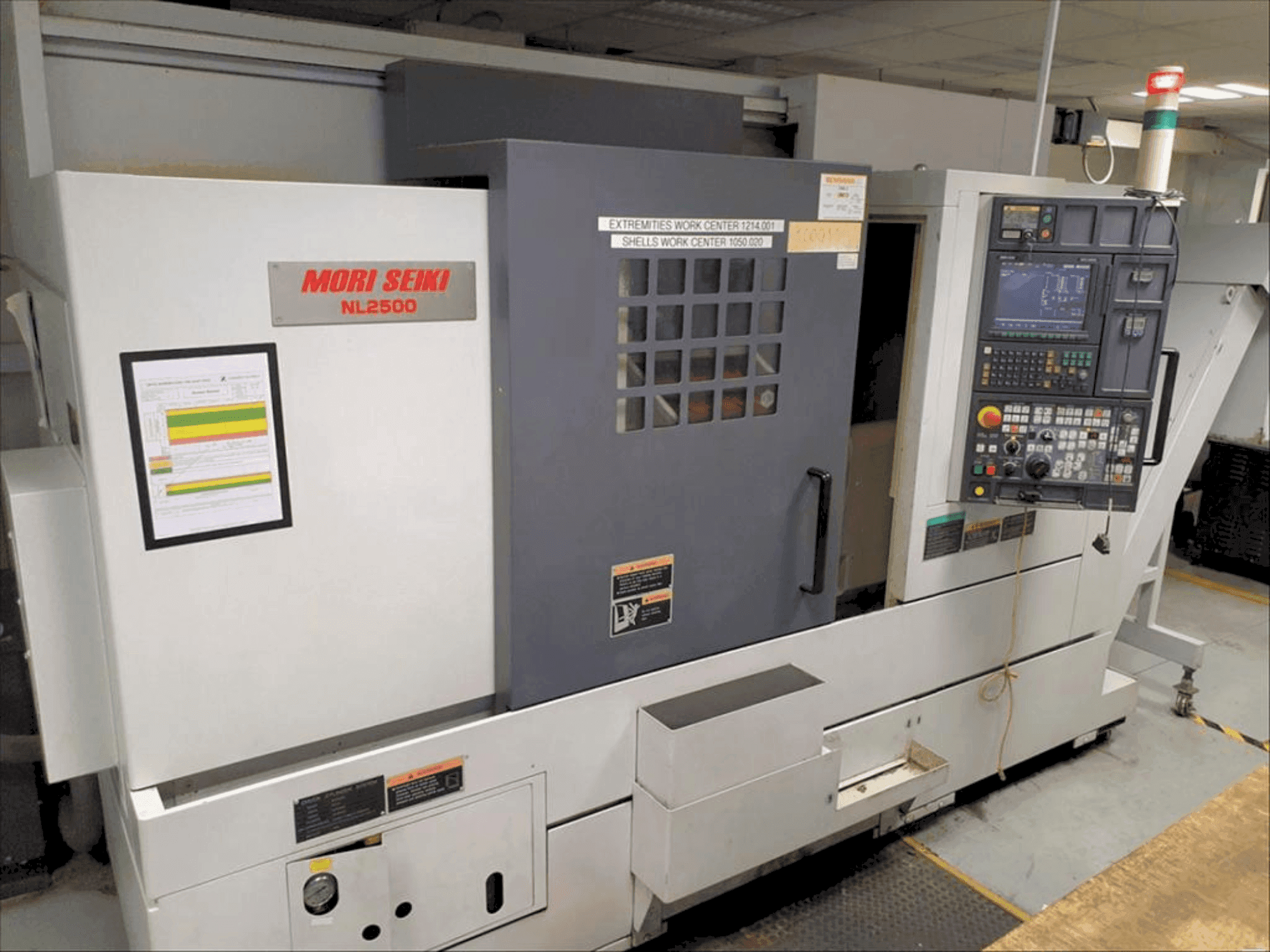

Front view of MORI SEIKI NL2500Y machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MORI SEIKI NL2500Y/700

Photo Gallery

MORI SEIKI - NL2500Y/700ES-TUR-MOR-2008-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MORI SEIKI NL2500Y/700 For Sale | gindumac.com

Show in original language

This 4-axis MORI SEIKI NL2500Y/700 was manufactured in 2008. It features a MSX 850II CNC control, with X, Z, and Y-axis travels of 260mm, 795mm, and 100mm respectively. The machine offers a maximum turning diameter of 356mm and a length of 705mm. It includes a chip conveyor, 3-color status lamp, fixed tool holders, and a parts extractor. If you are looking to get high-quality turning capabilities consider the MORI SEIKI NL2500Y/700 machine we have for sale. Contact us for more information.

Overview

brand: MORI SEIKI
year: 2008
MODEL: NL2500Y/700
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine

Technical Information - MORI SEIKI NL2500Y/700

General Data

Measurements width: 1922 mm
Measurements depth: 3100 mm
Measurements height: 2120 mm
Machine weight: 6100 kg

Main drive

Spindle speed range: 4000 rpm 1/MIN
Spindle motor power: 11 / 7.5 kW

Movement

X-AXIS Movement: 260 MM
Y-AXIS Movement: 100 mm (+/-50 mm)
Z-AXIS Movement: 795 MM
C-AXIS Movement: 0.001

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Rapid Traverse (X, Z, Y): 30000 / 10000 mm/min
Max. Turning Length: 705 mm
Swing Over Bed: Ø 923.8 mm / Swing Over Bed: Ø 923.8 mm
Bar Work Capacity: Ø 80 mm (Main)
Upper Turret Positions: 12
Rotating Tool Stations (Per Turret): 12 / Rotating Tool Speed: 6000 rpm / Rotary Tool Power: 5.5 kW
Fixed Tool Holders: Included
3-Color Status Lamp: Included / Parts Extractor: Included

Machine Benefits

Technical Machine Benefits

Main spindle nose: a2-8

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
