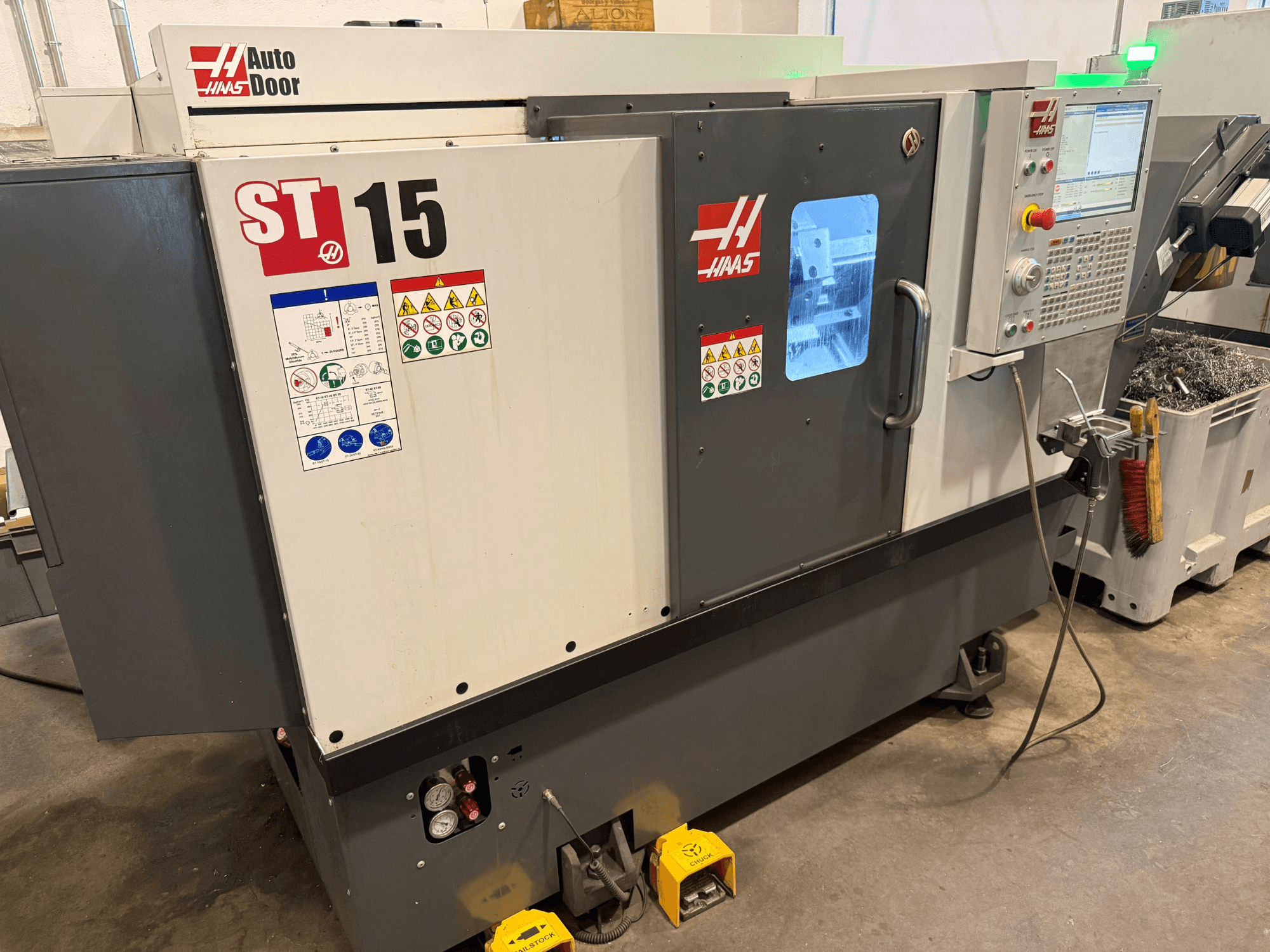

HAAS ST 15

Photo Gallery

HAAS - ST 15ES-TUR-HAA-2019-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS ST 15 Horizontal Lathe For Sale | gindumac.com

Show in original language

Horizontal turning machine manufactured in 2019. This HAAS ST 15 features a maximum cutting diameter of 356 mm and a cutting length of 406 mm. It includes a 12-station VDI turret and a hydraulic chuck diameter of 210 mm. If you are looking to get high-quality turning capabilities, consider the HAAS ST 15 machine we have for sale. Contact us for further details.

Overview

brand: HAAS
year: 2019
MODEL: ST 15
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine

Technical Information - HAAS ST 15

Movement

Number of Axes: 2
X-axis Travel: 200 mm
Z-axis Travel: 406 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Power: 14.9 kW
Spindle Speed: 4000 RPM

Additional Information

CNC Control: HAAS Next Generation Control (NGC)
Max cutting diameter: 356 mm
Max cutting length: 406 mm
Max bar capacity: 63.5 mm
Max swing diameter: 419 mm
Max spindle speed: 4,000 rpm
Spindle nose: A2-6
Hydraulic chuck diameter: 210 mm
Spindle motor power: 14.9 kW (20 hp)
Turret type: 12-station VDI
X/Z axis rapids: 30.5 m/min

Additional equipment

Automatic tool probe (tool setter)
Tailstock with hydraulic quill
Belt-type chip conveyor
Coolant system with tank and pump

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
