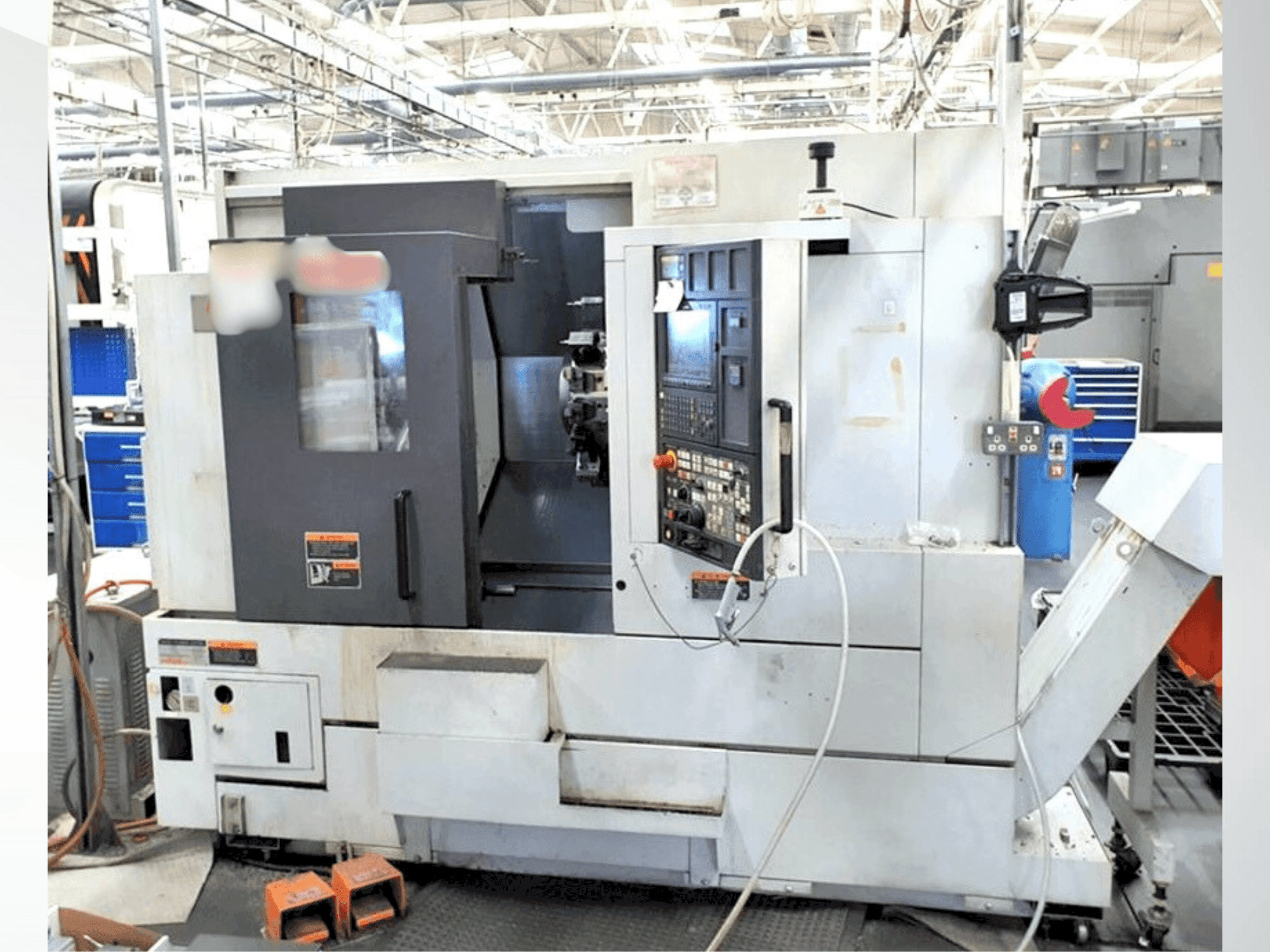

This 4-axis MORI SEIKI NL2000Y/500 was manufactured in 2004. It features a CNC control MSX 850, with X-axis travel of 260 mm, Z-axis travel of 590 mm, and Y-axis travel of 100 mm. The machine offers a max turning diameter of 356 mm and a max turning length of 510 mm. It includes a chip conveyor, 3-color status lamp, fixed tool holders, and a parts extractor. If you are looking to get high-quality turning capabilities consider the MORI SEIKI NL2000Y/500 machine we have for sale. Contact us for more information.
Overview
- brand: MORI SEIKI
- year: 2004
- MODEL: NL2000Y/500
- application type: Turning
- Location: Spain
- machine type: Horizontal Turning Machine
Technical Information - MORI SEIKI NL2000Y/500
General Data
- Measurements width: 1922 MM
- Measurements depth: 2695 MM
- Measurements height: 2120 MM
- Machine weight: 5700 KG
Main drive
- Spindle speed range: 6000 1/MIN
- Spindle motor power: 5.5 kw
Movement
- X-AXIS Movement: 260 mm
- Y-AXIS Movement: 100 mm (+/- 50)
- Z-AXIS Movement: 590 mm
Workpiece
- Workpiece drm: 356 mm
Media
- Chip conveyor: Yes
Additional equipment
- - 3-Color Status Lamp
- - Fixed Tool Holders
- - Parts Extractor
Additional Information
- Technical Machine Benefits:
- - Max turning length: 510 mm
- - Swing over bed: Ø 923. 8 mm
- - Swing over cross slide: Ø 755 mm
- - Bar work capacity: Ø 65 mm (main spindle)
- - Turret positions: 16
- - Rotating tool stations: 16 (per turret)
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
