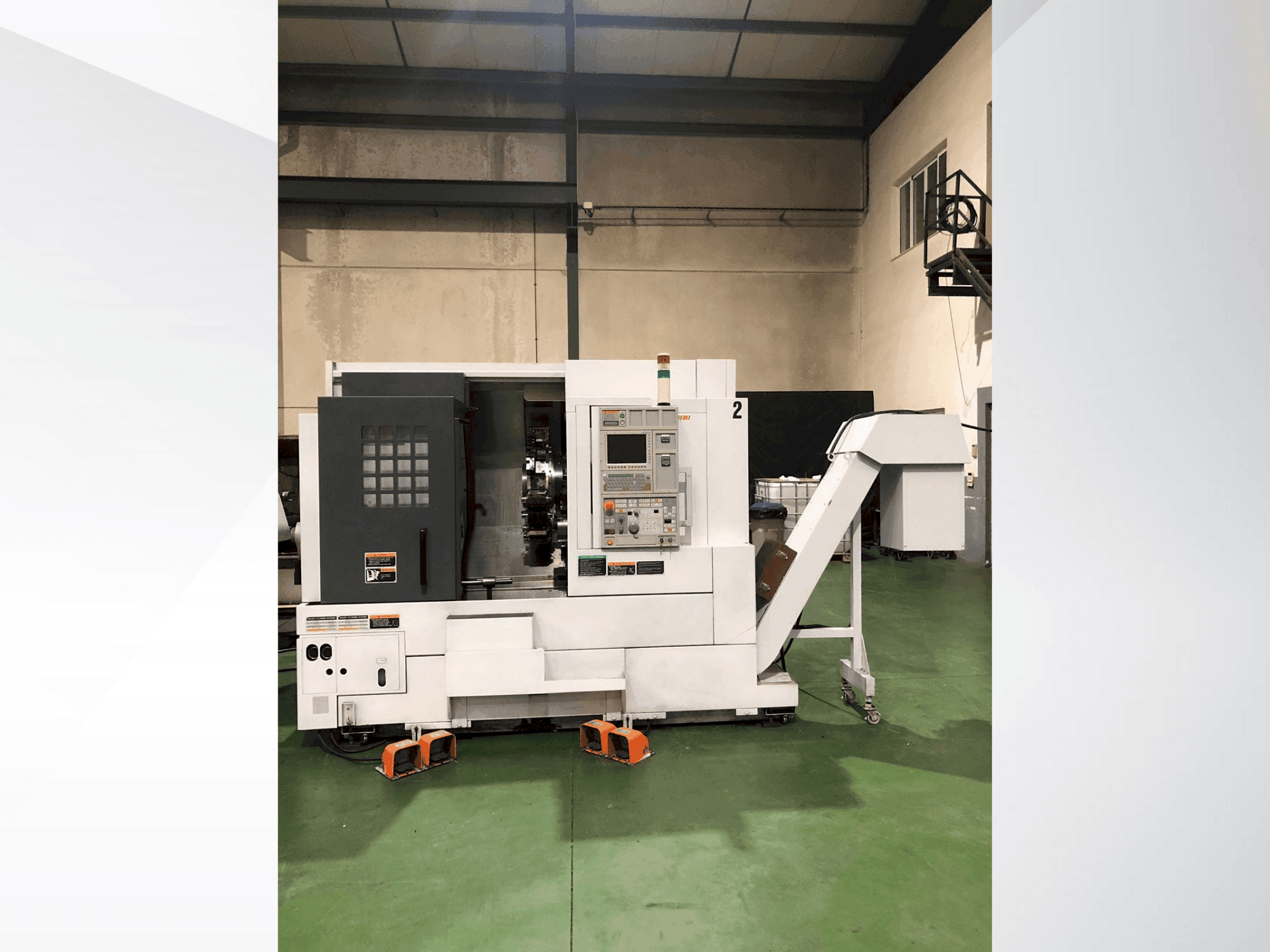

MORI SEIKI - NL2000SYES-TUR-MOR-2011-00003

Additional equipment

• Oil cooler for both spindles: Daikin / Conversational automatic programming system: Mapps 5 / Automatic load control and tool consumption monitoring / Communication ports: USB, PCMCIA card, and RS-232 / Automatic part catcher / Dual pedal for independent opening and closing of the main and sub-spindle chucks
• Side chip conveyor (hinged type) / Electrical transformer
• Documentation: parts list, electrical schematics, programming, and operation manual
• Machine currently in operation

Machine Benefits

Technical Machine Benefits

• Y-axis travel: ± 50 mm / c-axis on both spindles / rapid traverse speed: 30 m/min on x and z axes
• Bar capacity: 65 mm
• Type: turret with 20 stations, all of them motorized / turret indexing time: 0. 2 seconds
• Interface for bar feeder installation / extensive set of static and live tool holders / two arms for automatic tool measurement: renishaw
• Integrated main spindle motor: 15 kw / integrated sub-spindle motor: 11 kw / direct drive motor for live tools: 5. 5 kw
• Motor starting torque: 380 n·m / main spindle speed: 5000 rpm / live tool speed: 6000 rpm
• Box guideways on all axes / beltless and stepless motors / main spindle size: a2-6 / sub-spindle size: a2-5 / main spindle chuck: kitagawa b-208 (210 mm) with metric system / sub-spindle chuck: kitagawa b-165 (170 mm) with metric system

Extra Information

Machine still under power
