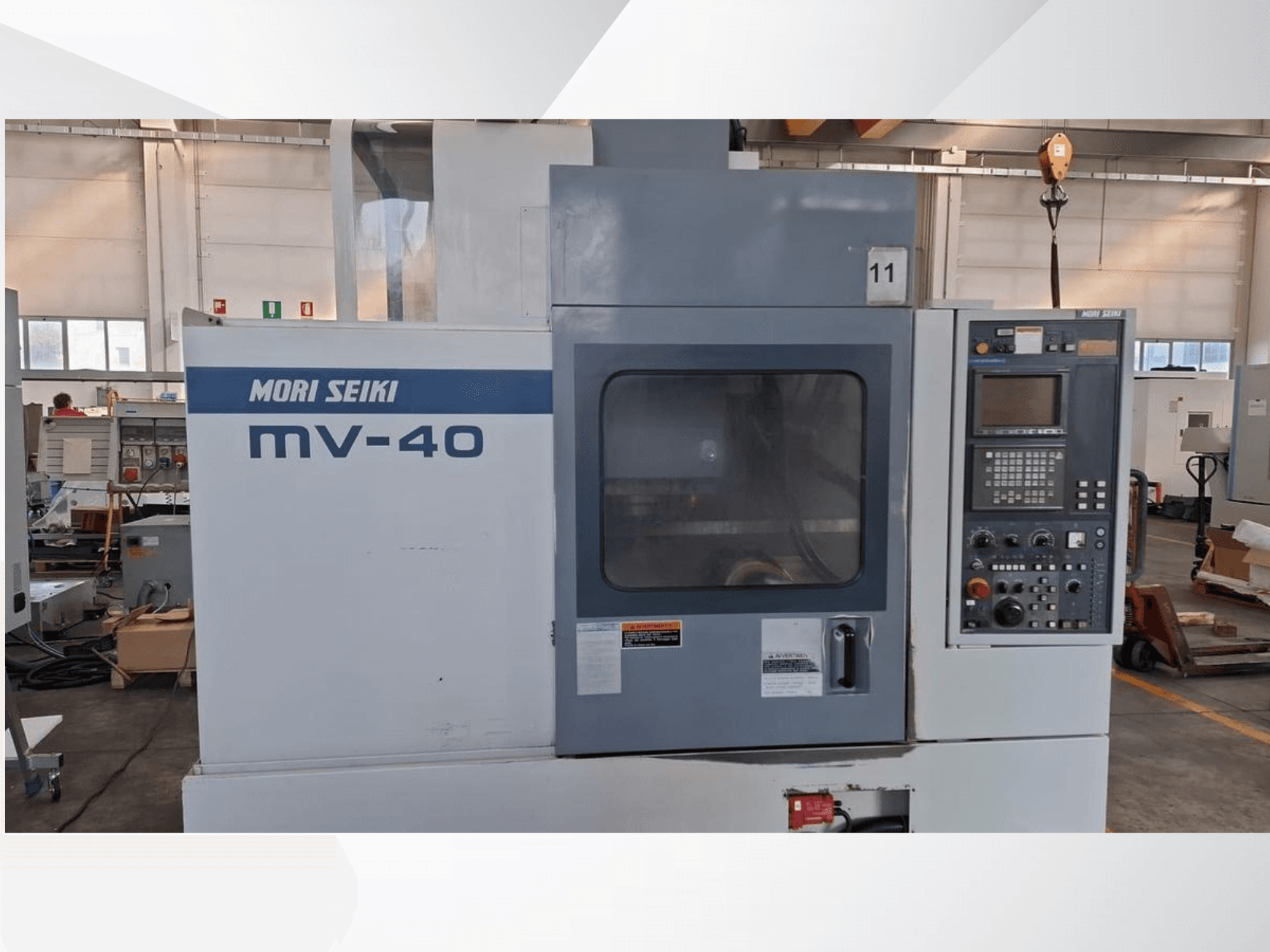

This 3-axis MORI SEIKI MV 40 was manufactured in 1999. It features an X-axis travel of 800 mm, Y-axis travel of 410 mm, and Z-axis travel of 510 mm. The machine includes a robust table size of 1,100 x 450 mm and a maximum table load of 700 kg. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI MV 40 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: MORI SEIKI
- year: 1999
- MODEL: MV 40
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - MORI SEIKI MV 40
Dimensions
- Machine Height: 2770 mm
- Machine Length: 2583 mm
- Machine Weight: 6300 kg
- Table Width: 2576 mm
Movement
- Number of Axes: 3
- X-axis Travel: 800 mm
- Y-axis Travel: 410 mm
- Z-axis Travel: 510 mm
Additional Information
Distance between table and spindle nose: 755 mm
Table dimensions: 1100 × 450 mm
Maximum table load: 700 kg
Tool holder: BT 40
Tool magazine capacity: 30 positions
Maximum tool diameter (with adjacent tools): Ø 80 mm
Maximum tool diameter (without adjacent tools): Ø 125 mm
Maximum tool length: 250 mm
Maximum tool weight: 8 kg
Rapid traverse X–Y: 20000 mm/min
Rapid traverse Z: 15000 mm/min
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
