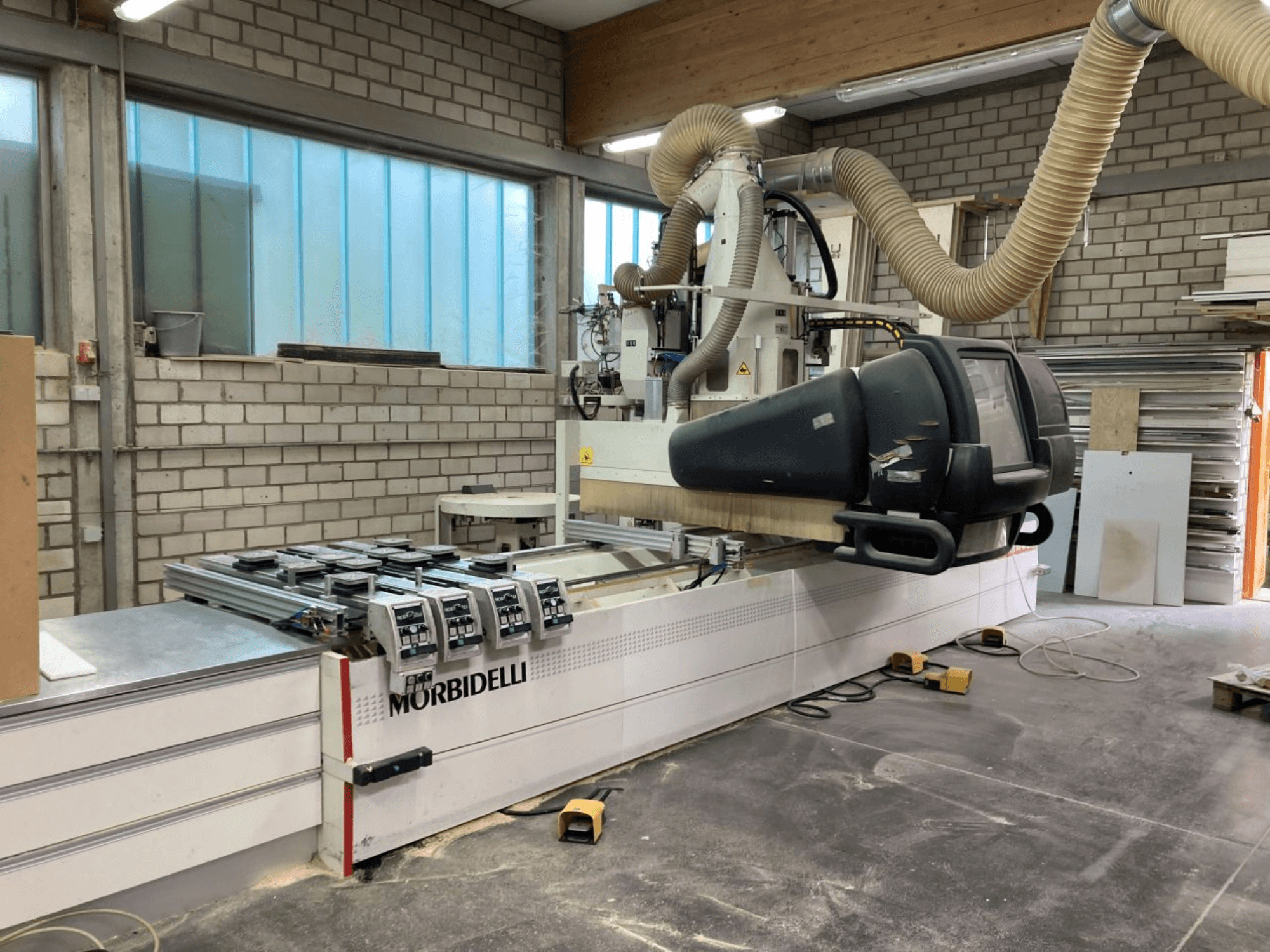

MORBIDELLI CNC machine in a workshop, front view with control panel, dust extraction system, and wood piece positioned.
MORBIDELLI CNC machine in a workshop, front view with control panel, dust extraction system, and wood piece positioned.

Thank you for your visit

This machine was recently sold.

Browse similar machines

MORBIDELLI - Author X5DE-CNC-MOR-2006-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis MORBIDELLI Author X5 was manufactured in 2006. It features a machining area of 4400x1300 mm, with programmable speeds up to 40 m/min in the X-axis, 45 m/min in the Y-axis, and 22.5 m/min in the Z-axis. It includes a 6-station tool changer, rear tool magazine with 24 positions, and a vacuum pump of 250 CBM/H. Consider the opportunity to buy this MORBIDELLI Author X5 CNC Wood Machining Centre. Contact us for more information about this machine.

Overview

  • brand: MORBIDELLI
  • year: 2006
  • MODEL: Author X5
  • application type: CNC Wood Machining
  • Location: Germany
  • machine type: CNC Wood Machining Centre

Technical Information - MORBIDELLI Author X5

Movement

  • Number of Axes: 5

Additional Information

  • Machining area (1 workpiece): 4400 x 1300 mm

  • Programmable speed X: 40 m/min

  • Programmable speed Y: 45 m/min

  • Programmable speed Z: 22.5 m/min

  • Vector speed: 6 m/min

  • Automatic central lubrication via CNC control

  • 6-station tool changer

  • Rear tool magazine HSK63 with 24 positions

  • CNC control with PC Office

  • Drilling unit with 30 spindles and 4+2 horizontal spindles

  • Vertical milling unit 15 HP HSK63 1500/18000 manual

  • Electric spindle 15 kW

  • Vector axis

  • X-axis drive with rack and pinion

  • Drill head speed adjustable via machine inverter

  • Second inverter

  • Reinforced inverter

  • Front stop row at 1170 mm, each stop individually selectable

Additional equipment

  • Chip conveyor belt

  • 8 supports TV system L=1300 mm (without suction cups)

  • 24 x TV vacuum suction cups X=145 / Y=145, H=50 mm

  • 8 x TV vacuum suction cups X=145 / Y=55, H=50 mm

  • 8 x positioning aids TV table Morbidelli

  • Suction cup positioning by laser

  • 2 x additional side middle stops

  • 2 x additional side stops

  • Vacuum pump 250 CBM/H

  • Deeper extraction nozzles H=3000 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
