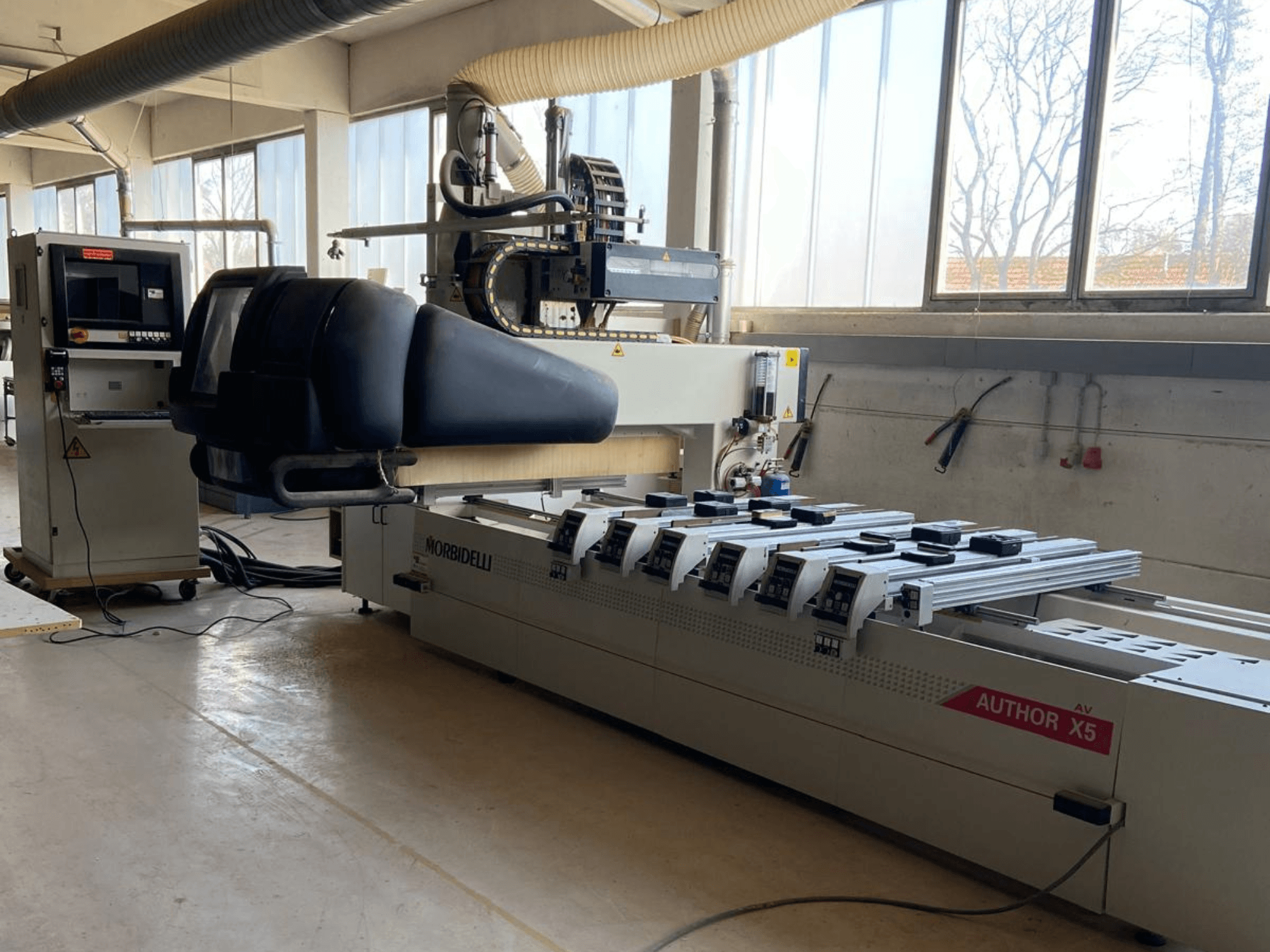

MORBIDELLI - Author X5DE-CNC-MOR-2008-00001

• Voltage: 400 V

• Frequency: 50 Hz

• Current: 48 A

• Power supply: 400 V, 50/60 Hz

• Power consumption: 28 kVA

• Working field: X 3050 mm, Y 1348 mm, Z 400 mm

• Rapid speeds: X 50 m/min, Y 45 m/min, Z 22 m/min

• Drive system: ball screw in X/Y/Z axes

• Pendulum processing: yes

• Spindle: 5-axis Morbidelli milling spindle

• C axis rotation: 640 degrees

• B axis rotation: +/- 100 degrees

• Inverter power: 18 kW

• Tool holder: HSK 63F

• Minimum distance table to spindle: 40 mm

• Tool changer: rear tool room in X axis

• Tool changer positions: 12

• Max tool diameter: 240 mm

• Max tool length: 220 mm

• Max tool weight: 8 kg

• Work table: vacuum clamping system

• Vacuum pressure: 3000 Pascal

• Control system: NUM 1040

• Operating system: Windows XP Professional

• Processor: 32-bit Pentium

• RAM: minimum 256 MB

• Hard disk: minimum 2 GB

• Screen: 17 inch

• Interface: RS232

• Air pressure: 6 to 8 bar

• Air consumption: 250 NL/min

• Dust extraction connection: 250 mm

• Air speed extraction: 30 m/s

• Machine dimensions: approx. 5300 x 2200 x 2500 mm

• Required space: approx. 6300 x 4000 x 3000 mm

• Safety equipment: CE-compliant protection system

• Central lubrication: automatic

• Drilling head: 12 + 6 spindles

• Vertical spindles (Y direction): 5

• Vertical spindles (X direction): 8

• Horizontal spindles (X direction): 4

• Horizontal spindles (Y direction): 2

• Vertical spindle pitch: 32 mm

• Horizontal spindle pitch: 64 mm

• Drilling speed: 4000 rpm

• Drilling unit power: 2.2 kW

• Drilling tool holder: M10

• Pneumatic stroke: 60 mm

Additional equipment

• Chip conveyor (included)

• Vacuum pump 250 m3/h
