Mitsubishi Electric - SG12RLT-EDM-MIT-2020-00001

Rs. 9,433,535
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Mitsubishi Electric SG12M die-sinking EDM machine was manufactured in 2020. It features a robust 3750 kg weight, with a maximum workpiece weight capacity of 1000 kg. The machine includes a dielectric fluid chiller unit and a dual paper filter system, ensuring optimal operational conditions. The working tank has an automatic elevation system and hinji open-door for ease of use. If you are looking to get high-quality die-sinking capabilities, consider the Mitsubishi Electric SG12M machine we have for sale. Contact us for more information.

Overview

  • brand: Mitsubishi Electric
  • year: 2020
  • MODEL: SG12R
  • application type: EDM
  • Location: Lithuania
  • machine type: Die-Sinking EDM Machine

Technical Information - Mitsubishi Electric SG12R

Dimensions

  • Machine Depth: 1920 mm
  • Machine Height: 2420 mm
  • Machine Weight: 3750 kg

Movement

  • X-axis Travel: 400 mm
  • Y-axis Travel: 300 mm
  • Z-axis Travel: 300 mm

Additional Information

Machine Benefits

Technical Machine Benefits

  • Distance between table and electrode mounting surface: 200-500 mm / 300-600 mm
  • Max. Electrode weight: 50 kg
  • Working tank method: automatic elevation system / hinji open-door
  • Working tank inner dimensions (w x d x h): 950 x 700 x 450 mm / 1050 x 700 x 450 mm
  • Fluid level adjustment range (from top of table): 60-400 mm / 210-400 mm
  • Max. Workpiece dimensions (w x d x h): 900 x 650 x 350 mm
  • Table dimensions (w x d): 700 x 500 mm
  • Distance between floor and top of table: 900 mm

Extra Information

Media Dielectric Fluid Reservoir Tank Capacity: 360 liters / 550 liters Initial Dielectric Fluid Supply Amount: 470 liters / 590 liters Filtering System: Paper filter x 2 Dielectric Fluid Chiller Unit: Included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing

Products related to Mitsubishi Electric SG12R

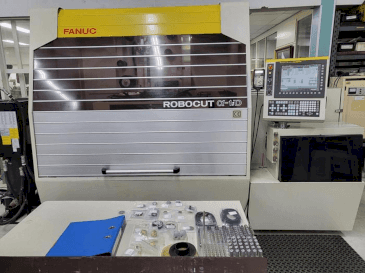

FANUC Robocut alpha-C400iC die-sinking EDM machine in front view, featuring a yellow workpiece chamber and control panel.
