➤ Used MILLTRONICS VM24 For Sale | gindumac.com

Show in original language

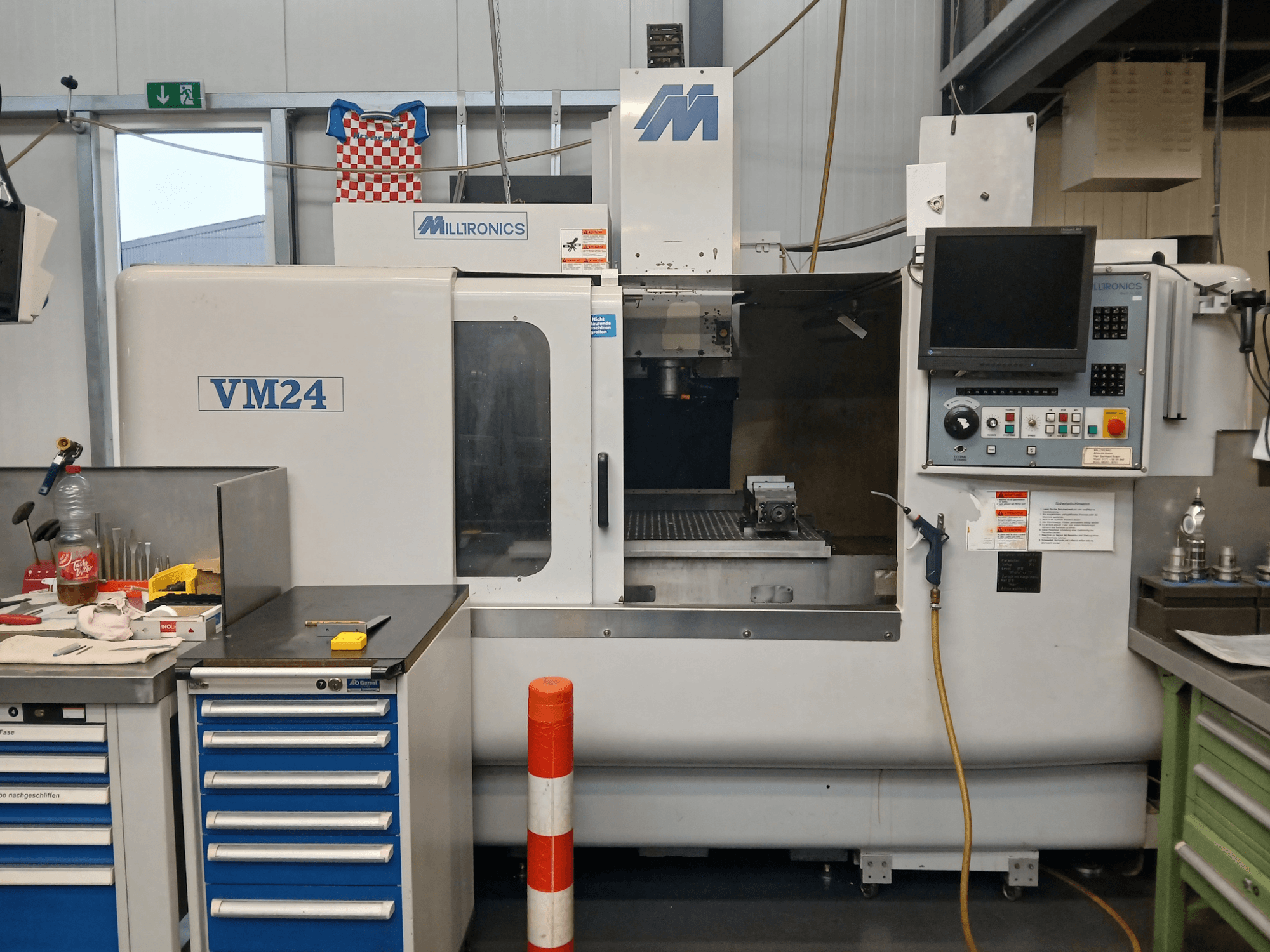

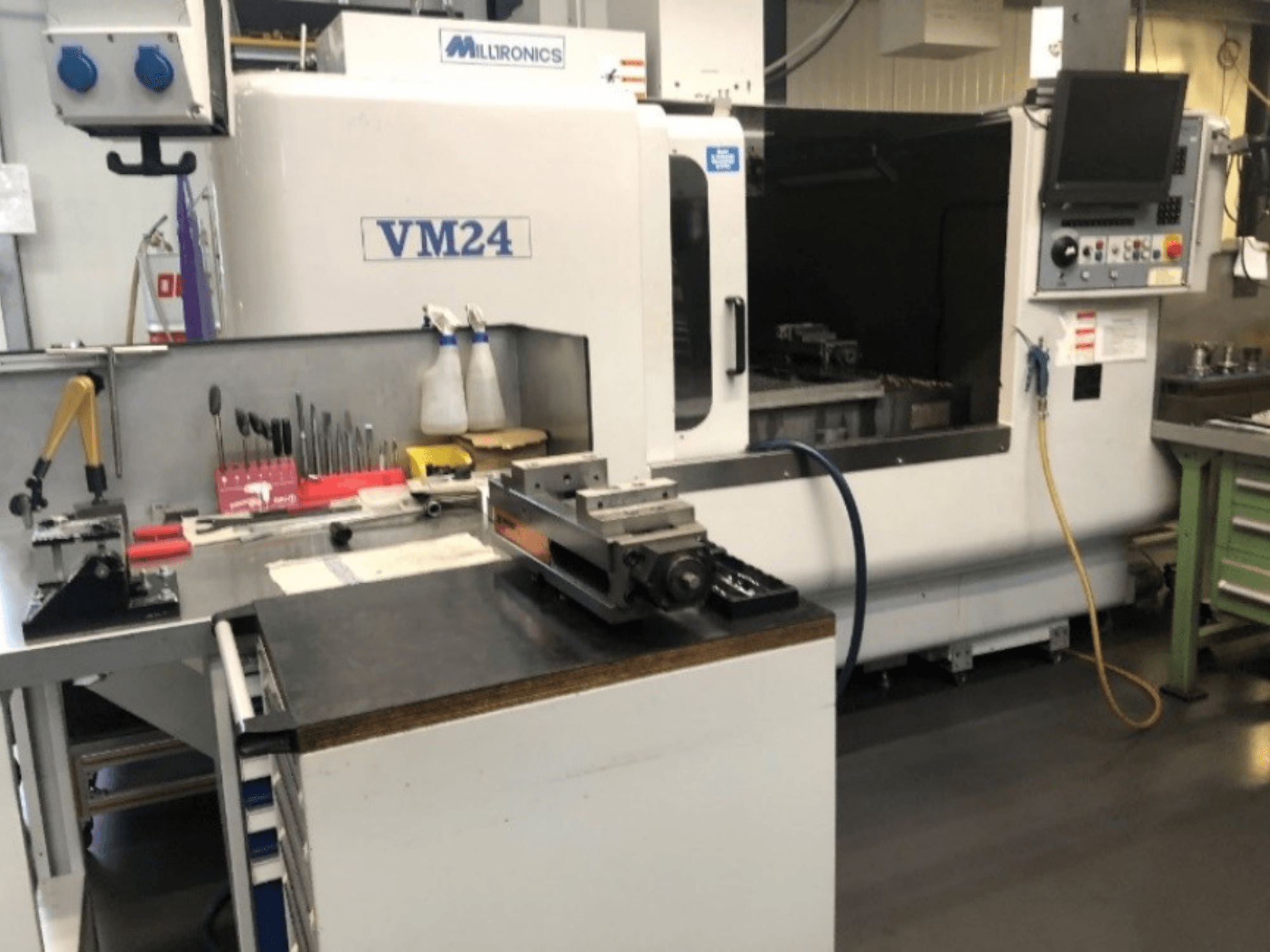

This 3-axis MILLTRONICS VM24 vertical machining center was manufactured in 2001. It features a table size of 610 x 1140 mm, X/Y/Z travel of 1016/610/610 mm, and a spindle motor with 7.5/11 kW power. The machine supports a maximum workpiece weight of 900 kg and includes a 20-station tool changer. Ideal for detailed machining tasks. Contact us for more information about this machine.

Overview

brand: MILLTRONICS
year: 2001
MODEL: VM24
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - MILLTRONICS VM24

Dimensions

Machine Weight: 5000 kg

Movement

Number of Axes: 3
X-axis Travel: 1016 mm
Y-axis Travel: 610 mm
Z-axis Travel: 610 mm

Technical Specification

Max. Tool Weight: 5.5 kg
Spindle Power: 11 kW
Spindle Speed: 5000 RPM
Taper Size: SK 40

Additional Information

Table size: 610 x 1140 mm
Distance between column and spindle: 635 mm
Distance between table and spindle: 100–710 mm
Max. workpiece weight: 900 kg
T-slots: 5/16 mm
Spindle taper: SK40/BT / DIN 69871
Gearbox (manual): 2 stages
Spindle speeds: Infinitely variable from 100–5000 rpm
Vector-controlled frequency converter: 150–6000 rpm
THK linear guides with very high rigidity, digital AC feed drives
Rapid traverse X/Y/Z axes: 20 m/min
Feed rate: 2.5–7500 mm/min
Positioning accuracy: ±0.010 mm
Repeatability: ±0.005 mm per 250 mm increment
Tool changer: plate with 20 stations
Max. tool diameter: 100 mm
Tool change time (chip-to-chip): approx. 8 seconds
Coolant system: 95 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
