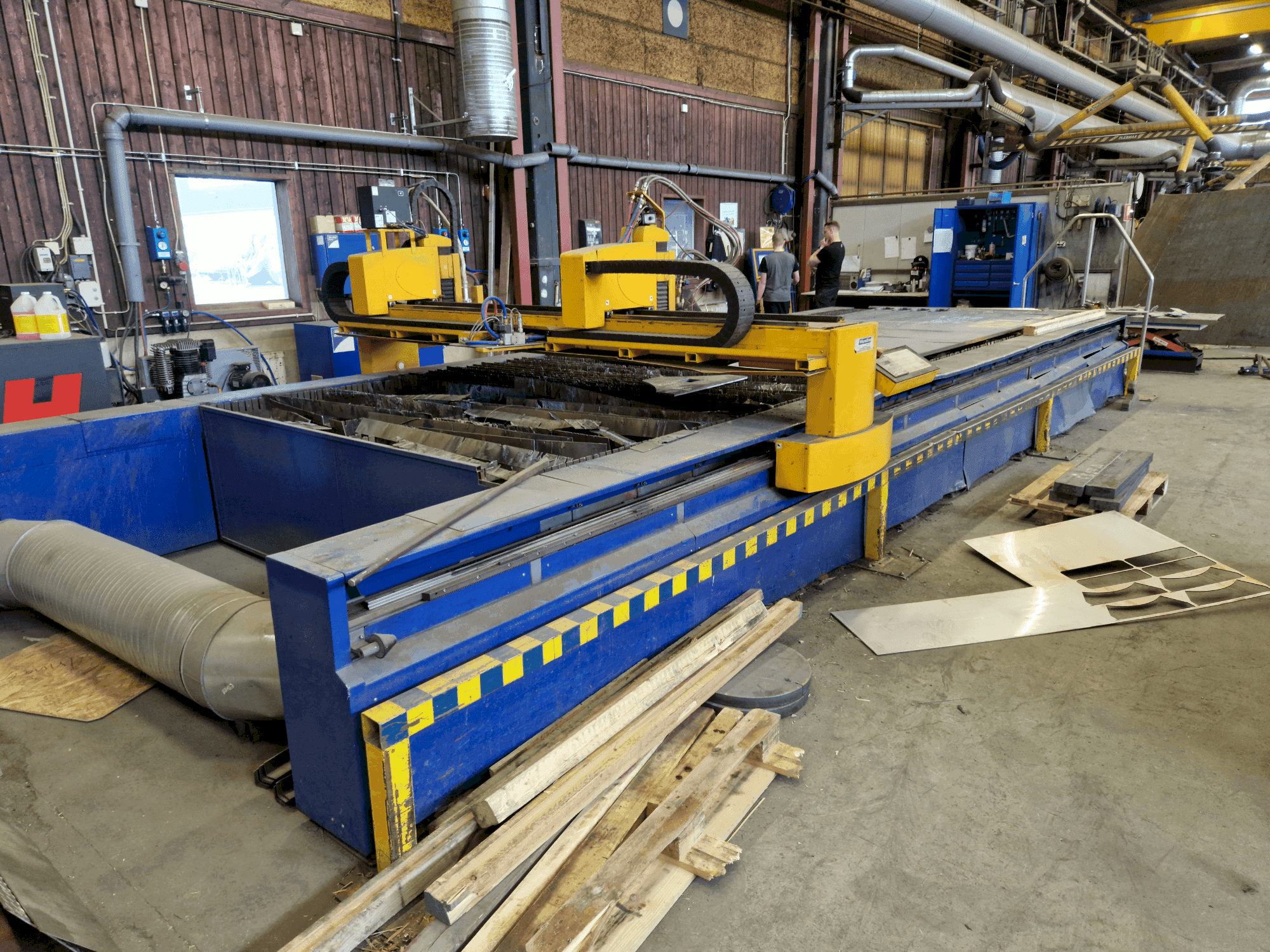

MicroStep - PLS 7501.25PGLT-CUT-MIC-2008-00001

• Number of portals: 1

• Number of Z-axes: 2

• Number of burners: 2

• Max cutting thickness: 50 mm

• Working speeds: 0–100 mm/s

• Working field – longitudinal movement: 7500 mm

• Working field – cross movement: 2500 mm

• Working field – vertical movement (plasma): 150 mm

• Working field – vertical movement (gas): 200 mm

• Working field – vertical movement (gas-rotator): 200 mm

• Drilling head BEM 12 vertical movement: 80 mm

• Max working zone width: 4000 mm

• Max working zone length: 35,000 mm

• Max deviation longitudinal: 0.5 mm / 3000 mm

• Max deviation cross: 0.5 mm / 2500 mm

• Electrical coverage (mechanical part): IP 43

• Drives (Control Technique):

  • Longitudinal axis: 2 × DCM 6C 30/14 A1

  • Cross axis: 2 × DCM 3B 35/06 A1

  • Vertical axis: 2 × DCM 2C 30/03 B1

• Gear ratios:

  • Longitudinal axis (belt): i = 14.81483886 mm/rev

  • Cross axis (belt): i = 13.33335498 mm/rev

  • Vertical axis (belt + screw): i = 2 mm/rev

• Ambient temperature: 5–40 °C

• Max relative air humidity: 90% at 20 °C

• Atmospheric pressure: 84–107 kPa

• Dustiness: 200 mg/m³

• Environment type: Common (STN 330300, exception operational temps N32)

Additional equipment

• Plasma source: 1 × HPR 260 AGC (58 mm)

• Gas burner: 1 × acetylene (Bir), including gas rotator

• Drilling head: BEM 12
