- MICROCUT V-20G Vertical Machining Center

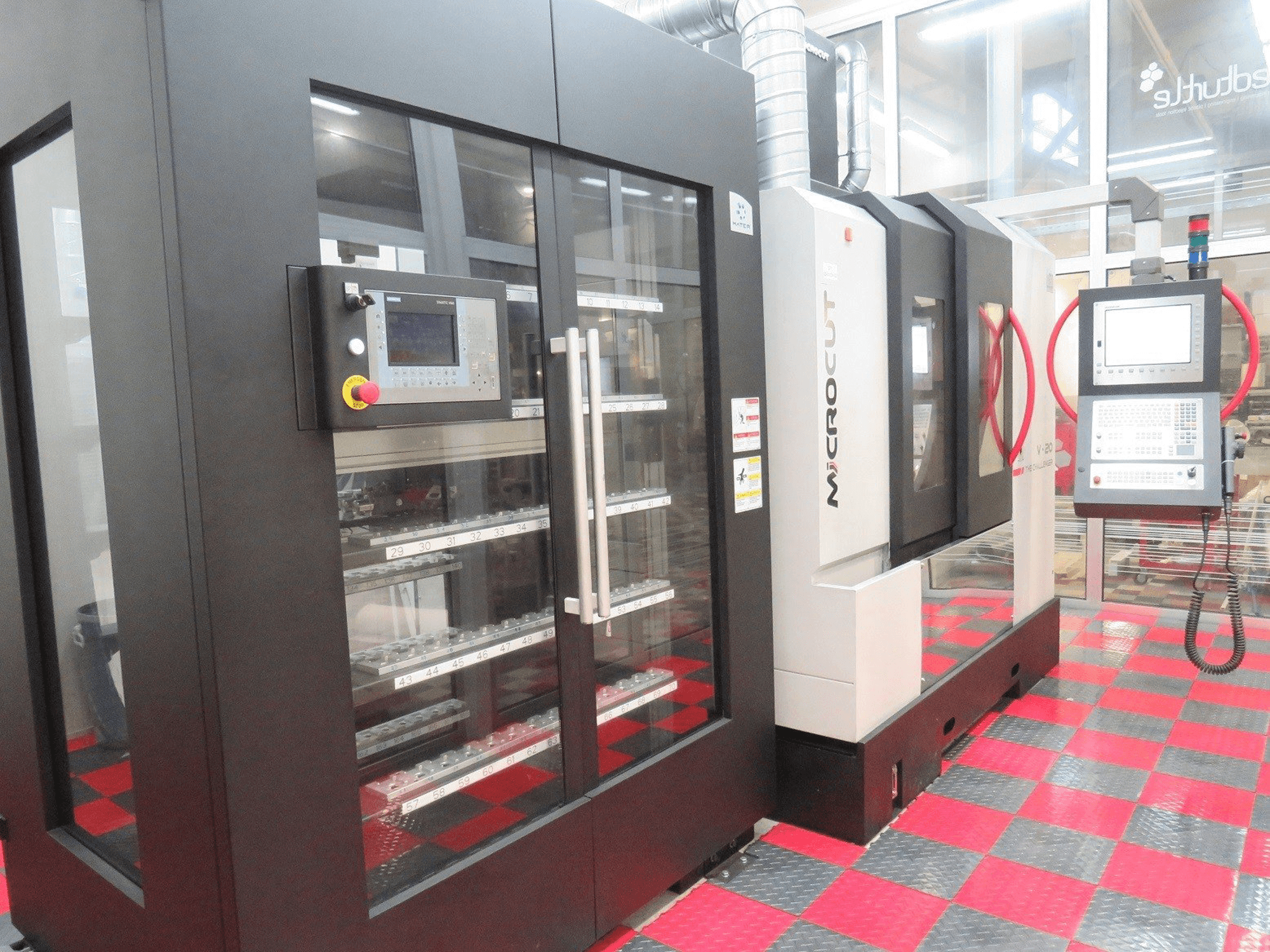

This MICROCUT V-20G Vertical Machining Center was built in the year 2014 in Taiwan. It is equipped with a Heidenhain 530 control unit. It has 10040 spindle hours. This machine incorporates a spindle speed up to 25000 rpm.
Overview
- brand: MICROCUT
- year: 2014
- MODEL: V-20G
- production hours: 10040
- application type: Milling
- Location: Portugal
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Heidenhain
- GINDUMAC ID: PT-MIL-MIC-2014-00001
Technical Information
General Data
- Measurements width: 2254 mm
- Measurements depth: 2644 mm
- Measurements height: 2922 mm
- Machine weight: 5000 kg
Control Unit
- Brand: Heidenhain
- Model: 530
Main drive
- Spindle speed range: 25000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 800 mm
- Y-AXIS Movement: 500 mm
- Z-AXIS Movement: 500 mm
Table
- Outer length: 900 mm
- Outer width: 520 mm
- Height adjustment: 870 mm
- Table load: 450 kg
Additional Information
- Technical Machine Benefits:
- - Measuring and centering probes: renishaw ts27
- - Tool changer capacity: 24 + 1 hsk 30
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
