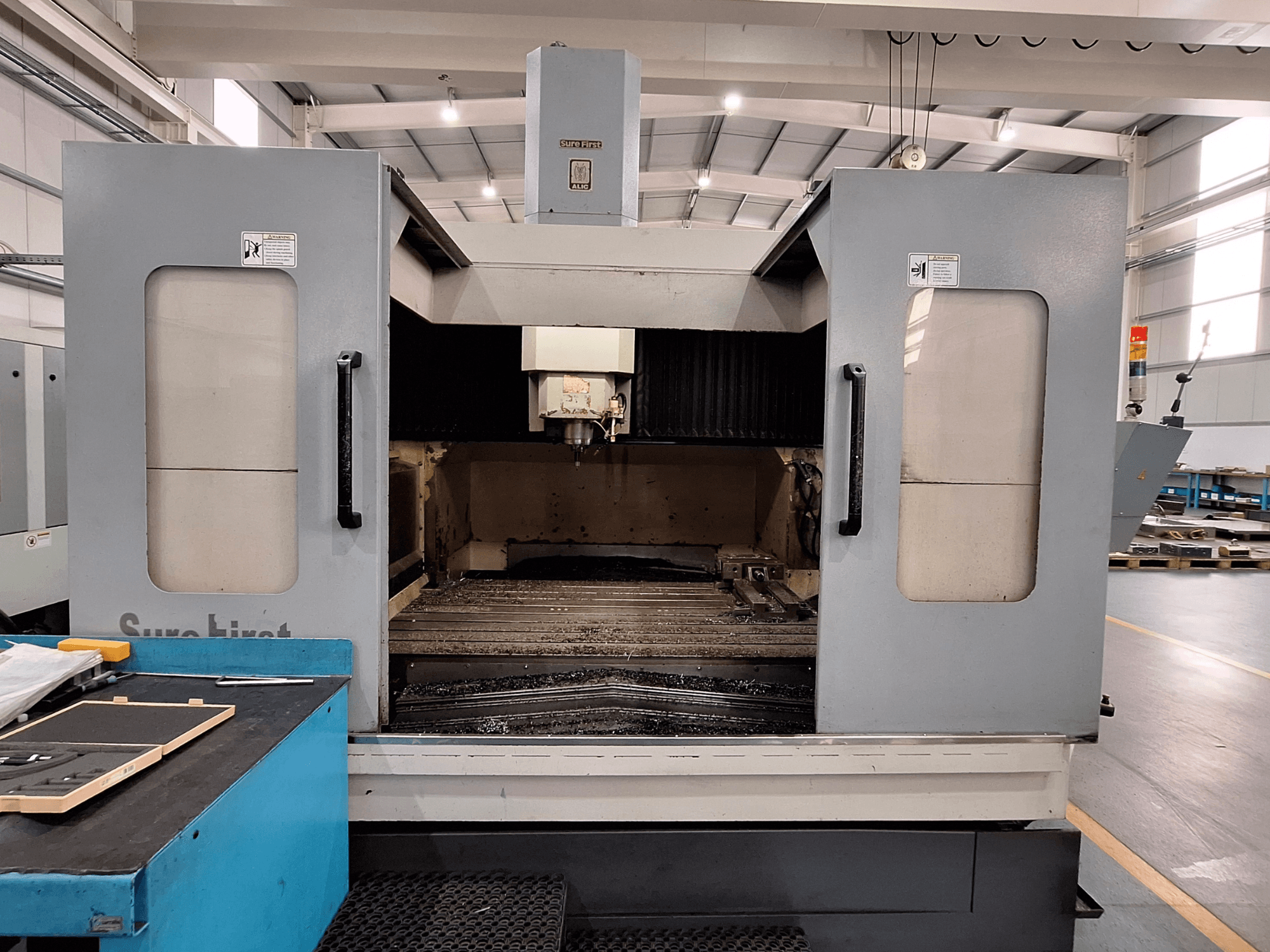

This 3-axis Sure First QM-1836 was manufactured in 2011. It features a table dimension of 1800 x 1200 mm and impressive axes strokes of 1800 x 1300 x 600 mm. The machine has a maximum rotation speed of 15000 rpm and a forward speed of 20000 mm/min. If you are looking to get high-quality machining capabilities, consider the Sure First QM-1836 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Sure First
- year: 2011
- MODEL: QM-1836
- application type: Milling
- Location: Portugal
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - Sure First QM-1836
Control Unit
- Control Brand: HEIDENHAIN
Dimensions
- Machine Height: 1800 mm
- Machine Length: 1300 mm
- Machine Weight: 2000 kg
- Machine Width: 600 mm
- Table Load: 2000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1800 mm
- Y-axis Travel: 1300 mm
- Z-axis Travel: 600 mm
Technical Specification
- Spindle Power: 20 kW
- Spindle Speed: 15000 RPM
Additional Information
Table dimensions (X/Y): 1800 x 1200 mm
Forward speed: 20000 mm/min
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
