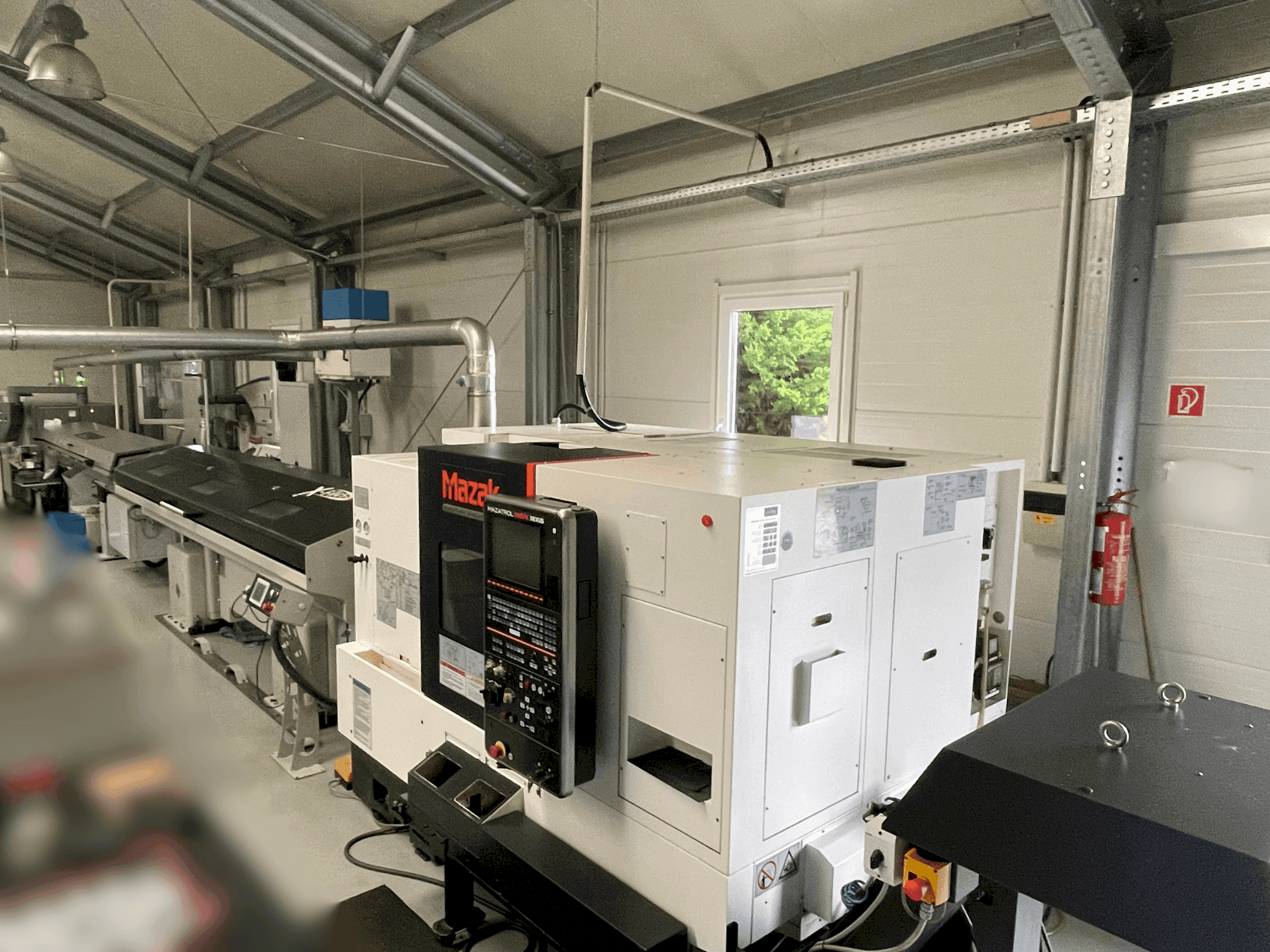

Front view of Mazak Quick Turn Nexus 200-II MS machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Quick Turn Nexus 200-II MS

Photo Gallery

Mazak - Quick Turn Nexus 200-II MSHU-TUR-MAZ-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak Quick Turn Nexus 200-II MS | Horizontal Lathe

Show in original language

This 4-axis Mazak Quick Turn Nexus 200-II MS horizontal turning machine was manufactured in 2013. It features a 12-position driven turret head, main spindle speed of 5000 rpm, and a counter spindle speed of 6000 rpm. The machine includes a Mazatrol Matrix Nexus controller and a high-performance cooling system. If you are looking to get high-quality turning capabilities, consider the Mazak Quick Turn Nexus 200-II MS machine we have for sale. Contact us for more information.

Overview

brand: Mazak
year: 2013
MODEL: Quick Turn Nexus 200-II MS
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
control unit brand: MAZATROL

Technical Information - Mazak Quick Turn Nexus 200-II MS

Control Unit

Brand: MAZATROL
Model: MATRIX NEXUS

Main drive

Spindle speed range: 5000 1/MIN
Main motor power: 26 kw

Movement

X-AXIS Movement: 230 mm
X-AXIS Rapid traverse: 33.0 m/min
Z-AXIS Movement: 575 mm
Z-AXIS Rapid traverse: 33.0 m/min

Turret

Number of tool slots: 12

Additional Information

Additional equipment

Standard tool package included
Specific tool holders and sockets provided
Coolant tank volume: 190 L
High performance cooling system - 520W
Complete cooling system

Machine Benefits

Qualitative Machine Benefits

Includes services such as relocation detector, token system, and chuck opening/closing feedback
Side chip conveyor preparation
Intelligent thermal field and security area
Mazak live voice help
Voltage converter for the european market
Health and safety features including door opening control and full machine enclosure
Comprehensive nc controller features with 600 user macros and usb i/f ports

Technical Machine Benefits

Maximum torque: 435 nm
Maximum turning diameter: 675 mm
Turning length: 575 mm
Maximum machinable diameter: 380 mm
Size of bar material that can be machined: 77 mm
Tool size (external turning): 25 mm²
Tool size (internal diameter turning): Ø40 mm
Tool change time (one step): 0. 2 s

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
