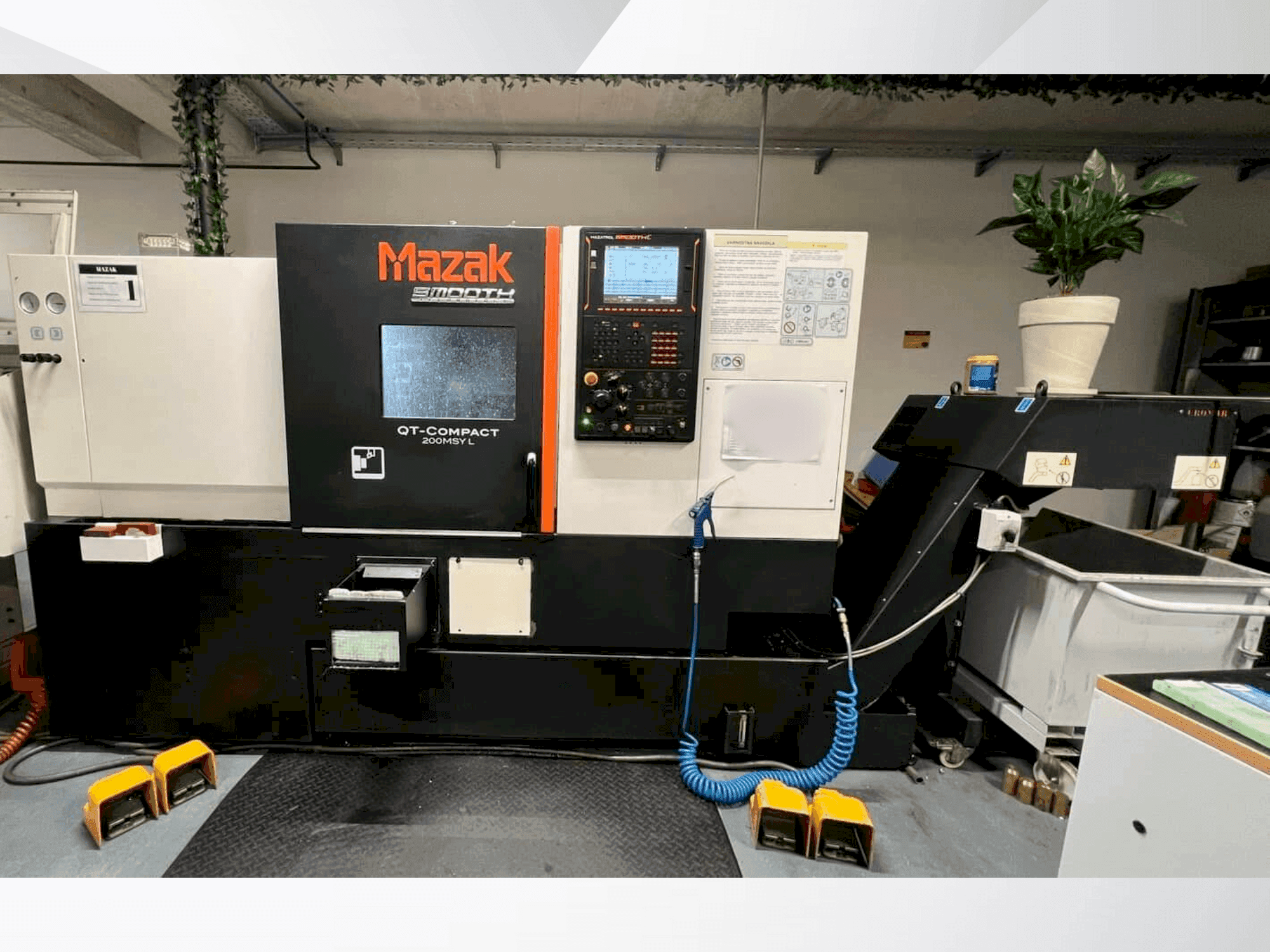

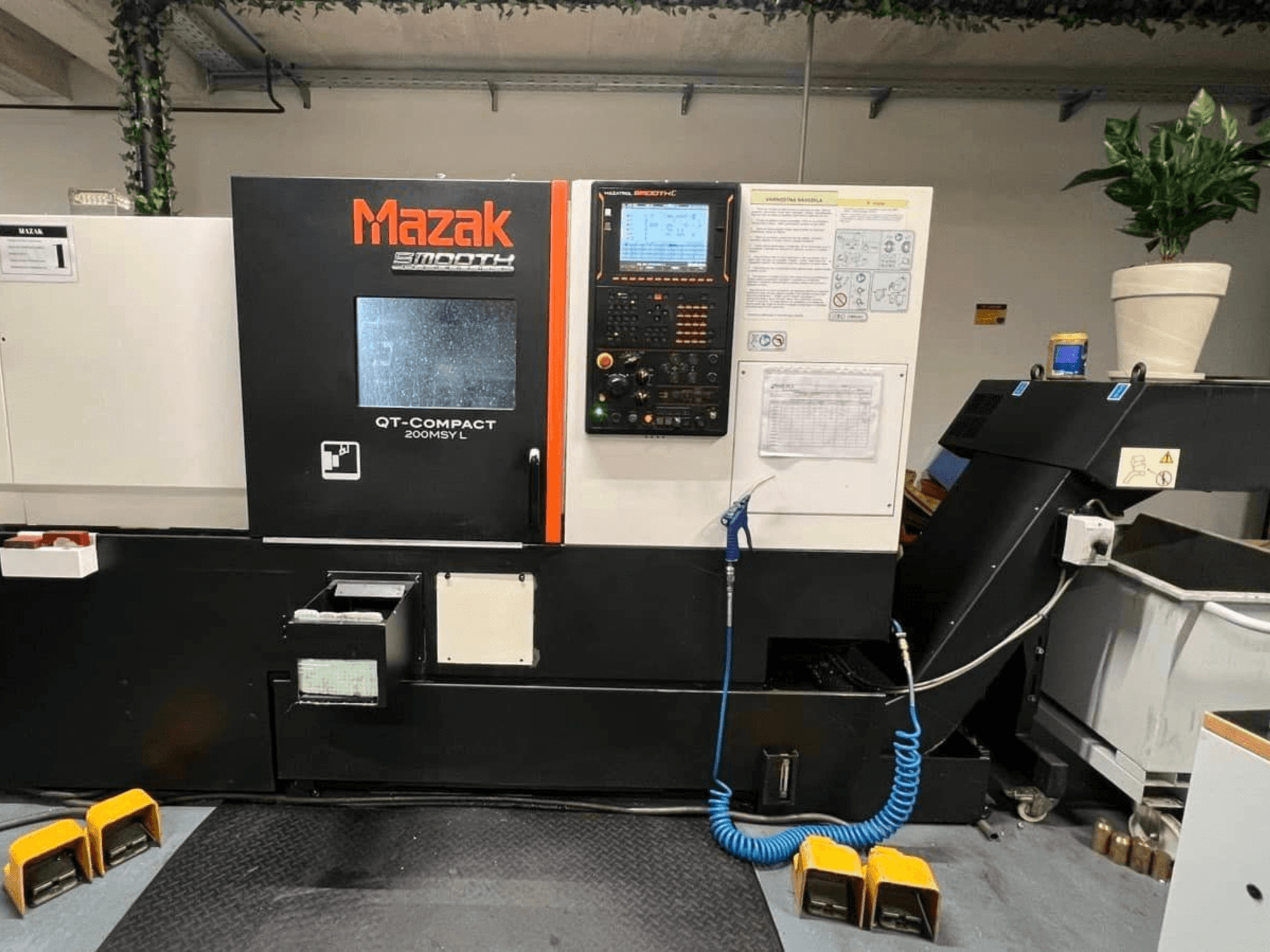

Mazak QUICK TURN COMPACT 200 MSY L

Photo Gallery

Mazak - QUICK TURN COMPACT 200 MSY LSI-TUR-MAZ-2018-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak QUICK TURN COMPACT 200 MSY L | Lathe

Show in original language

This 4-axis Mazak QUICK TURN COMPACT 200 MSY L was manufactured in 2018. It features a maximum swing of 695 mm and a machining diameter of 380 mm. Equipped with a Mazatrol SmoothG CNC control system, it ensures precision and efficiency. The main spindle supports up to 5000 rpm, while the second spindle reaches 6000 rpm. A great opportunity to buy this Mazak QUICK TURN COMPACT 200 MSY L lathe. Contact us for further details.

Overview

brand: Mazak
year: 2018
MODEL: QUICK TURN COMPACT 200 MSY L
application type: Turning
Location: Slovenia
machine type: Horizontal Turning Machine
control unit brand: MAZATROL

Technical Information - Mazak QUICK TURN COMPACT 200 MSY L

Control Unit

Control Brand: MAZATROL
Control Model: Mazatrol SmoothG CNC

Movement

X-axis Travel: 234 mm
Y-axis Travel: 100 mm
Z-axis Travel: 625 mm

Technical Specification

Max. Workpiece Diameter: 695 mm
Spindle Speed: 5000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

1. Capacity:

- Maximum Swing: 695 mm

- Maximum Machining Diameter: 380 mm

- Maximum Bar Work Capacity: 65 mm

2. Spindle:

- Main Spindle Chuck Size: 8 inches

- Main Spindle Maximum Speed: 5000 rpm

- Second Spindle Chuck Size: 6 inches

- Second Spindle Maximum Speed: 6000 rpm

3. Turret:

- Number of Tools: 12

- Maximum Speed: 5000 rpm

4. Axes Travel:

- X Axis: 234 mm

- Y Axis: 100 mm

- Z Axis: 625 mm

- W Axis: 585 mm

5. Control System:

- Mazatrol SmoothG CNC

Installed Options : EIA / ISO programming Spiral machining EIA 3D compensation Rotation function Geometric functions Scaling External data I/O Shape compensation Thread cutting cycle Sub C-axis control Inverse time feed Polar coordinate input G54.1 additional work offsets Synchronous mill tapping Variable 600 macro sets Cylinder & polar coordinate interpolation EIA helical tap cycle EIA pattern cycle Seamless corner control Variable acceleration control Rapid overlap Lead error compensation

Machine Hours : Power on time: 12,929 h Auto operation time: 17,565 h Auto cutting time: 15,375 h

Equipment included: Turrets: 2 × revolver head – one on each side of the machine Driven tools: 1 × driven tool on the Z axis 1 × driven tool on the X axis Tool holders: Fixed holders for drilling Fixed holders for external turning

Extra Information

Full equipped version with C axis / Y axis / Subspindle / Long bed

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
