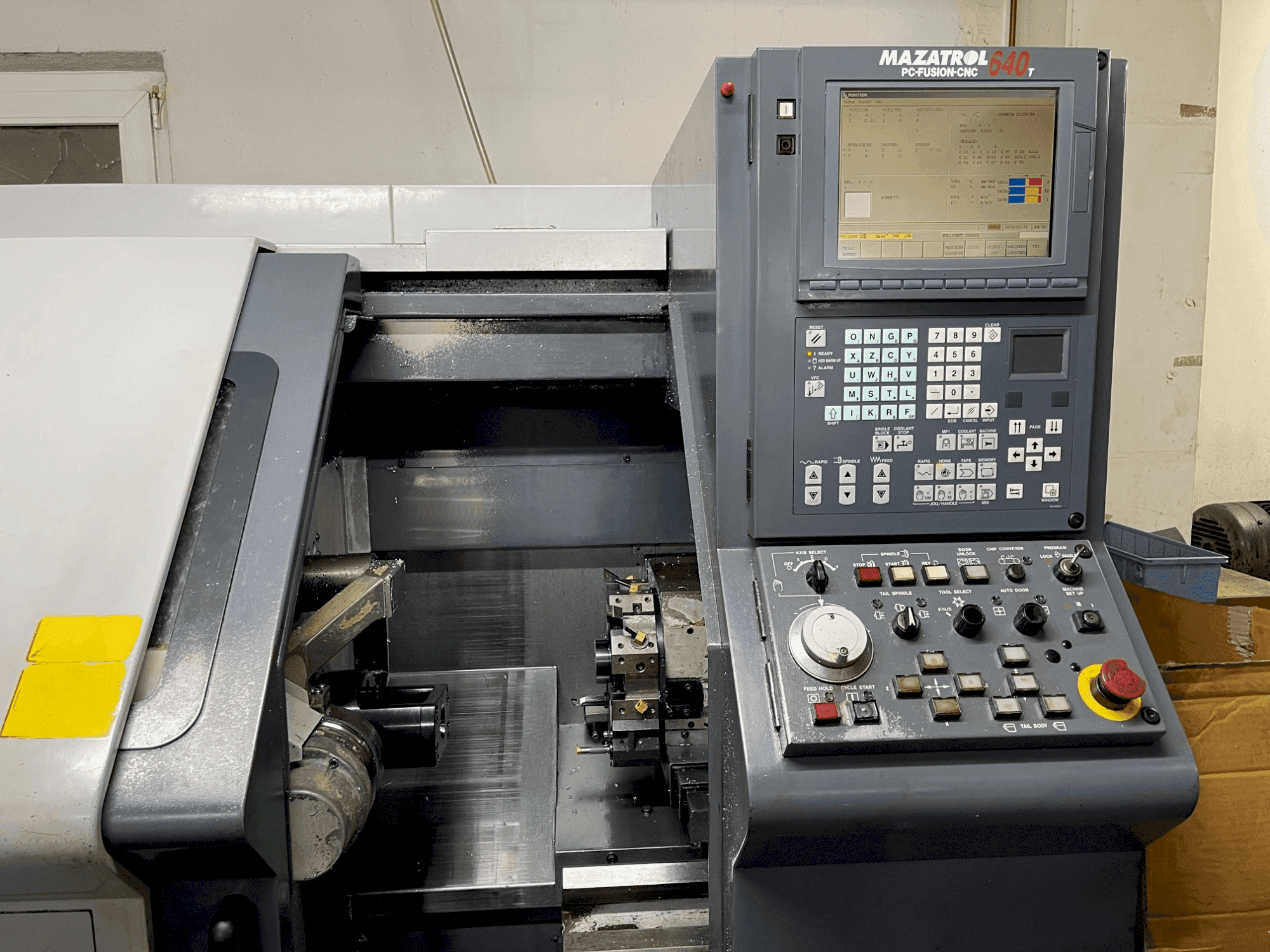

Front view of Mazak QUICK TURN 10  (2000)  machine


Mazak - QUICK TURN 10


Rs. 1,542,750

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

Click to chat on WhatsApp
Show in original language

This 2-Axis lathe was manufactured in 2000. The MAZAK QUICK TURN 10 features a standard machining diameter of 100mm, a turning length of 256mm, and supports an 8-position tool turret. Key specifications include a main spindle speed of 60-6000 rpm, rapid traverse speeds up to 30.5 m/min (X) and 33 m/min (Z), and a hydraulically operated 3 cam chuck system. Ideal for detailed and precise machining tasks, the MAZAK QUICK TURN 10 machine we have for sale is robust and reliable. For more details, contact us today.


  • brand: Mazak
  • year: 2000
  • production hours: 17818
  • application type: Turning
  • Location: Germany
  • machine type: Lathe
  • availability: Immediately
  • GINDUMAC ID: DE-TUR-MAZ-2000-00002

Technical Information

General Data

  • Machine weight: 2750 kg

Main drive

  • Number of spindles: 1
  • Spindle speed range: 60-6000 1/MIN
  • Spindle bore: 50mm
  • Number of axis: 2


  • X-AXIS Rapid traverse: 30.5 m/min
  • Z-AXIS Rapid traverse: 33 m/min


  • Number of turrets: 1


  • Number of stations: 8

    Additional equipment

    • - Tool holders as basic equipment included.

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Working area: max. Swing diameter 300mm, standard machining diameter 100mm, turning length 256mm
        • - Constant torque 96 nm
        • - Tool turret: standard 8-position design, holds mk1/mk2 drills
        • - Traverse path: x 100mm, z 290mm
        • - Hydraul. 3 cam chucks, complete coolant system, tailstock mk4 travelling distance 325mm
      • Qualitative Machine Benefits:
        • - Tool calibration sensor / automatic measuring arm.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
