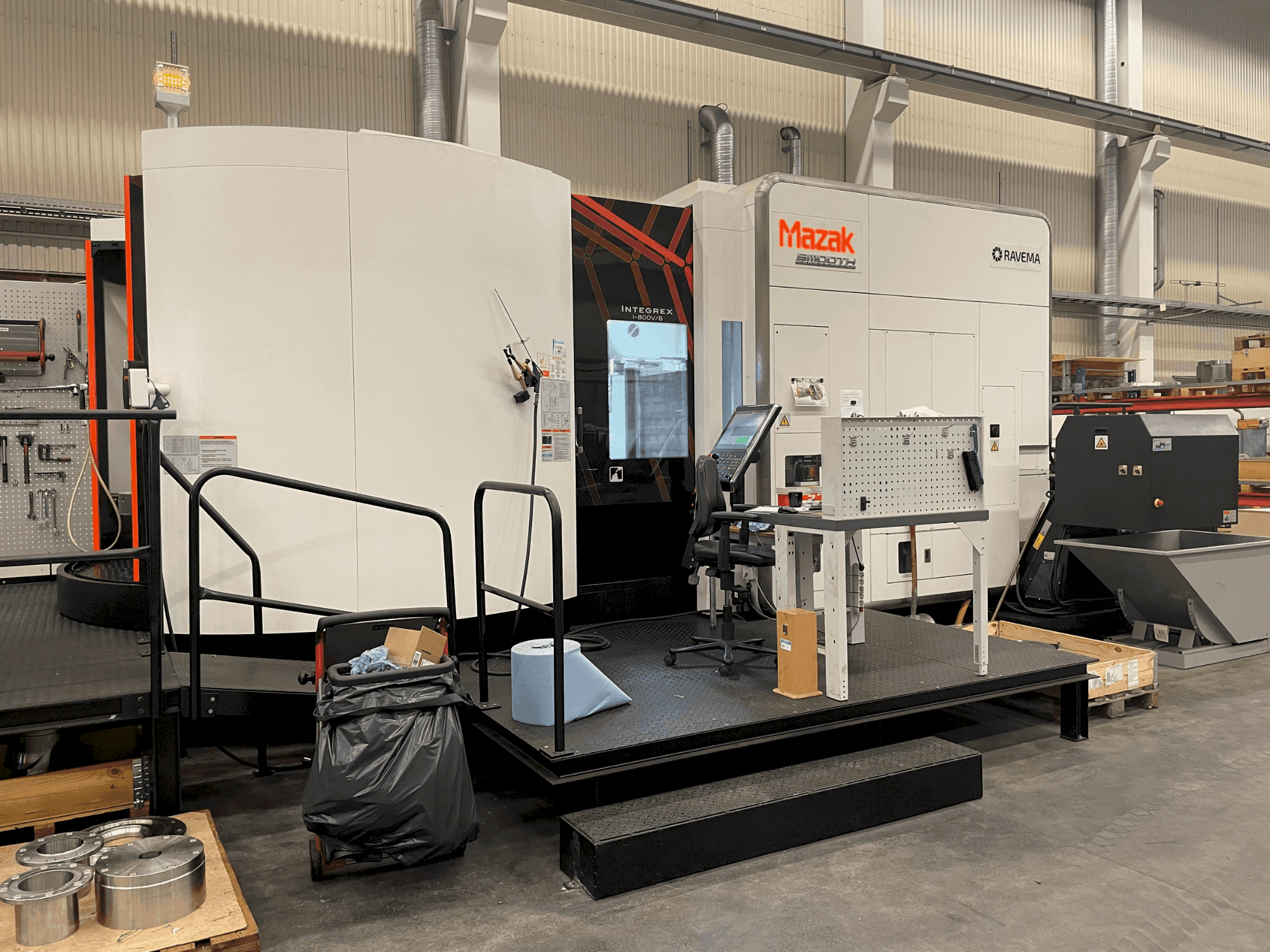

Front view of Mazak INTEGREX i-800V/8  machine

Mazak INTEGREX i-800V/8

Mazak - INTEGREX i-800V/8

2017

Rs. 43,270,550
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This MAZAK INTEGREX i-800V/8 (2017) 5-Axis Universal Machining Centre (Turn-Mill) was manufactured in 2017 in Japan. It is equipped with a high torque milling spindle with scale feedback (max. 5.000 rpm), a 80x tool magazine (capto), MAZAK tool identification system and multi tool function. The machine has 5 axis machining package for SmoothX (X-axis stroke: 1.700mm / Y-axis stroke: 1.500mm / Z-axis stroke: 1.150mm / B-axis: 150° (-30°, +120°) / C-axis: 360°), operates with a max. machining diameter of 1,500 mm and a table speed of 500 rpm. It comes with a RENISHAW RMP 600 probe, laser tool measurement, coolant temperature control system, blowing air through coolant, large volume coolant option and chip conveyor (rear, right). The cutting time is at 3539 hours. This INTEGREX i-800V/8 Multi-Tasking machine combines full 5-axis milling and powerful turning operations to productively process large, highly complex parts such as jet engine components and spiral bevel ring gears. As machine is still under power it can be inspected at any time. See video gallery for more impressions.

Overview

  • brand: Mazak
  • year: 2017
  • MODEL: INTEGREX i-800V/8
  • production hours: 3539
  • application type: Milling
  • Location: Sweden
  • machine type: Machining centers (universal)
  • availability: Immediately
  • GINDUMAC ID: SE-MIL-MAZ-2017-00002

Technical Information

Main drive

  • Spindle speed range: 5000 1/MIN
  • Tool taper: CAPTO
  • Number of axis: 5

Movement

  • X-AXIS Movement: 1700 MM
  • Y-AXIS Movement: 1500 MM
  • Z-AXIS Movement: 1150 MM
  • B-AXIS Movement: 150° (-30°, +120°) MM
  • C-AXIS Movement: 360° MM

Tools

  • Slots in storage: 80
  • Type of tool holder: CAPTO

Media

  • Chip conveyor: Yes

    Additional equipment

    • - Renishaw RMP 600
    • - Chip conveyor (rear/right)
    • - Superflow V30C-J
    • - Extractor GP3000
    • - Laser tool measurement
    • - Coolant temperature control system

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - 5-axis: x-axis stroke 1. 700mm, y-axis stroke 1. 500mm, z-axis stroke 1. 150mm, b-axis 150° (-30°, +120°), c-axis 360°
        • - Blowing air through spindle
        • - Multi tool function
        • - Tool magazine for 80 tools, capto
        • - Mazak tool identification system
        • - Cylindrical and polar coordinate
        • - High torque milling spindle with scale feedback, max. 5. 000 rpm
        • - Max. Machining diameter: 1. 500mm
        • - Table speed: 500 rpm
        • - Prep. For renishaw sprint
      • Qualitative Machine Benefits:
        • - Large volume coolant
        • - Smooth gear skiving
        • - Chip emptying cycle // synchronized threading
        • - Radius compensation // spindle shaper type operation
        • - Mt connect adaptor // g00 slope constant
        • - 5 axis machining package for smoothx orbitturn
        • - Smooth gear mill
        • - Tool length compensation in tool axis direction
        • - Gear hobbing
        • - Energy dashboard function

      Extra information

      • - 3 colored machine status light // MAZAK API // Machine Total time 18501 h, Cutting time 3539 h

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
