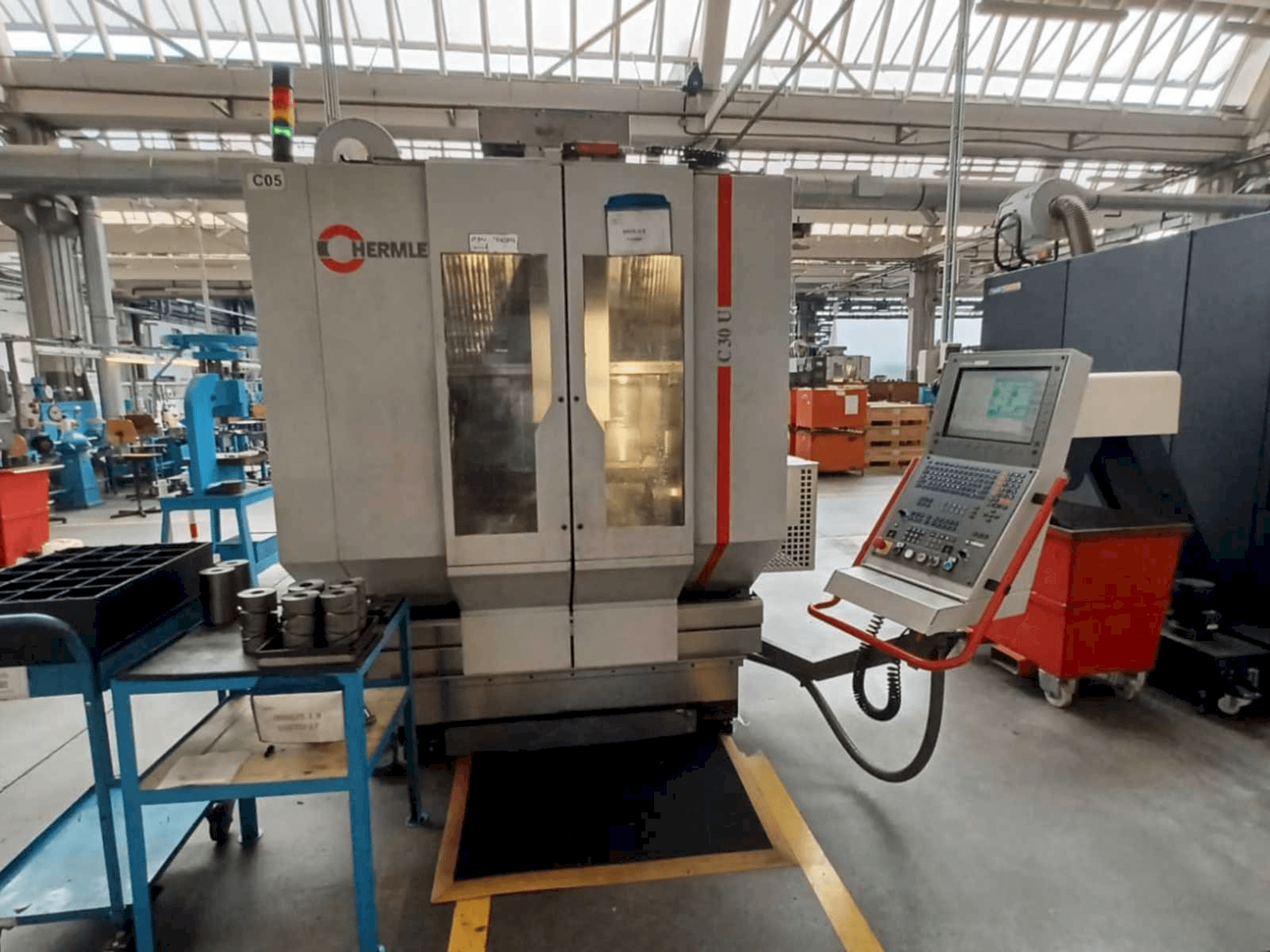

Front view of HERMLE C30U  machine

HERMLE - C30UIT-MIL-HER-2006-00001

Rs. 6,868,050
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This HERMLE C30U Vertical Machine Center was made in the year 2006. It is equipped with a HEIDENHAIN TC 530 control unit and has 5 axis. The machine has a spindle speed of 18000 rpm. There are 2 identical units available.

Overview

  • brand: HERMLE
  • year: 2006
  • MODEL: C30U
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre
  • availability: From October 2024
  • control unit brand: HEIDENHAIN

Technical Information - HERMLE C30U

Control Unit

  • Brand: HEIDENHAIN
  • Model: TC 530

Main drive

  • Spindle motor power: 15 kw
  • Spindle bore: 18000
  • Number of axis: 5

Movement

  • X-AXIS Movement: 650 mm
  • Y-AXIS Movement: 600 mm
  • Z-AXIS Movement: 500 mm
  • C-AXIS Movement: 360º table rotation MM

Media

  • Chip conveyor: Yes

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Maximum tool capacity 32
      • - Spindle connection (spindle) din 69871
      • - Renishaw system predisposition
      • - Air blow through dry machining spindle: yes
      • - 5 axis continuous package: yes
      • - Internal cooling

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
