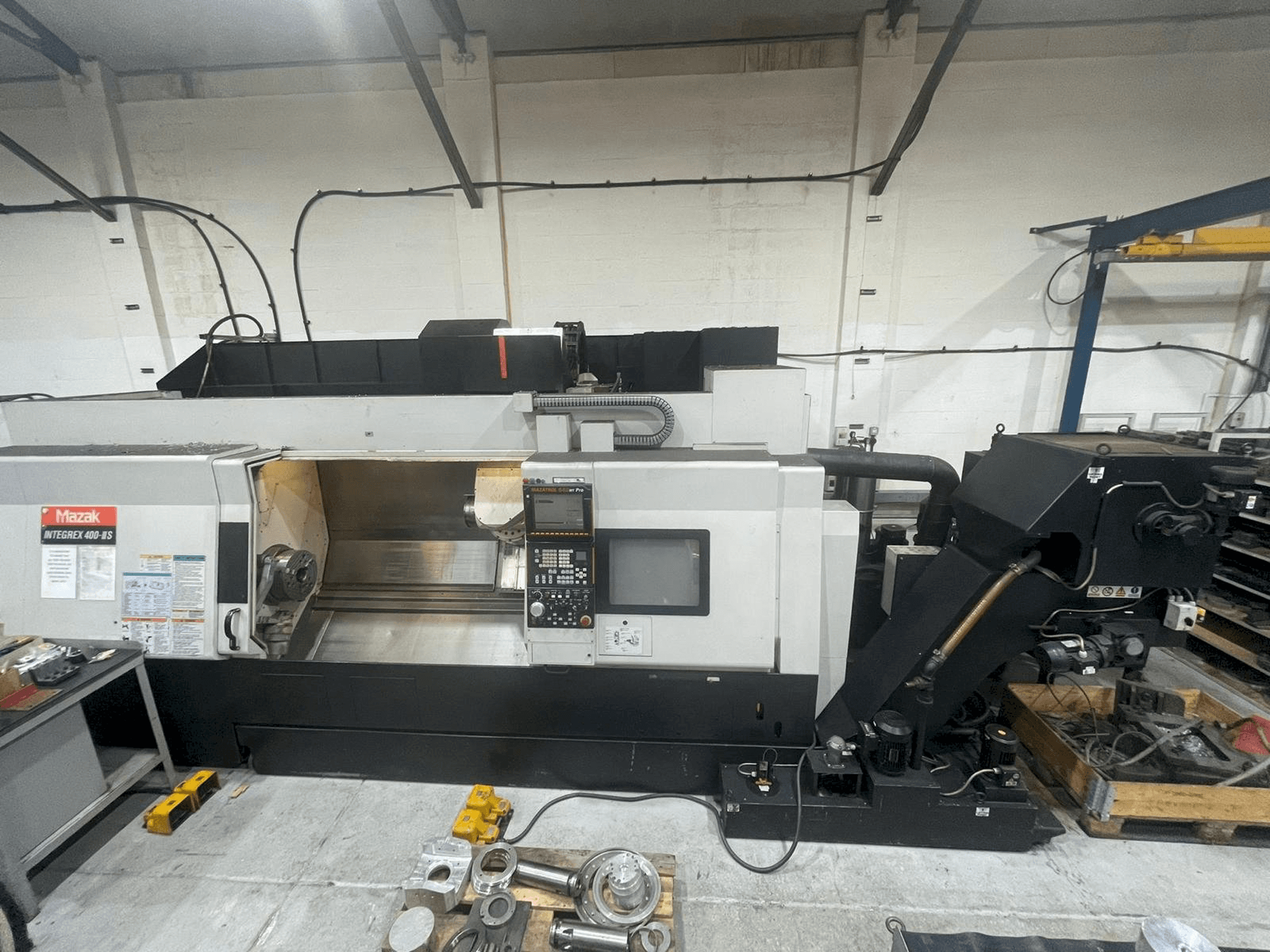

Front view of Mazak Integrex 400 III-S machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Integrex 400 III-S

Photo Gallery

Mazak - Integrex 400 III-SGB-TUR-MAZ-2005-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak Integrex 400 III-S lathe machine

Show in original language

This Mazak Integrex 400 III-S lathe machine was manufactured in 2005 in Japan. This 6 axis machine is operated through a Mazak MAZATROL 640MT PRO control unit. It work with a spindle speed up to 3300 rpm. This machine is in good conditions.

Overview

brand: Mazak
year: 2005
MODEL: Integrex 400 III-S
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak Integrex 400 III-S

General Data

Machine weight: 13300 kg

Control Unit

Model: MAZATROL 640MT PRO
Brand: MAZATROL

Main drive

Number of spindles: 2
Spindle speed range: 3300 1/MIN
Number of axis: 6

Movement

X-AXIS Movement: 630 mm
Y-AXIS Movement: +/- 115 mm
Z-AXIS Movement: 1585 mm
B-AXIS Movement: -30 /+195 DEGREES MM

Tools

Slots in storage: 40
Max tool diameter: 90 MM
Max tool length: 300 MM
Type of tool holder: Capto C6

Media

Power consumption: 99.9
Chip conveyor: Yes

Additional equipment

- Machine manual

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 850 mm
- - Maximum cutting length 1524 mm
- - Maximum cutting diameter 420mm
- - Bar capacity 105 mm
- - Milling rpm 12. 000
- - C axis 0. 001 degrees
- - Spindle motor power 30 kw
- - Rapid feedrates xyz: 38 x 26 x 38m/min
- - Sub-spindle speed 4000 rpm, power 26 kw, c axis 0. 001 degrees
- - 3 jaw chuck, tool setter, coolant, swarf conveyor, b axis
Qualitative Machine Benefits:
- - Good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
