Mazak Integrex 200-3ST

Photo Gallery

Mazak - Integrex 200-3STIL-TUR-MAZ-2003-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak Integrex 200-3ST lathe machine

Show in original language

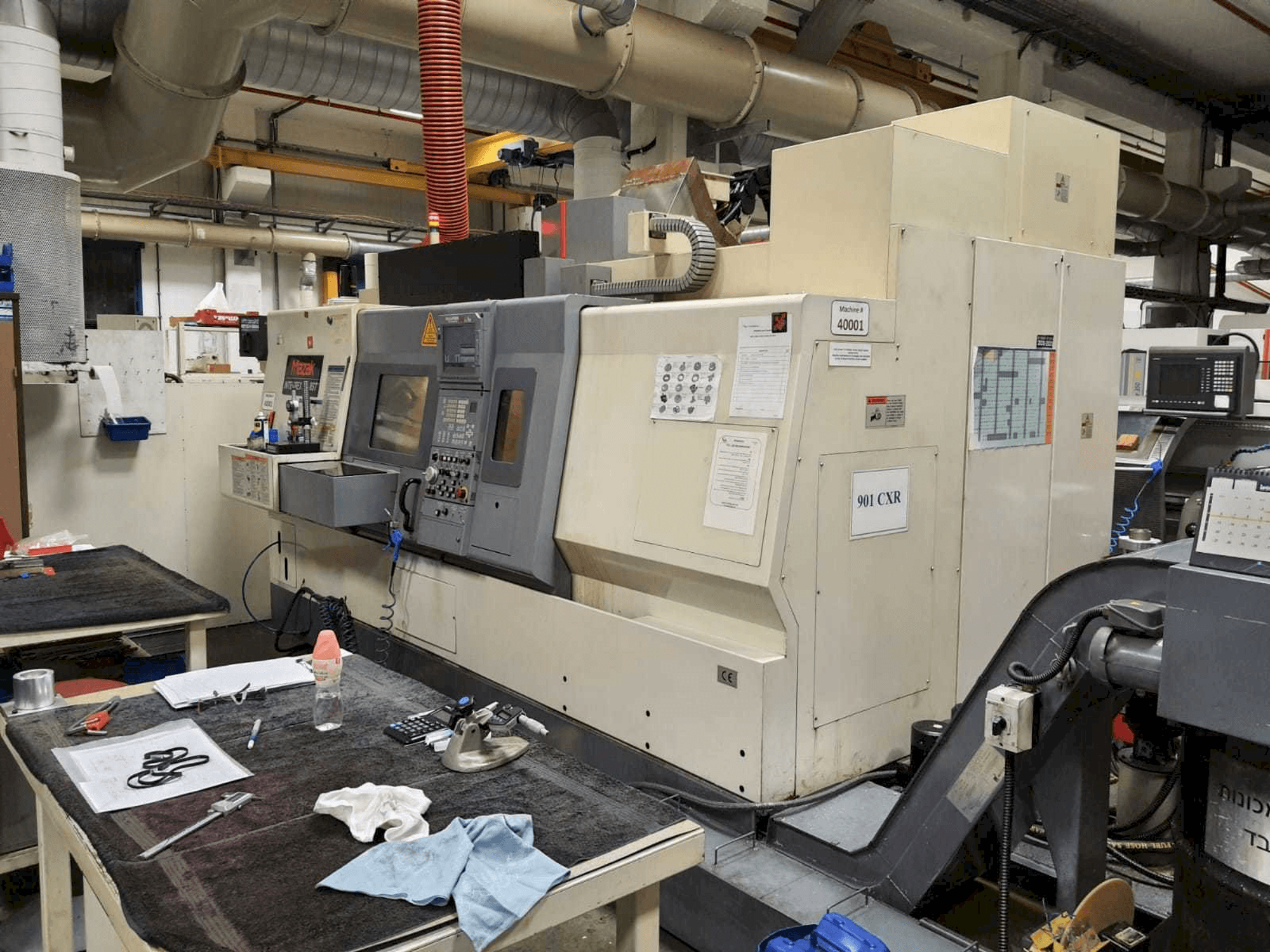

This Mazak Integrex 200-3ST lathe machine was manufactured in 2003. The machine has approximately 40000 working hours, of which 16000 are cutting hours. This 5 axis machine has a spindle speed up to 12000 rpm. All its main drivers were replaced in the last 2-3 years and many other parts like that cover of the X axis, breaks, overhaul and bearing of lower turret have been recently changed.

Overview

brand: Mazak
year: 2003
MODEL: Integrex 200-3ST
production hours: 40000
application type: Turning
Location: Israel
machine type: Turn-Mill Centre
control unit brand: MAZATROL

Technical Information - Mazak Integrex 200-3ST

Control Unit

Control Brand: MAZATROL
Control Model: 640 Mt Pro

Movement

Number of Axes: 5

Technical Specification

Spindle Speed: 12000 RPM
Through-spindle Coolant: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

New milling spindle in 2013
All main drivers were replaced in the last 2-3 years
Cover of x axis upper turret changed in may 2020
4. New break in x axis of the upper turret in sept. 2020
Overhaul of coolant and hydraulic seals on lower turret in oct. 2020
Bearing of lower turret changed in oct. 2020

Technical Machine Benefits

40 tools hsk63, 12000rpm
Lower turret 8 stations
Thru the spindle (turning) 66. 5mm (2 5/8”)
15bar high pressure coolant on milling spindle
Air blow chuck
Air blow thru spindle
Shower coolant
Coolant thru spindle
Chiller / temperature control for coolant
2 spindle

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
