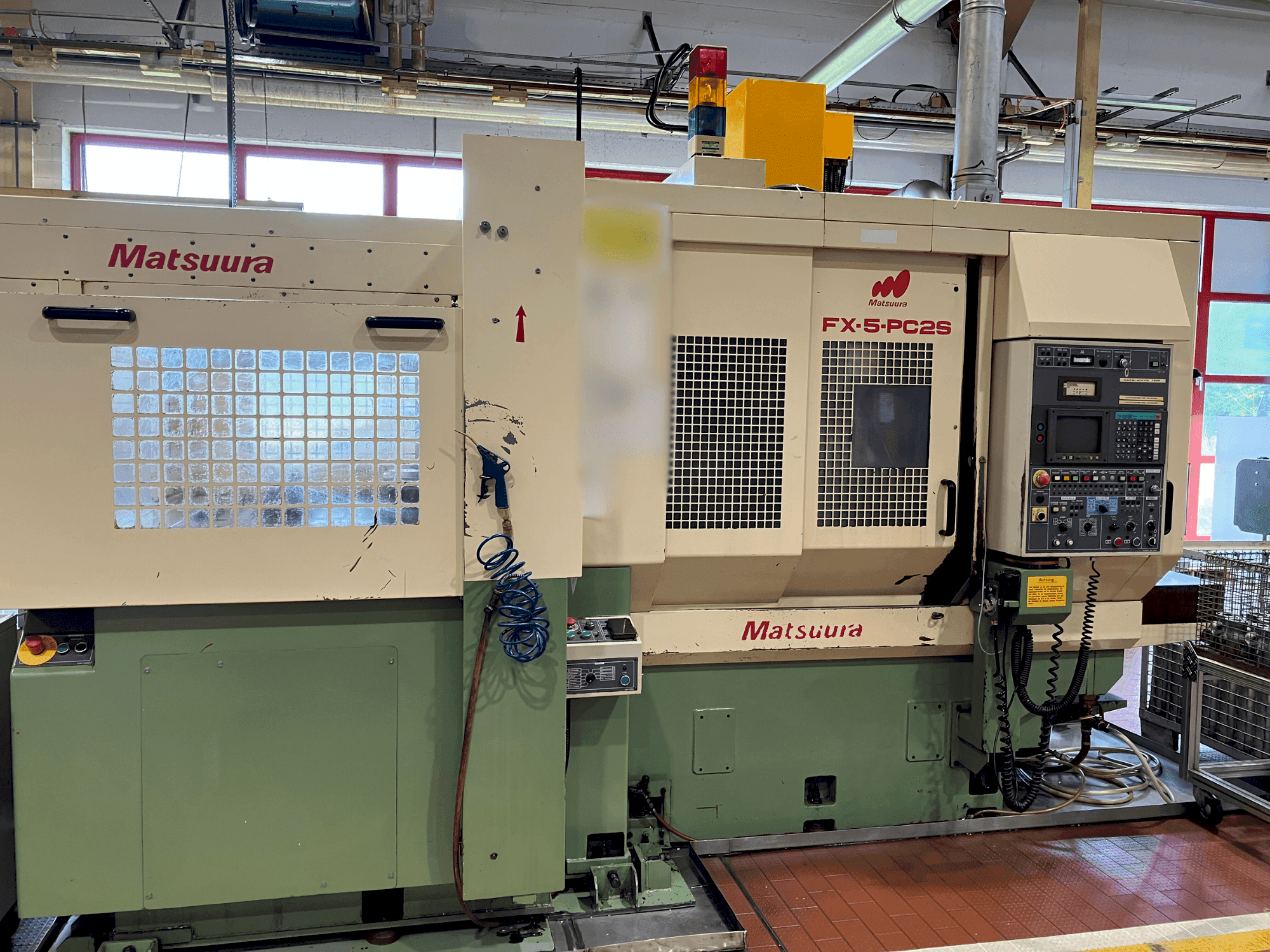

Front view of Matsuura FX-5-PC2S machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Matsuura FX-5-PC2S

Photo Gallery

Matsuura - FX-5-PC2SDE-MIL-MAT-1993-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Matsuura FX-5-PC2S For Sale | gindumac.com

Show in original language

This 3-axis Matsuura FX-5-PC2S was manufactured in 1993. A robust vertical machining centre featuring a pallet table of 1200*660 and a table load capacity of 600kg. It includes a chip conveyor, handwheel, and an oil cooler. The spindle operates at a power of 5.5/15 kW with a speed range of 200-2000 rpm. Ideal for those looking to buy this Matsuura FX-5-PC2S vertical machining centre. Reach out for further details regarding this vertical machining centre.

Overview

brand: Matsuura
year: 1993
MODEL: FX-5-PC2S
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: MATSUURA

Technical Information - Matsuura FX-5-PC2S

General Data

Measurements width: 5150 MM
Measurements depth: 7500 MM
Measurements height: 2825 MM
Machine weight: 10000 KG

Control Unit

Brand: MATSUURA

Main drive

Spindle speed range: 200-2000 1/MIN
Spindle motor power: 5.5/15 kW
Tool taper: SK 40

Movement

X-AXIS Movement: 1020 mm
X-AXIS Rapid traverse: 25 m/min
Y-AXIS Movement: 560 mm
Y-AXIS Rapid traverse: 25 m/min
Z-AXIS Movement: 400 mm
Z-AXIS Rapid traverse: 15 m/min

Table

Outer length: 1200 mm
Outer width: 660 mm
Table load: 600 kg

Additional Information

Additional equipment

C-axis
Chip conveyor link belt
Handwheel
Oil cooler

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
