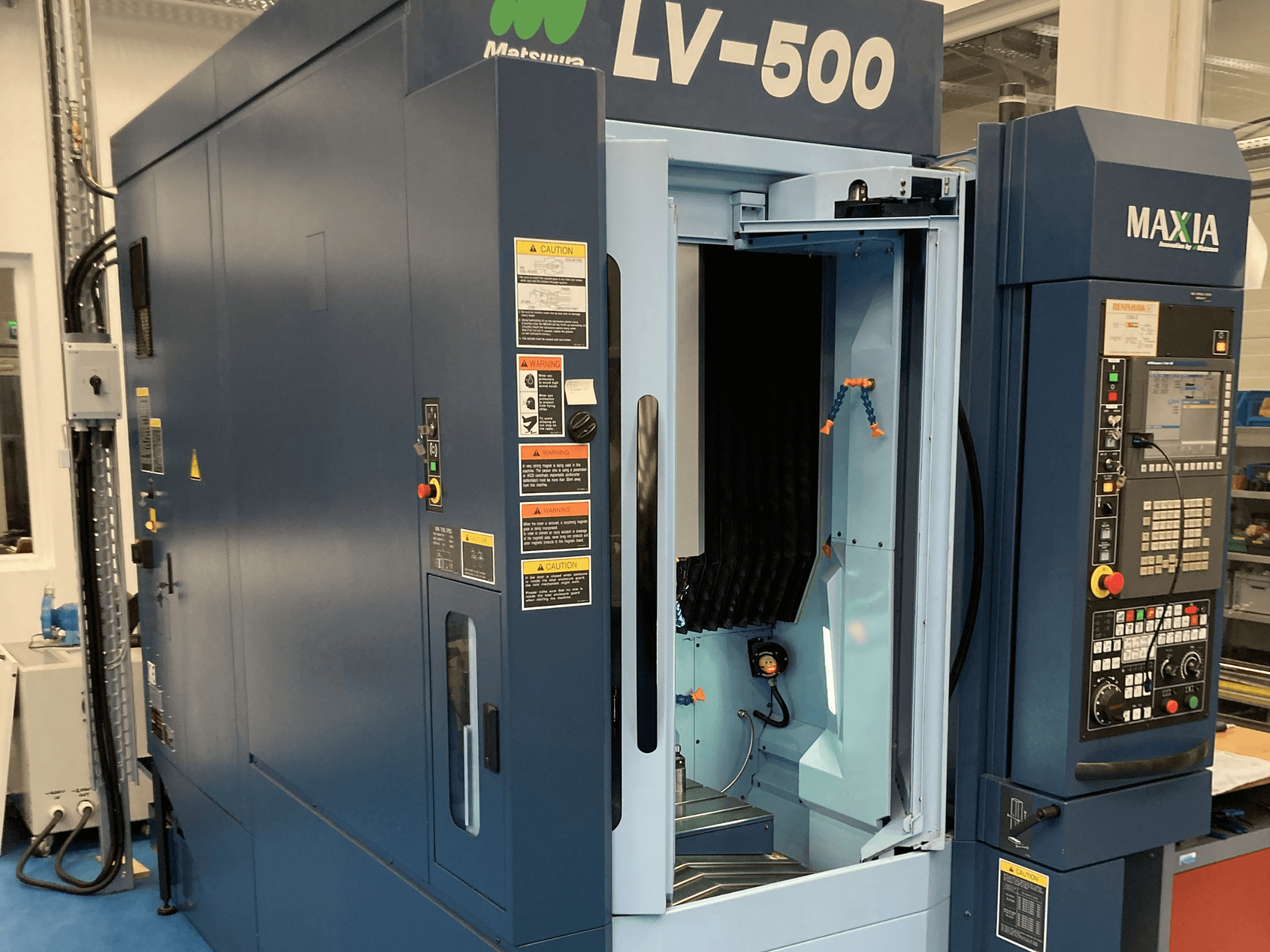

Matsuura - LV-500 HU-MIL-MAT-2017-00001

Control: L-Tech 30iB

Table:

• Size: 540 × 350 mm

• T-slots: 18 mm (3 slots)

• Distance table to spindle nose: 150 – 450 mm

Spindle:

• Taper: BT30 BIG-PLUS

• Motor: 7.5 / 15 kW

• Max torque: 8.86 Nm @ 15,000 rpm

• Direct drive

Feed rates:

• Rapid traverse (X/Y/Z): 90 / 90 / 90 m/min

• Cutting feed: 35,000 mm/min

• Minimum increment: 0.0001 mm

ATC (Automatic Tool Changer):

• Tool taper: BT30

• Max tool diameter: 46 mm

• Max tool length: 150 mm

• Tool-to-tool time: 2.2 s

• Chip-to-chip time: 5.2 s

Accuracy:

• Positioning accuracy: ±0.001 mm

• Repeatability: ±0.0005 mm

Power requirements:

• Power supply: AC 200/220V ±10%

• Required power: 35 kVA

• Frequency: 50/60 Hz

• Air pressure: 0.54 – 0.93 MPa

• Air consumption: 430 NL/min

Tank capacities:

• Coolant: 320 L

• Oil cooler: 9.5 L

• Oil: 1.8 L

• Hydraulic: 25 L

Standard equipment:

• Spindle oil cooler

• Coolant unit

• Chip flush

• Linear motor cooler

• Scale feedback

• Air dryer

• Synchronized tapping

• Work light

• Automatic grease lubrication

• MIMS system (Matsuura Intelligent Meister System)
