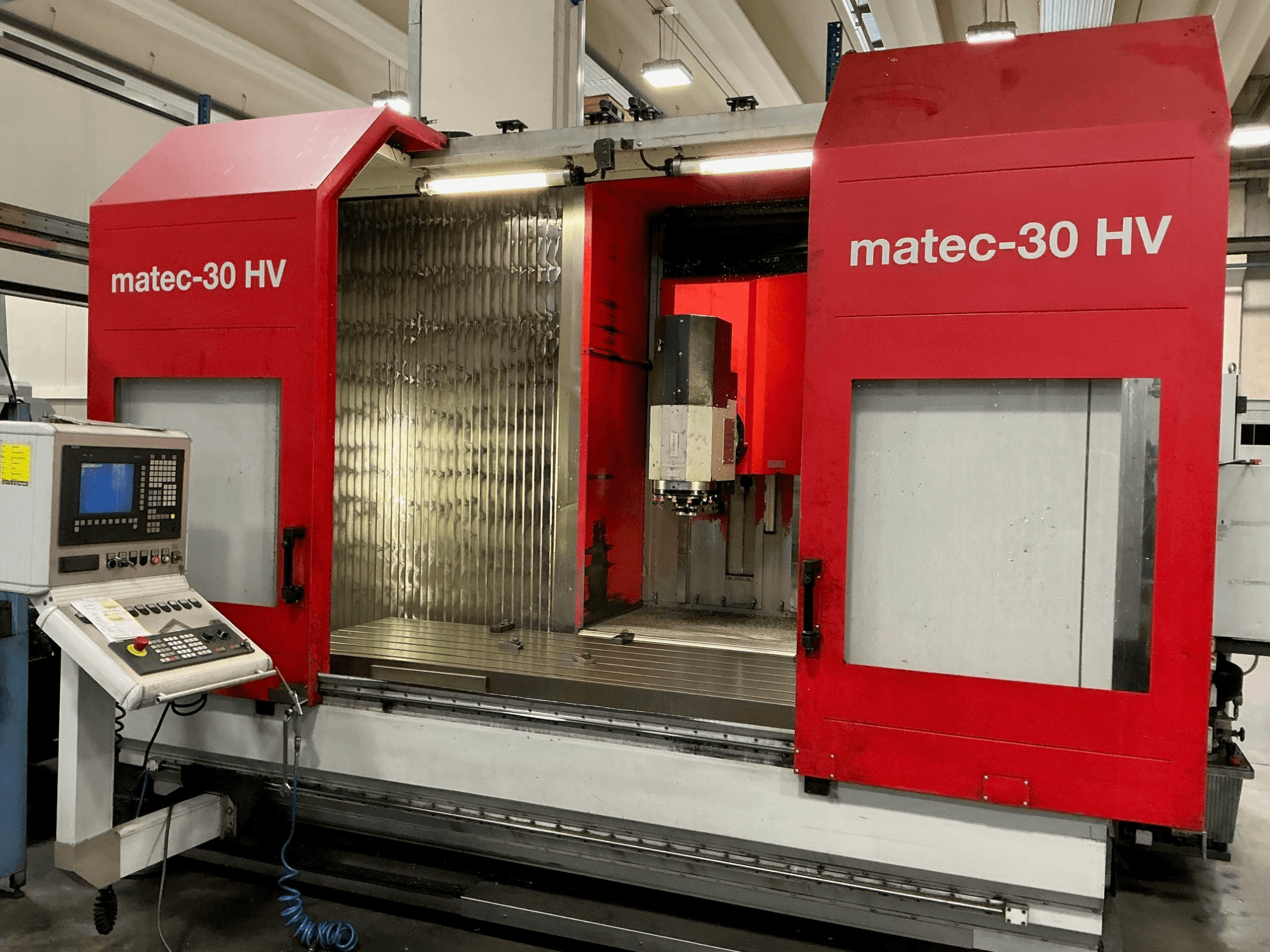

This 5-axis Matec 30 HV was manufactured in 2006. It features a travel capacity of 2000 mm in the X-axis, 600 mm in the Y-axis, and 800 mm in the Z-axis. The machine is equipped with a Sinumerik 840D CNC control, a tool magazine with 36 positions, and a spindle speed of 12,000 rpm. If you are looking to get high-quality machining capabilities, consider the Matec 30 HV vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Matec
- year: 2006
- MODEL: 30 HV
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- Available from: 01/07/2026
- control unit brand: SIEMENS
Technical Information - Matec 30 HV
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840D
Movement
- Number of Axes: 5
- X-axis Travel: 2000 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 800 mm
Technical Specification
- Number of Tools: 36
- Spindle Power: 30 kW
- Spindle Speed: 12000 RPM
- Taper Size: HSK 63
Additional Information
Electronic handwheel
Tool magazine capacity: 36 positions
Through-spindle coolant (IKZ): 20 bar
Additional equipment
NC rotary table: RW/NC 220/320
Measuring probe
Paper filter unit: 450 liters
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
