Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
MAS - MCV 1016 QUICKPL-MIL-MAS-2010-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used MAS MCV 1016 QUICK For Sale | gindumac.com

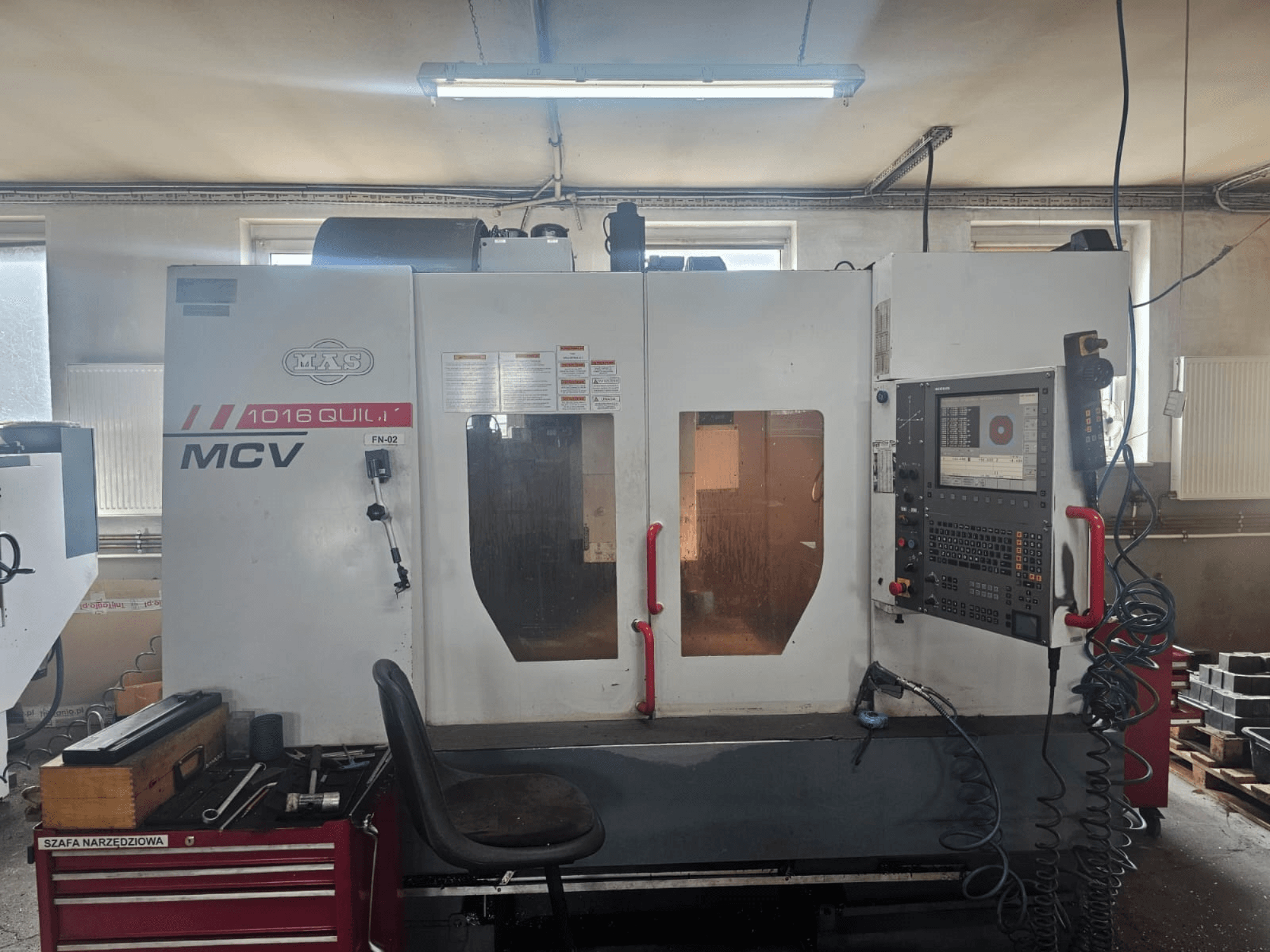

This 3-axis MAS MCV 1016 QUICK was manufactured in 2010. It features a table size of 1300 × 600 mm, with a maximum travel of 1016 mm in the X-axis, 610 mm in the Y-axis, and 710 mm in the Z-axis. The spindle supports a speed range of 20–10000 rpm with stepless speed change. It can handle a maximum table load of 700 kg. If you are looking to get high-quality milling capabilities consider the MAS MCV 1016 QUICK machine we have for sale. Contact us for more information.
Overview
- brand: MAS
- year: 2010
- MODEL: MCV 1016 QUICK
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - MAS MCV 1016 QUICK
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 530
Dimensions
- Table Load: 700 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1016 mm
- Y-axis Travel: 610 mm
- Z-axis Travel: 710 mm
Technical Specification
- Spindle Speed: 10000 RPM
- Taper Size: ISO 40
Additional Information
Table size: 1300 × 600 mm
Number of T-slots in table: 5
Maximum workpiece dimensions (with maximum tool length): 1016 × 600 × 420 mm
Spindle bearing diameter: 75 mm
Distance from spindle nose to clamping surface: 100–810 mm
Distance from spindle axis to column: 635 mm
Tool clamping force: 12,000 N
Positioning accuracy (VDI/DGQ 3441): 0.012 mm
Measurement in X, Y, Z: direct
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
