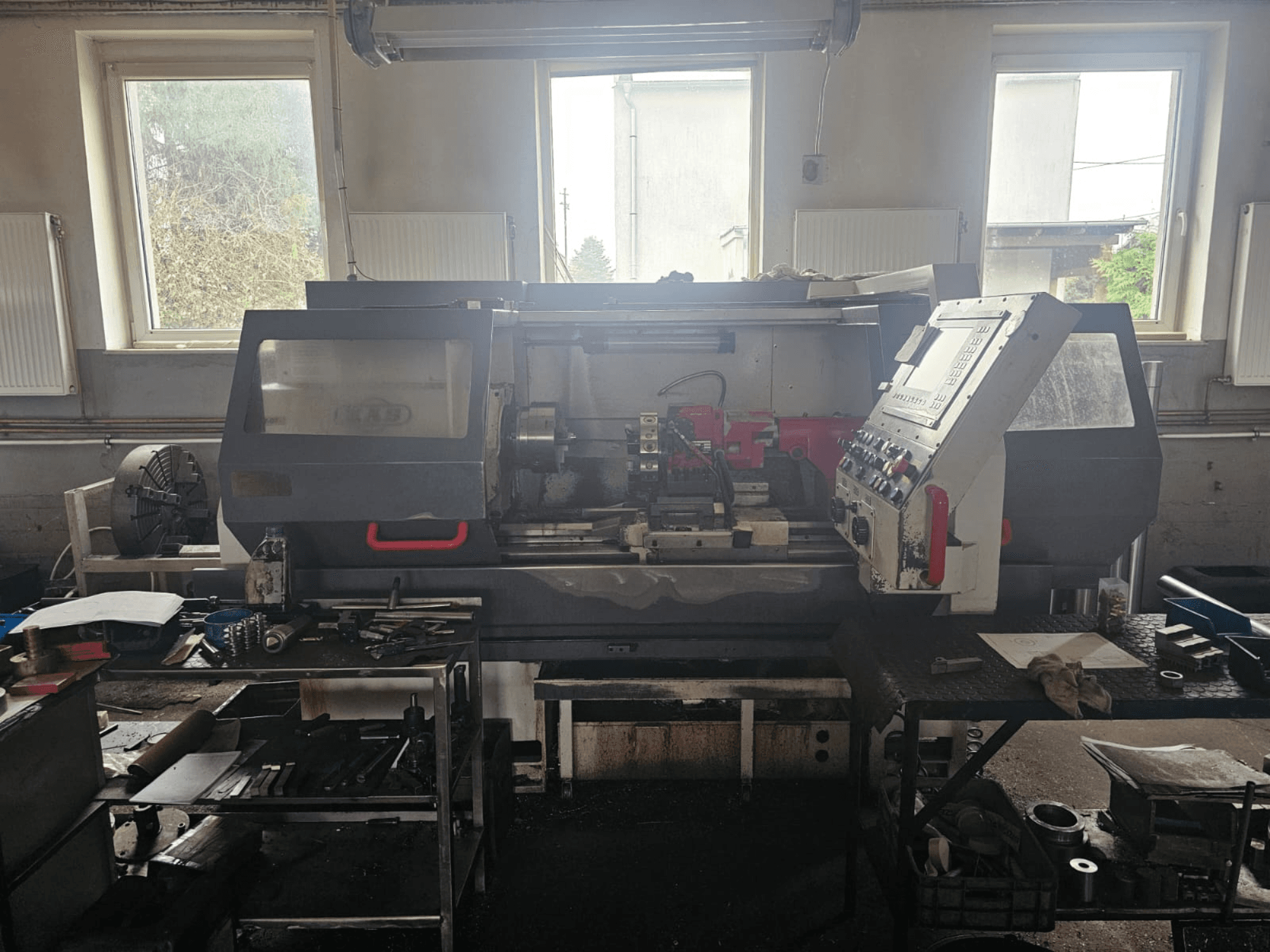

Lathe machine in a workshop, front view, with control panel and tools on tables, surrounded by windows and cluttered workspace.
Lathe machine in a workshop, front view, with control panel and tools on tables, surrounded by windows and cluttered workspace.

MAS - MASTURN 550PL-TUR-MAS-2010-00001

Rs. 2,975,716
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This MAS MASTURN 550 was manufactured in 2010. It features a swing over bed of 550 mm and a maximum turning diameter of 500 mm. The spindle supports a speed range up to 3000 rpm, and it's equipped with a HEIDENHAIN MANUAL plus 4110 control system. If you are looking to get high quality turning capabilities consider the MAS MASTURN 550 machine we have for sale. Contact us for more information.

Overview

  • brand: MAS
  • year: 2010
  • MODEL: MASTURN 550
  • application type: Turning
  • Location: Poland
  • machine type: Horizontal Turning Machine
  • control unit brand: HEIDENHAIN

Technical Information - MAS MASTURN 550

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: MANUAL plus 4110

Movement

  • Number of Axes: 2
  • X-axis Travel: 285 mm
  • Z-axis Travel: 890 mm

Technical Specification

  • Spindle Speed: 3000 RPM

Additional Information

  • Swing over bed: 550 mm

  • Swing over cross slide: 350 mm

  • Maximum turning diameter: 500 mm

  • Distance between centers: 900 or 1600 mm

  • Maximum workpiece weight: 600 kg

  • Spindle

    • Spindle bore: 82 mm

    • Spindle taper (metric): 90 mm

  • Control system

    • HEIDENHAIN MANUALplus 4110

  • Axes

    • X-axis: ball screw diameter/pitch 25/5 mm; travel 285 mm; rapid traverse 10 m/min; maximum feed force 5 kN; repeat positioning accuracy 0.01 mm

    • Z-axis: ball screw diameter/pitch 40/5 mm; travel 890 or 1590 mm; rapid traverse 10 m/min; maximum feed force 10 kN; repeat positioning accuracy 0.015 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
