Makino PS95

Photo Gallery

Makino - PS95PL-MIL-MAK-2014-00002

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

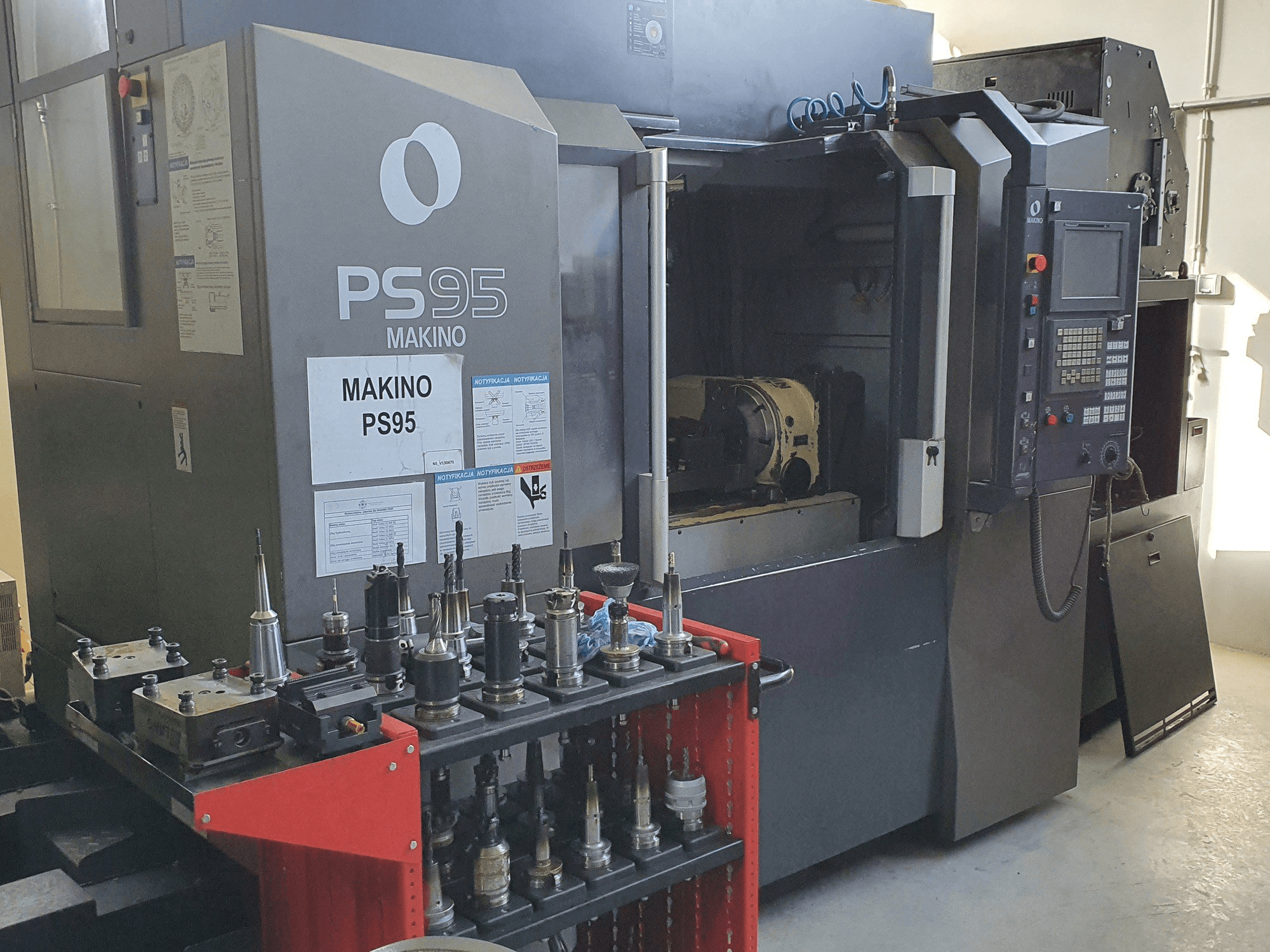

Makino PS95 vertical machining center

Show in original language

This Makino PS95 vertical machining center was manufactured in 2014. The machine has a total of 4000 hours. It is operated through a control unit of the same brand. This 4 axis machine has a spindle speed up to 14000 rpm. The machine is in a very good, working condition. It is ready for test and always serviced via MAKINO factory service. Its full service and operating documentation is available. A new spindle was replaced in 2018.

Overview

brand: Makino
year: 2014
MODEL: PS95
production hours: 4000
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAKINO

Technical Information - Makino PS95

General Data

Measurements width: 2762 mm
Measurements depth: 2420 mm
Measurements height: 2479 mm
Machine weight: 6800 kg

Control Unit

Brand: MAKINO

Main drive

Spindle speed range: 14000 1/MIN

Movement

X-AXIS Movement: 920 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 460 mm

Table

Outer length: 1170 mm
Outer width: 510 mm
Min distance between vertical spindle and table: 150 - 610 mm

Tools

Max weight: 8 kg
Max tool diameter: 125 mm
Max tool length: 300 mm

Media

Main electronic connection: 3 x 400V / 50 Hz
Power consumption: 33 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle tapper: hsk63a taper
- - Automatic tool changer: 30 pcs
- - Interface for 4th axis nc-table (incl. Fanuc-components)
- - Through spindle coolant: 1. 5 mpa, including option air through spindle
- - Tool shank hsk-a63
- - Blum probe awm
- - Blum probes atlm
- - Ai contour control (aicc)
- - 4th axis nikken cncz 260zlfa-m
- - External chip conveyor frontside knoll incl. External pump
Qualitative Machine Benefits:
- - Coolant unit knoll kf200, ikz 15bar
- - Increased program storage to 2mb
- - Coolant tank capacity: 310 liters

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
