➤ Used Makino F5 Vertical Machining Center

Show in original language

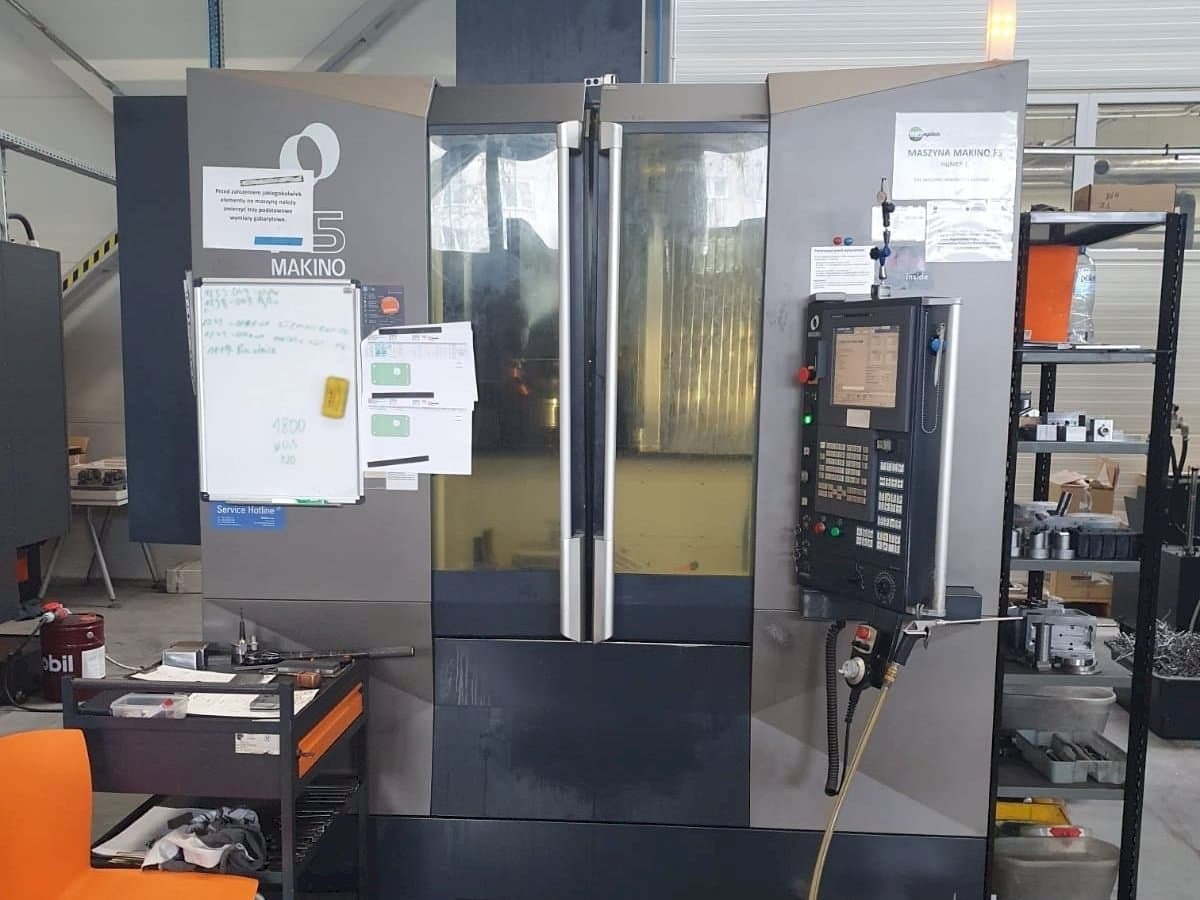

This Makino F5 Vertical Machining Center from the year 2014 was built in Japan. It has a working record of 13016 production hours. Thise 3 axis machine, can work with a spindle speed range up to 20000 rpm. It is equipped with a Makino Professional 5 control unit. It includes several additional equipments.

Overview

brand: Makino
year: 2014
MODEL: F5
production hours: 13016
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: MAKINO

Technical Information - Makino F5

Control Unit

Control Brand: MAKINO
Control Model: Professional 5

Dimensions

Machine Depth: 2625 mm
Machine Height: 3065 mm
Machine Weight: 7500 kg
Table Length: 1000 mm
Table Width: 500 mm

Movement

X-axis Travel: 900 mm
Y-axis Travel: 500 mm
Z-axis Travel: 450 mm

Technical Specification

Spindle Speed: 20000 RPM
Through-spindle Coolant: Yes

Additional Information

Additional equipment

MEMORY 100 KB FOR 1000 PROGRAMS
CONICAL/SPIRAL INTERPOLATION
COOLING THROUGHT THE SPINDLE 3.0 Mph
ENLARGED COOLANT TANK WITH LEVEL SENSOR - 625 LITERS, AT THE REAR OF THE MACHINE
SPINDLE TAPER: HSK-A63
WORKPLACE PROBE (BLUM TC50) WITH LASER SYSTEM (BLUM MicroCompact NT)
ADDITIONAL BLOCK SKIP FUNCTION (MAX 9 BLOCKS)
ATC WITH 30 POSITIONS FOR TOOLS MAX D=76MM, L=300

Machine Benefits

Qualitative Machine Benefits

Perfect condition, still in the production

Technical Machine Benefits

3 axis
The spindle is original, we have never replaced the spindle with any of the f5 machines. The spindle has no runout

Machine History

End product

Electrodes

Material type

Copper, steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
