Makino DUO 64

Photo Gallery

Makino - DUO 64PT-EDM-MAK-2011-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

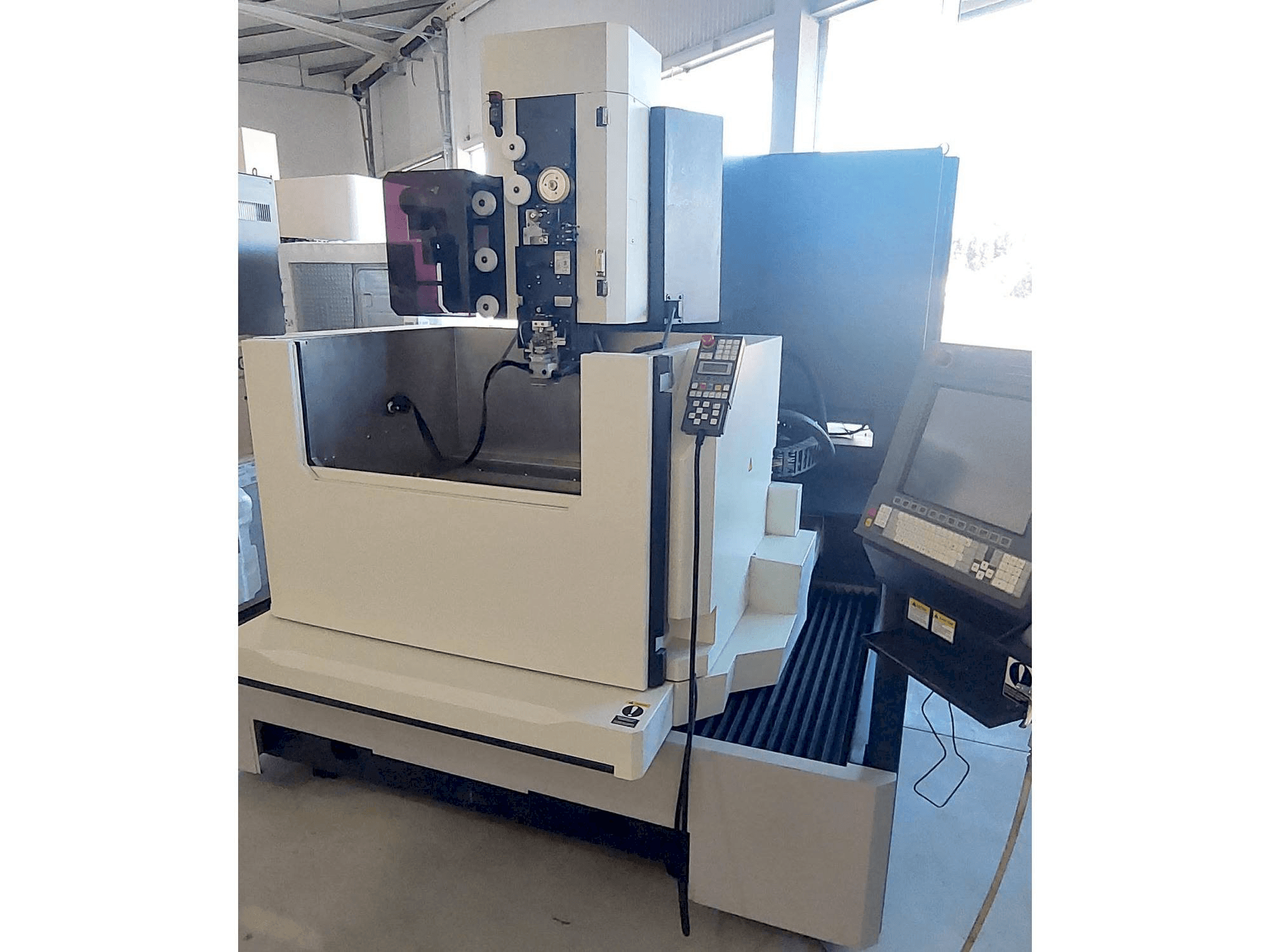

Makino DUO 64 Erosion

Show in original language

This Makino DUO 64 Erosion machine was built in the year 2011 in Singapore and has approximately 30000 cutting hours. It is equipped with a Makino MGW-S6 control unit and has 5 axis. The machine has standard wire guides of 0,25 mm. It is in excellent condition, fully revised.

Overview

brand: Makino
year: 2011
MODEL: DUO 64
production hours: 30000
application type: EDM
Location: Portugal
machine type: Die-Sinking EDM Machine
availability: Sold
control unit brand: MAKINO

Technical Information - Makino DUO 64

General Data

Measurements width: 2200 mm
Measurements depth: 3140 mm
Measurements height: 2450 mm
Machine weight: 6000 kg

Control Unit

Model: MGW-S6
Brand: MAKINO

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 650 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 420 mm
V-Axis Movement: (+-) 101 mm
U-Axis Movement: (+-) 101 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Part dimension: 1070 x 855 x 411 mm
- - Max. Weight part: 1200 kg
- - Dielectric volume: 990 l
- - Standard spool size: 16 kg
- - Awt (automatic wire threading): yes
- - Standard wire guides: 0,25 mm
Qualitative Machine Benefits:
- - The machine is in excellent condition, fully revised
- - Refurbished

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
