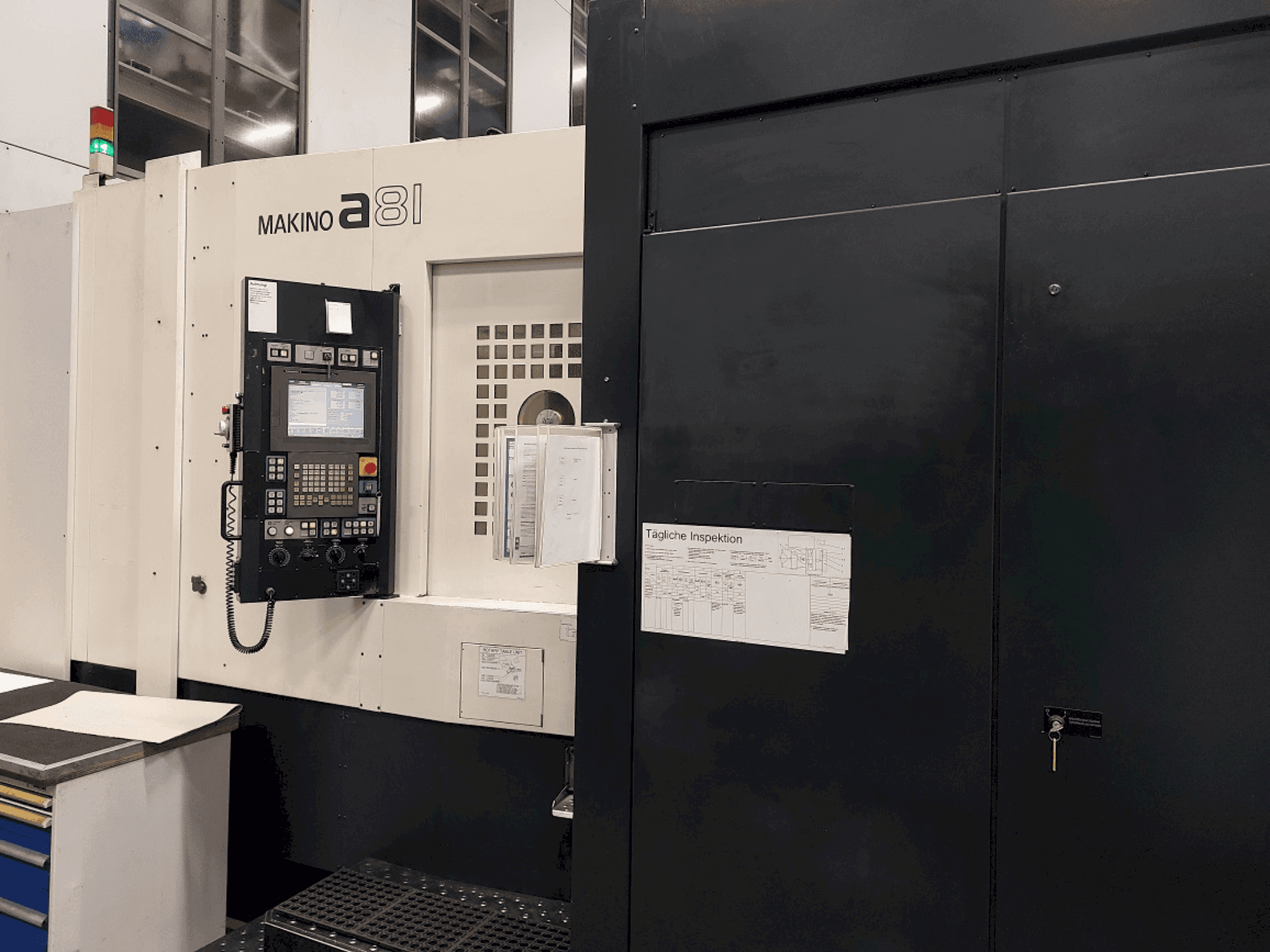

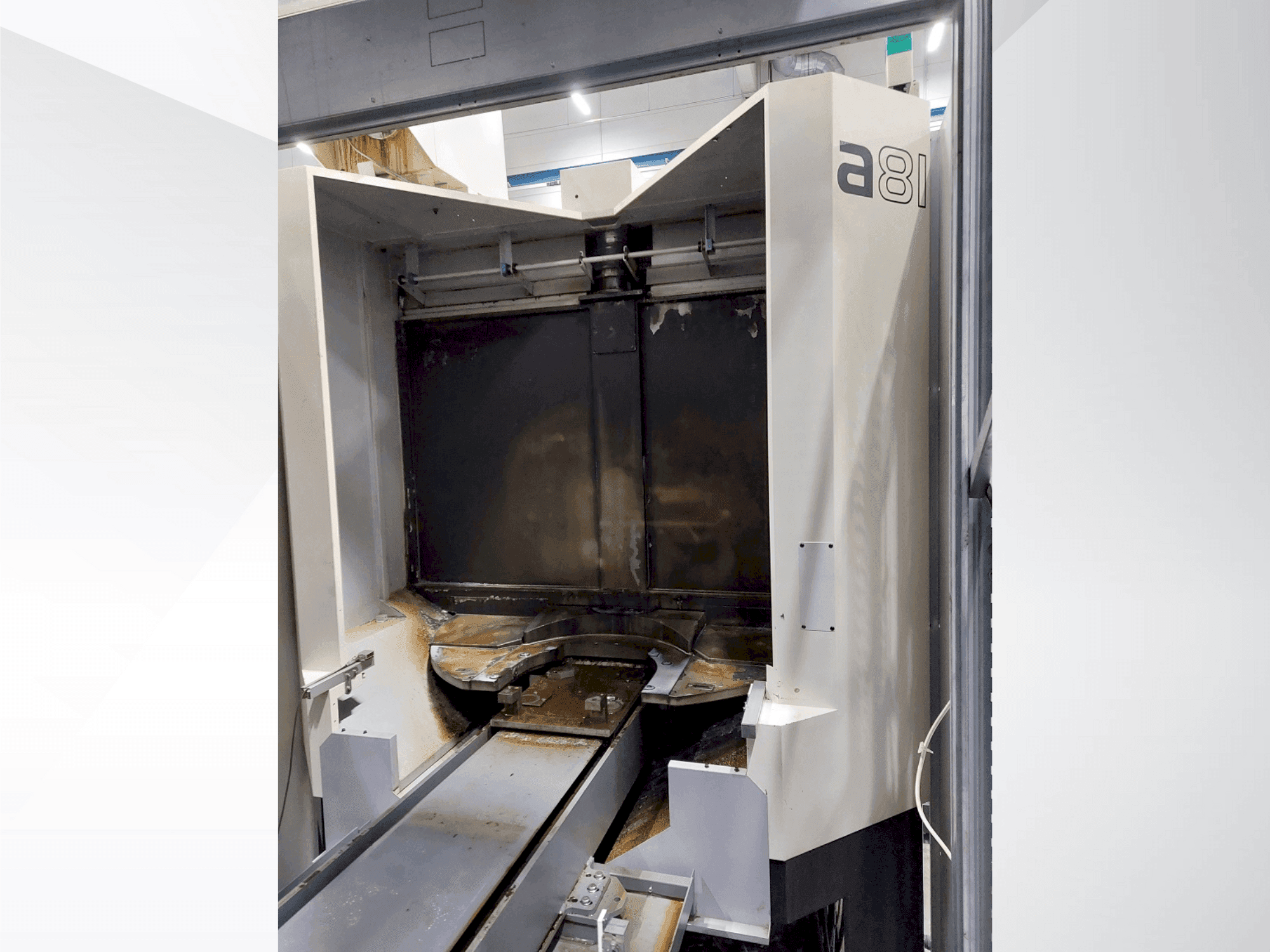

Makino - a81DE-MIL-MAK-2008-00002

Additional equipment

• Spindle cooling

• Tank system with Knoll compact band filter, 3200 liters

• Coolant supply through the spindle

• Oil mist extraction

• Scraper belt conveyor

• Conversion kit for stand-alone operation (currently used as a system machine)

Machine Benefits

Technical Machine Benefits

• Transverse movement (x-axis) of the column: 900 mm

• Height adjustment (y-axis) of the spindle unit: 800 mm

• Longitudinal movement (z-axis) of the table: 1020 mm

• Permissible swivel diameter in the working area: 1000 mm

• Max. Swiveling height from pallet surface: 1300 mm

• Pallet size: 630 x 630 mm

• Pallet – nc – rotary table with 4th nc axis

• Input resolution: 0. 001°

• Positioning accuracy: ± 3 arcseconds

• Tool magazine with 242 storage slots

• Lighting & Filtration:

  • Magazine lighting (retrofitted).

  • Pump and coarse filtration for bed and work area flushing.

  • 100 µm filter fleece.

• Cooling Systems:

  • Inner Cooling through Spindle (IKZ).

  • Pressure stages up to 50 bar.

  • 40 µm dual-switch filter.

  • Mounting prepared for an external cooling pump.

• Software & Control:

  • Fanuc Macro B.

  • HD-Skip functionality.

Optional

• Storage & Pallets:

  • Includes two pallets.

  • Tool holder capacity: 241 pieces.

Extra Information

Power Supply 400 V, 3-phase AC, 50 Hz Power rating: 72 kVA Control System Options for 48 zero points and Custom Macro B Tool life monitoring Tool breakage detection Adaptive feed control Compressed air through the spindle Knoll compact band filter, 3200 liters Magnetic separator Double-switching filter for IKZ Coolant supply through the spindle Compressed air through the spindle Oil mist extraction Scraper belt conveyor Control System: Makino Pro5 Options for 48 zero points and Custom Macro B Tool life monitoring Tool breakage detection (parallel to main operation) Adaptive feed control Conversion Kit for Stand-Alone Operation (Currently used as a system machine (FFS/FMS)) Pallet changer with placement of 2 pallets in alternating cycles onto a station positioned outside the working area Pallet holder rotatable, indexed at 90° intervals, 0-position electronically monitored Coding for automatic program call when inserting the pallet Pallet storage station secured with a protective device and electrical interlock
