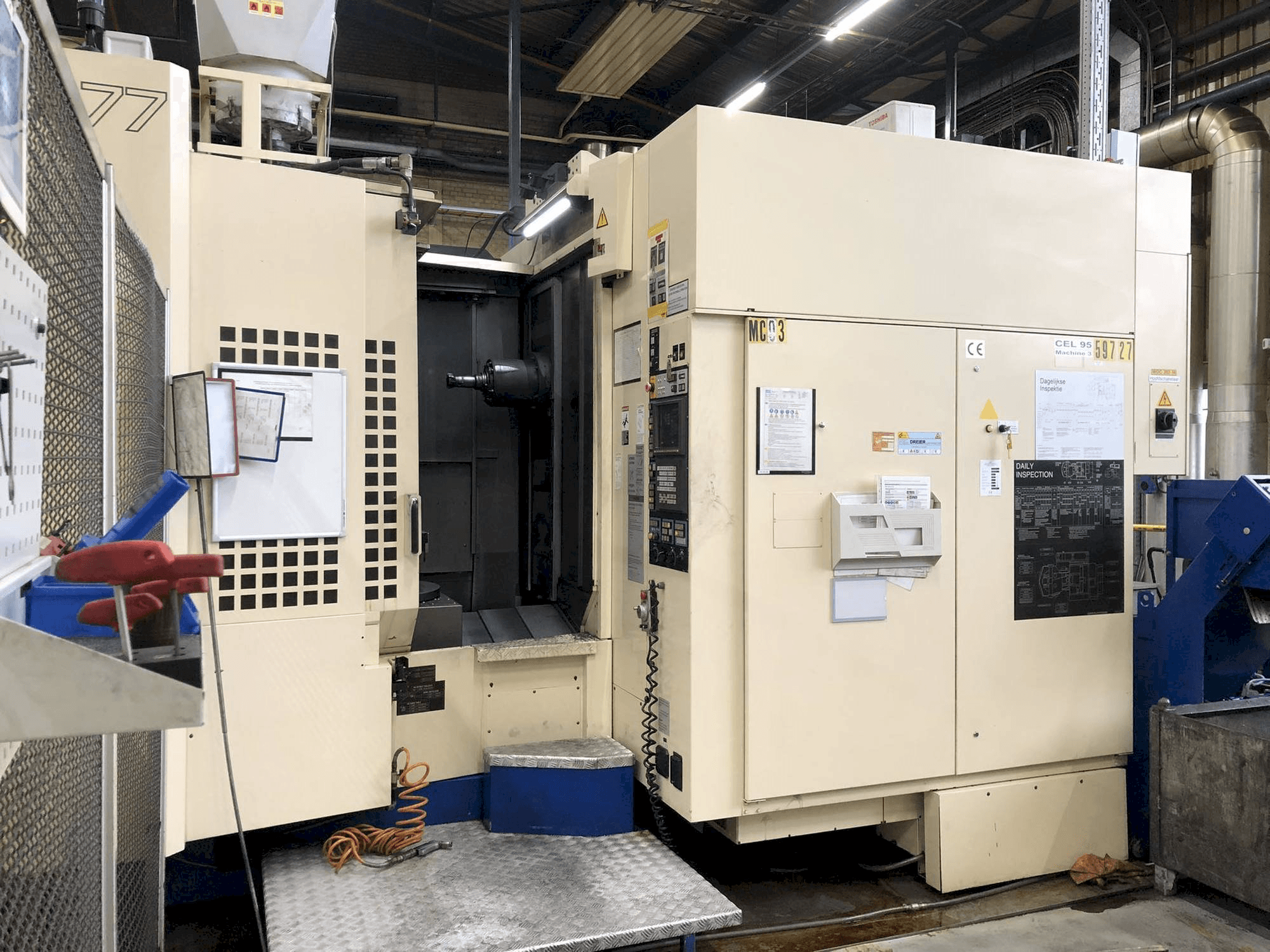

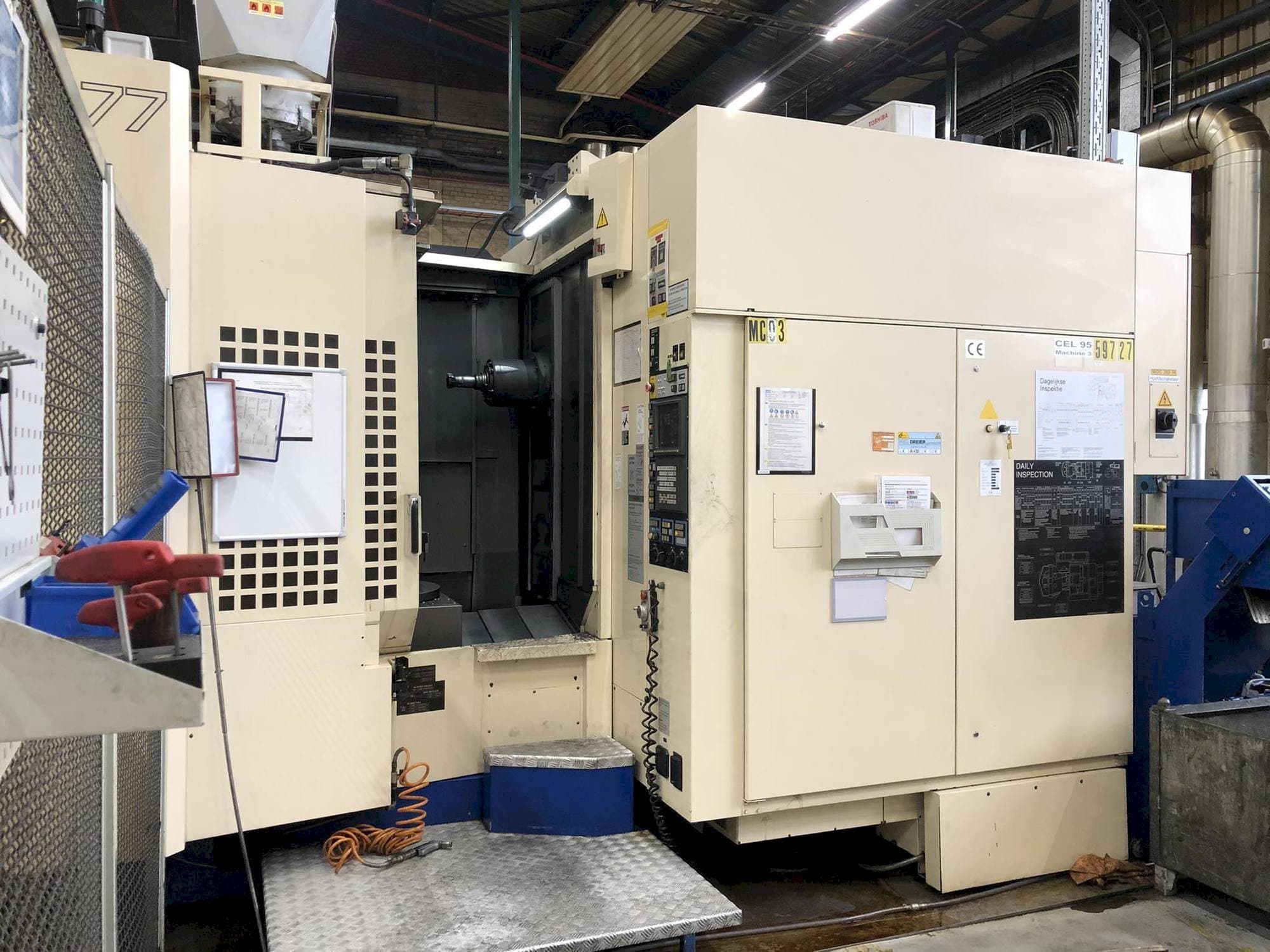

Front view of Makino A77  machine

Makino A77

Makino - A77

1998

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Makino A77 Horizontal Machining center was manufactured in the year 1998 in Germany and has 15000 spindle hours. It is equipped with a Fanuc Series 160MC control unit. The machine has a spindle speed of 10000 rpm. 3 units are available.

Overview

  • brand: Makino
  • year: 1998
  • MODEL: A77
  • production hours: 15000
  • application type: Milling
  • Location: Belgium
  • machine type: Machining centers (horizontal)
  • availability: Sold
  • control unit brand: Fanuc
  • GINDUMAC ID: BE-MIL-MAK-1998-00001

Technical Information

General Data

  • Measurements width: 2890 MM
  • Measurements depth: 5680 MM
  • Measurements height: 3300 MM
  • Machine weight: 15000 KG

Control Unit

  • Brand: Fanuc
  • Model: Series 160MC

Main drive

  • Number of spindles: 1
  • Spindle speed range: 10000 1/MIN
  • Spindle motor power: 30/26 KW
  • Number of axis: 4

Movement

  • X-AXIS Movement: 800 MM
  • Y-AXIS Movement: 750 MM
  • Z-AXIS Movement: 770 mm

Workpiece

  • Workpiece weight: 1200 KG

Table

  • Outer length: 630 MM
  • Outer width: 630 MM

Tools

  • Slots in storage: 225
  • Type of tool holder: sk50

Media

  • Chip conveyor: Yes

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Incl 2 pallets for each machine
      • - Fms system can be bought for an additional amount
      • - A lot of spare parts available, can be bought for an additional amount

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
