LAGUN FBF 1800

Photo Gallery

LAGUN - FBF 1800ES-MIL-LAG-1992-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

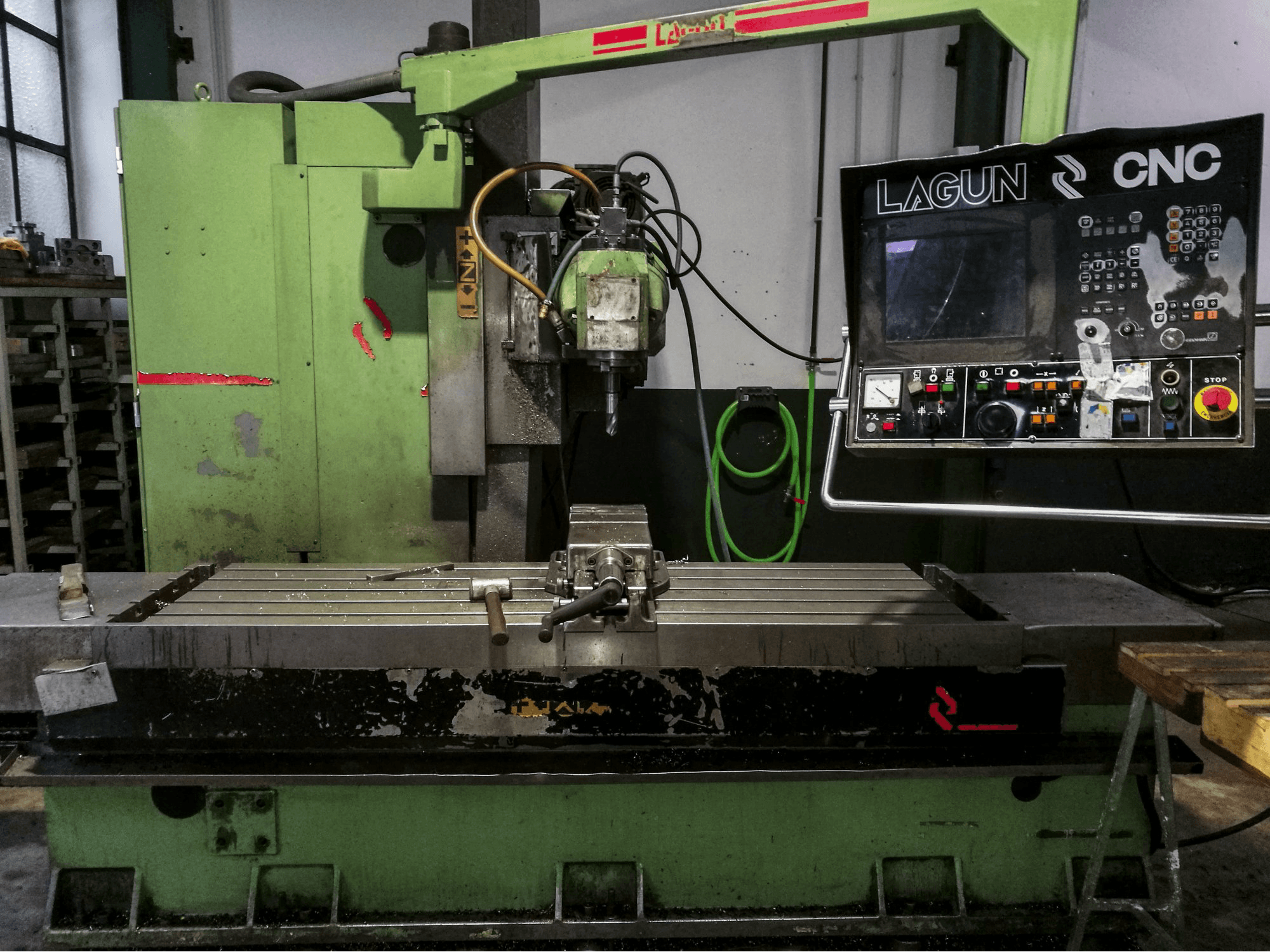

Lagun FBF 1800 Milling Machine

Show in original language

The Lagun FBF 1800 is a Milling Machine from 1992 that has a production record of approximately 20000 working hours. It is equipped with an easy to program HEIDENHAIN TNC 360 Control unit and a variety of additional tool holders. During production this machine benefits from its large, 1800 mm long and 550 mm wide working table and its special turning head, which makes the FBF 1800 work like a 4 axis machine.

Overview

brand: LAGUN
year: 1992
MODEL: FBF 1800
production hours: 20000
application type: Milling
Location: Spain
machine type: Horizontal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - LAGUN FBF 1800

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 360

Dimensions

Machine Depth: 2000 mm
Machine Height: 2550 mm
Machine Weight: 9000 kg
Table Length: 1800 mm
Table Width: 550 mm

Movement

X-axis Travel: 1700 mm
Y-axis Travel: 600 mm
Z-axis Travel: 600 mm

Technical Specification

Spindle Speed: 3000 RPM
Taper Size: ISO 50

Additional Information

Additional equipment

Tool holders

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
