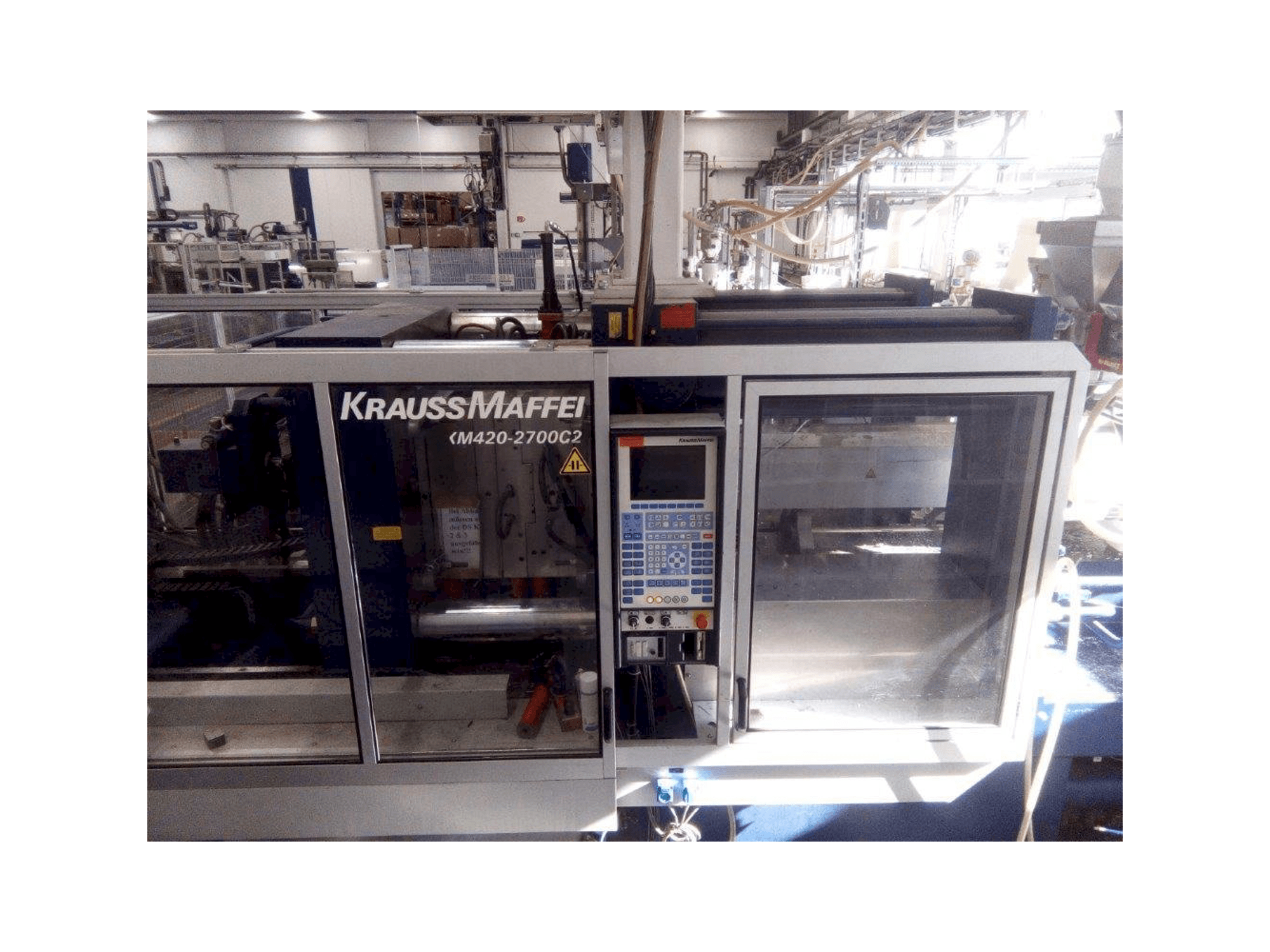

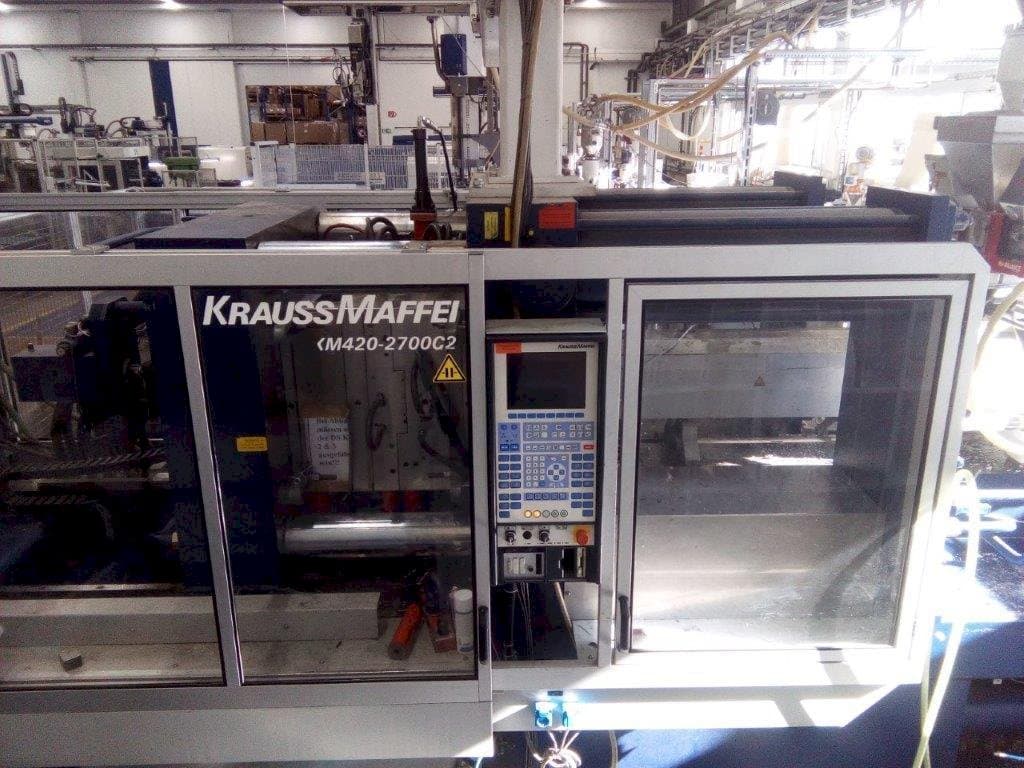

Front view of Krauss Maffei KM 420/2700 C2 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei KM 420/2700 C2

Photo Gallery

Krauss Maffei - KM 420/2700 C2DE-INJ-KRA-2000-00009

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei KM 420/2700 C2 Injection moulding machine

Show in original language

This Krauss Maffei KM 420/2700 C2 Injection moulding machine was manufactured in 2000 and has 74842 hours. It is equipped with a Krauss Maffei control unit. The machine has a clamping force of 4200 kN and includes a Sepro Robot.

Overview

brand: Krauss Maffei
year: 2000
MODEL: KM 420/2700 C2
production hours: 74842
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei KM 420/2700 C2

General Data

Measurements width: 6380 mm
Measurements depth: 2330 mm
Measurements height: 2480 mm
Machine weight: 22000 kg

Control Unit

Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 70 mm
Injection pressure: 1778 bar

Clamping unit

Clamping force: 4200 kn
Opening stroke: 1020
Mould height max: 380 mm
Ejector force for / back: 95

Additional Information

Additional equipment

Sepro Robot

Machine Benefits

Technical Machine Benefits

Clear column distance: 800 - 800 mm
Increased opening force: 250
Max. Distance of clamping platens: 1400
Size of the clamping plates: 1270 - 1270
Ejector travel: 250
Axis: 3 mechanical and 2 pneumatic

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
