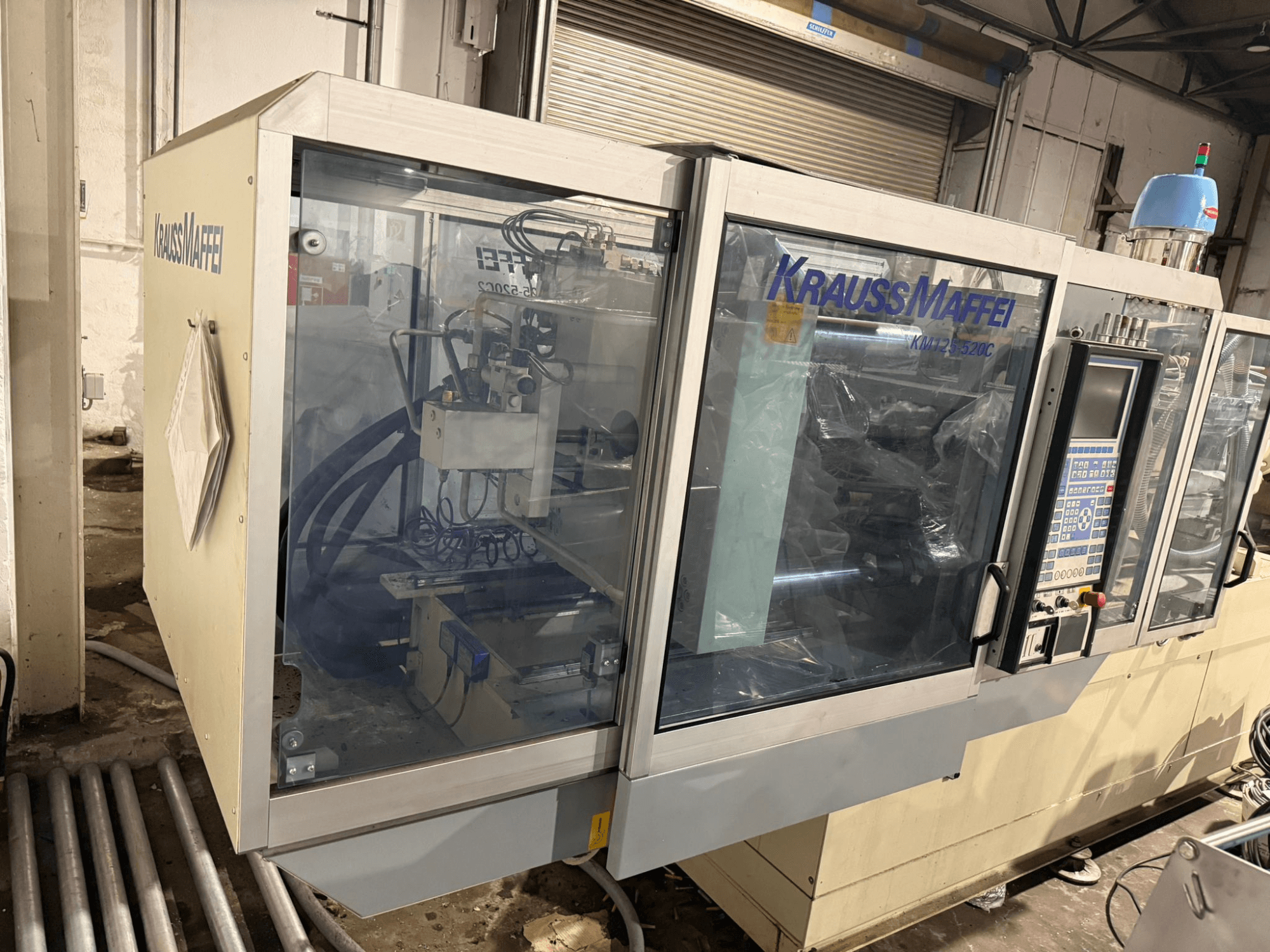

Krauss Maffei - KM125-520C2DE-INJ-KRA-2003-00008

• Opening force: 35 / 28 kN

• Tie bar spacing (H × V): 470 × 470 mm

• Mould installation height min.: 300 mm

• Opening stroke: 900 mm

• Ejector stroke: 150 mm

• Ejector force: 22 / 10 kN

• Injection unit: SP 520

• Screw diameter options: 35 / 40 / 45 mm

• Shot volume: approx. 156 / 204 / 258 cm³

• Injection pressure: up to approx. 1800+ bar (depending on screw)

• Screw speed: approx. 391 / 489 rpm

• Plasticizing rate (PS): approx. 22–41 g/s (depending on screw)

• Pump motor power: 18.5 kW

• Installed heating capacity: 13 kW

• Oil filling quantity: 345 l

• Max. mould weight: 1485 kg

• Power supply: 3 phases

• Operating voltage: 400 V

• Frequency: 50 Hz

Additional equipment

• Cooler (included)
