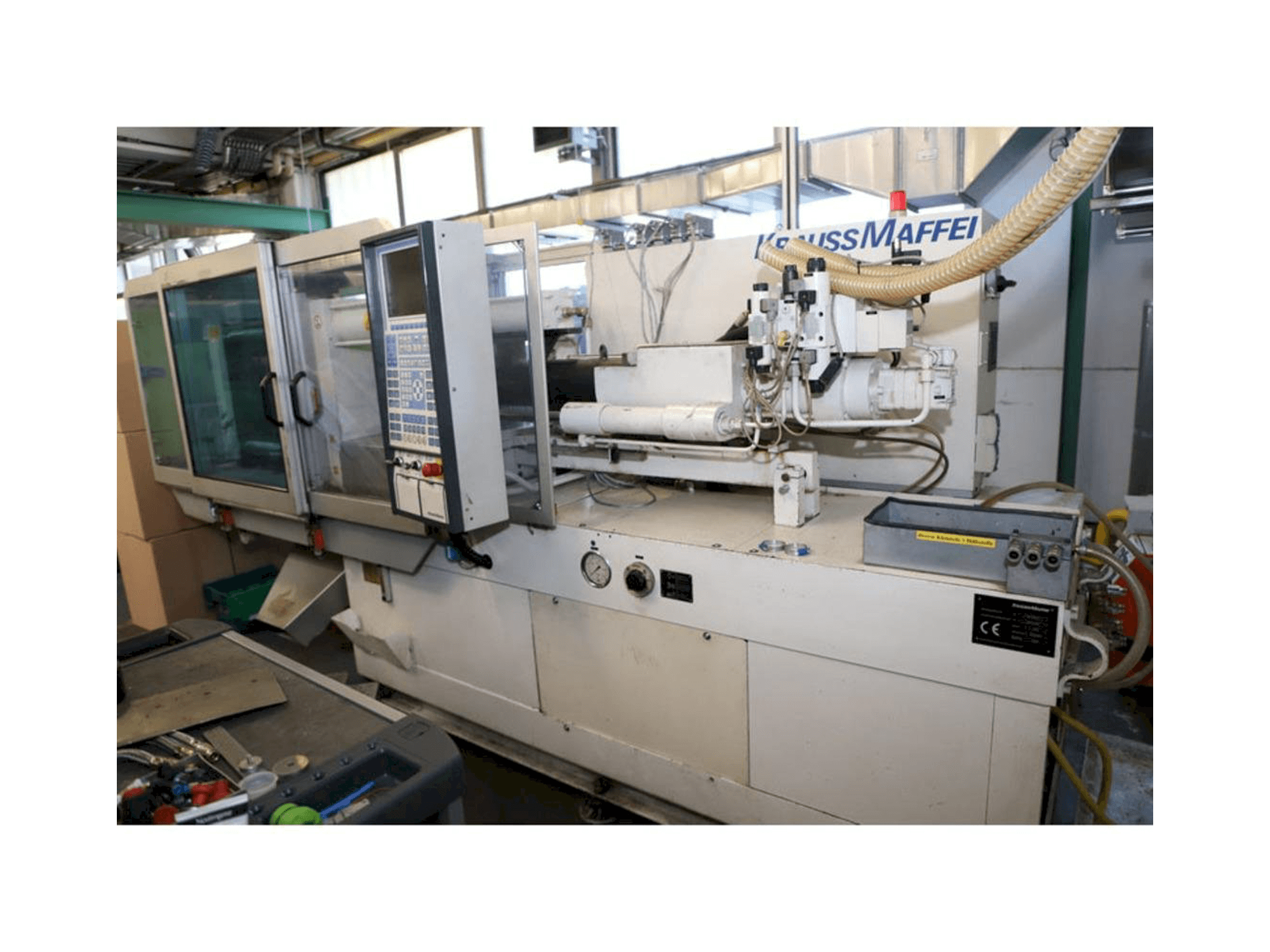

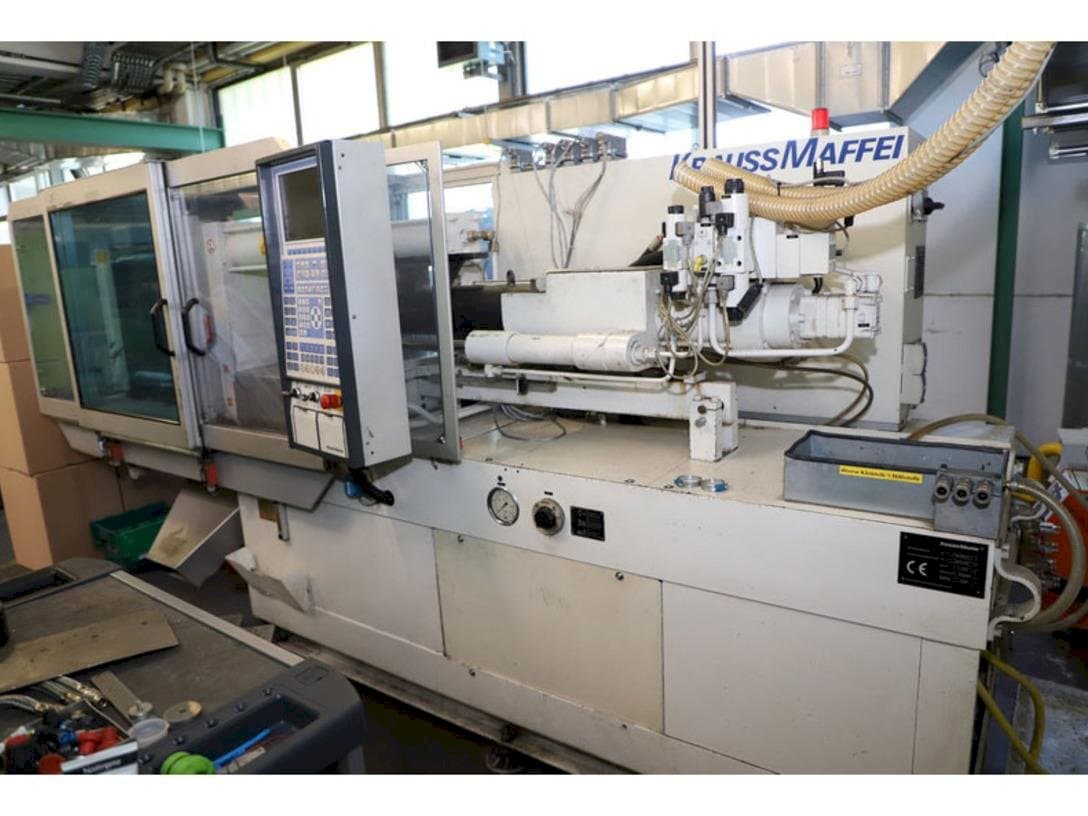

Right side view of Krauss Maffei 65-220 C1  machine

Krauss Maffei - 65-220 C1AT-INJ-KRA-2004-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Kraus Maffei 65-220 C1 Injection moulding machine was manufactured in the year 2004 and has 74458 production hours. It is equipped with a Krauss Maffei control unit. The machine has a clamping force of 650 kN and screw diameter of 15 mm.

Overview

  • brand: Krauss Maffei
  • year: 2004
  • MODEL: 65-220 C1
  • production hours: 74458
  • application type: Injection Moulding
  • Location: Austria
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Sold
  • control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 65-220 C1

General Data

  • Machine weight: 2960 kg

Control Unit

  • Brand: KRAUSS MAFFEI

Injection Unit

  • Screw diameter: 15 mm
  • Stroke volume: 21.4 CM³
  • Injection pressure: 2600 bar

Clamping unit

  • Clamping force: 650 kN
  • Distance between bars: 405 x 405 mm
  • Mould height min: 250 mm
  • Mould height max: 750 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Core pull: 1x hydraulic, 1x pneumatic ready for use: yes
      • - Clamping area: 400x610 mm
      • - Clear tie bar width: 405x405 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
