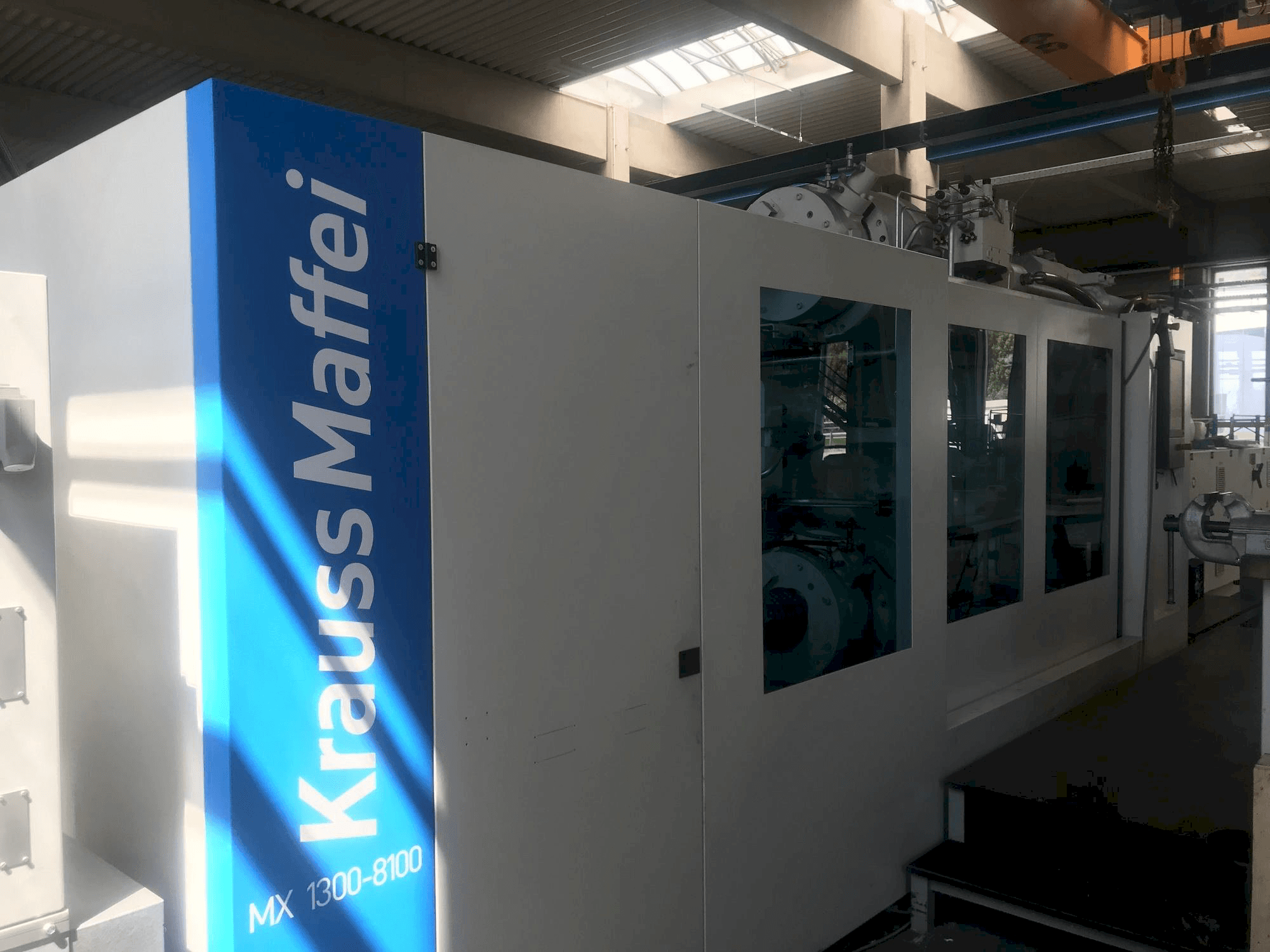

Front view of Krauss Maffei 1300-8100 MX machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 1300-8100 MX

Photo Gallery

Krauss Maffei - 1300-8100 MXDE-INJ-KRA-2014-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 1300-8100 MX Injection Moulding Machine

Show in original language

This Krauss Maffei 1300-8100 MX Injection Moulding Machine was built in 2014 in Germany and counts with 13826 production hours. This machine can perform with a clamping force of 13000 kN and a screw diameter of 95 mm.

Overview

brand: Krauss Maffei
year: 2014
MODEL: 1300-8100 MX
production hours: 13826
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Krauss Maffei 1300-8100 MX

Tools

Max weight: 12500 kg

Injection Unit

Screw diameter: 95 mm
Shot weight: 3386g (PS)
Stroke volume: 3721 CM³
Injection pressure: 2172 bar

Clamping unit

Clamping force: 13000 kN
Opening stroke: 2350 mm
Mould height min: 700 mm
Mould height max: 1400 mm
Ejector stroke: 350 mm

Additional equipment

- ABB arm robot (incl. gripper quick change unit)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Compressor unit for nitrogen and co2
- - Permanently active back pressure control (screw position control)
- - Hydraulic pressure accumulators (batteries) for fast injection
- - Hydraulic machine shut-off nozzle
- - 16 stamping steps for stamping and precision opening
Qualitative Machine Benefits:
- - Interface for mold wall temperature, as start signal for injection
- - Part storage on cooling line

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
