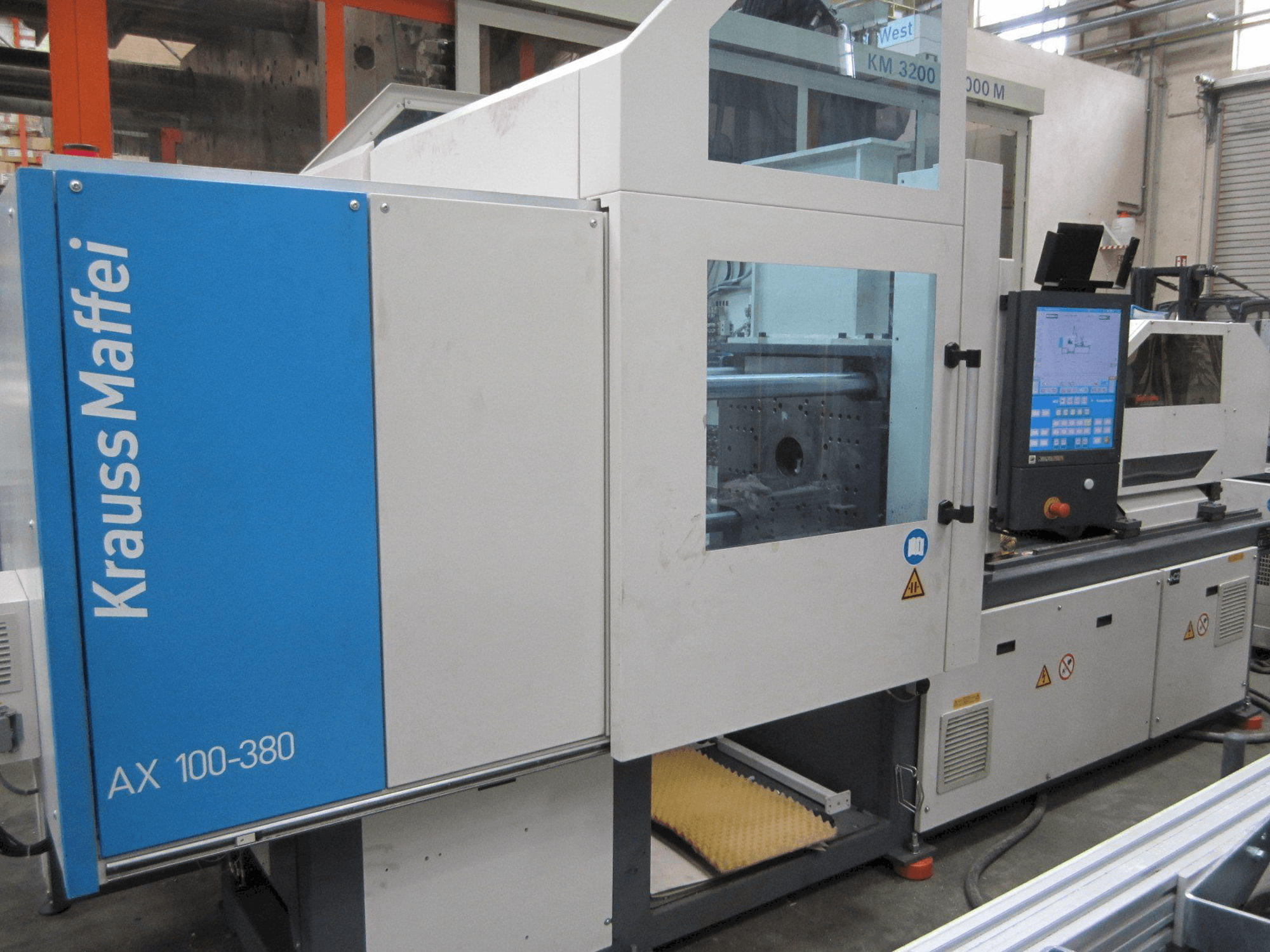

Front view of Krauss Maffei 100-380 AX machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 100-380 AX

Photo Gallery

Krauss Maffei - 100-380 AXDE-INJ-KRA-2011-00003

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Krauss Maffei 100-380 AX - Injection Moulding Machine

Show in original language

This Krauss Maffei 100-380 AX Injection Moulding Machine was manufactured in Germany in 2011. This machine can operate with a clamping force of 1000 kN and an injection pressure of 1854 bar.

Overview

brand: Krauss Maffei
year: 2011
MODEL: 100-380 AX
production hours: 14063
application type: Injection Moulding
Location: Germany
machine type: Electrical Injection Moulding Machine
availability: Sold

Technical Information - Krauss Maffei 100-380 AX

General Data

Measurements width: 5250 mm
Measurements depth: 2300 mm
Measurements height: 2550 mm
Machine weight: 5.700Kg

Injection Unit

Shot weight: 183 g
Stroke volume: 201 CM³
Injection pressure: 1854 bar

Clamping unit

Clamping force: 1000 kN
Max open daylight: 900 mm
Distance between bars: 460/410 mm
Ejector stroke: 90 mm
Ejector force for / back: 30 KN

Media

Main electronic connection: 400V / 50Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Nozzle cap
- - Injection-compression moulding circuit
- - Conveyor belt
- - 1000 mm, servo motor driven
- - Demoulding stroke (x-axis) with motor brake
- - Load capacity < 5 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
