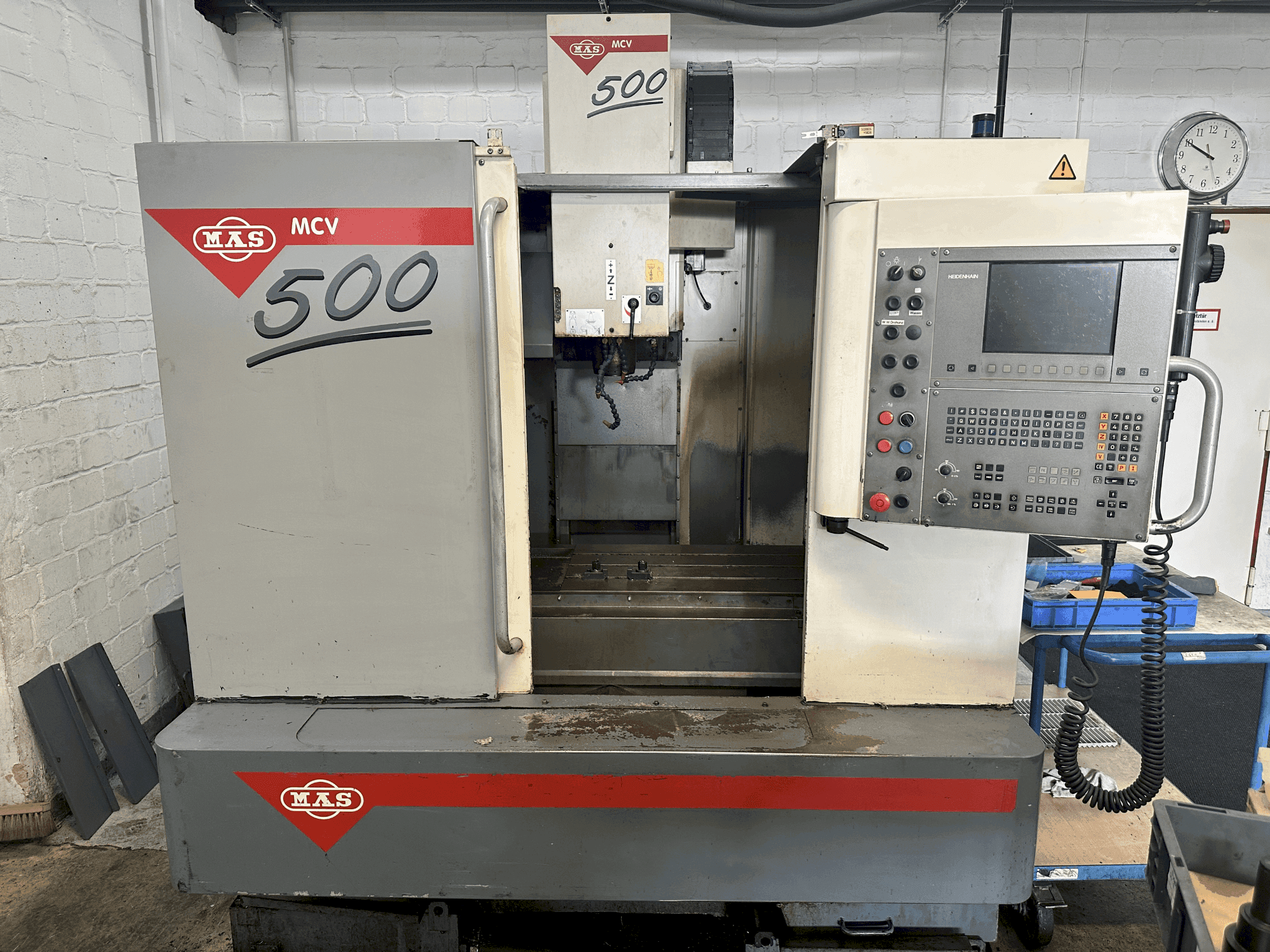

This 3-axis KOVOSVIT MAS MCV 500 vertical machining centre was manufactured in 2002. It features a robust table with dimensions of 800x500mm, capable of handling a maximum load of 400kg. The spindle supports a speed range of 20-8000 rpm and a rapid feed of 25000 mm/min. The tool magazine holds 20 positions. Ideal for precision machining, the KOVOSVIT MAS MCV 500 machine we have for sale. Contact us for further details regarding this vertical machining centre.

Overview

  • brand: KOVOSVIT MAS
  • year: 2002
  • MODEL: MCV 500
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Immediately

Technical Information - KOVOSVIT MAS MCV 500

General Data

  • Measurements width: 2390 mm
  • Measurements depth: 2320 mm
  • Measurements height: 2560 mm
  • Machine weight: 3800 kg

Main drive

  • Number of spindles: 1
  • Spindle speed range: 8000 RPM 1/MIN
  • Tool taper: 40 (7:24)
  • Number of axis: 3

Movement

  • X-AXIS Movement: 500 mm
  • Y-AXIS Movement: 500 mm
  • Z-AXIS Movement: 500 mm

Table

  • Number of tslots: 3
  • Table load: 400 kg

    Additional equipment

    • - Diameter when drilling into solid steel with strength 600 MPa with drill made of RO: 25 mm
    • - Tool Shanks: CSN 220434
    • - Spindle Diameter for Bearing: 70 mm
    • - Spindle Distance from Table Surface: 150-650 mm
    • - Rapid Feed: 25000 mm/min
    • - Feed Rate: 1-5000 mm/min
    • - Working Pressure: 0.6 MPa
    • - Tool Magazine: Max. tool diameter: 80 mm, Max. tool weight: 6 kg, Max. tool weight in magazine: 60 kg

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Table size: 800 x 500 mm
        • - Width and pitch of t-slots: 18/125 mm
      • Qualitative Machine Benefits:
        • - Robust construction with a maximum table load of 400 kg, efficient operation with rapid feed of 25000 mm/min

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
