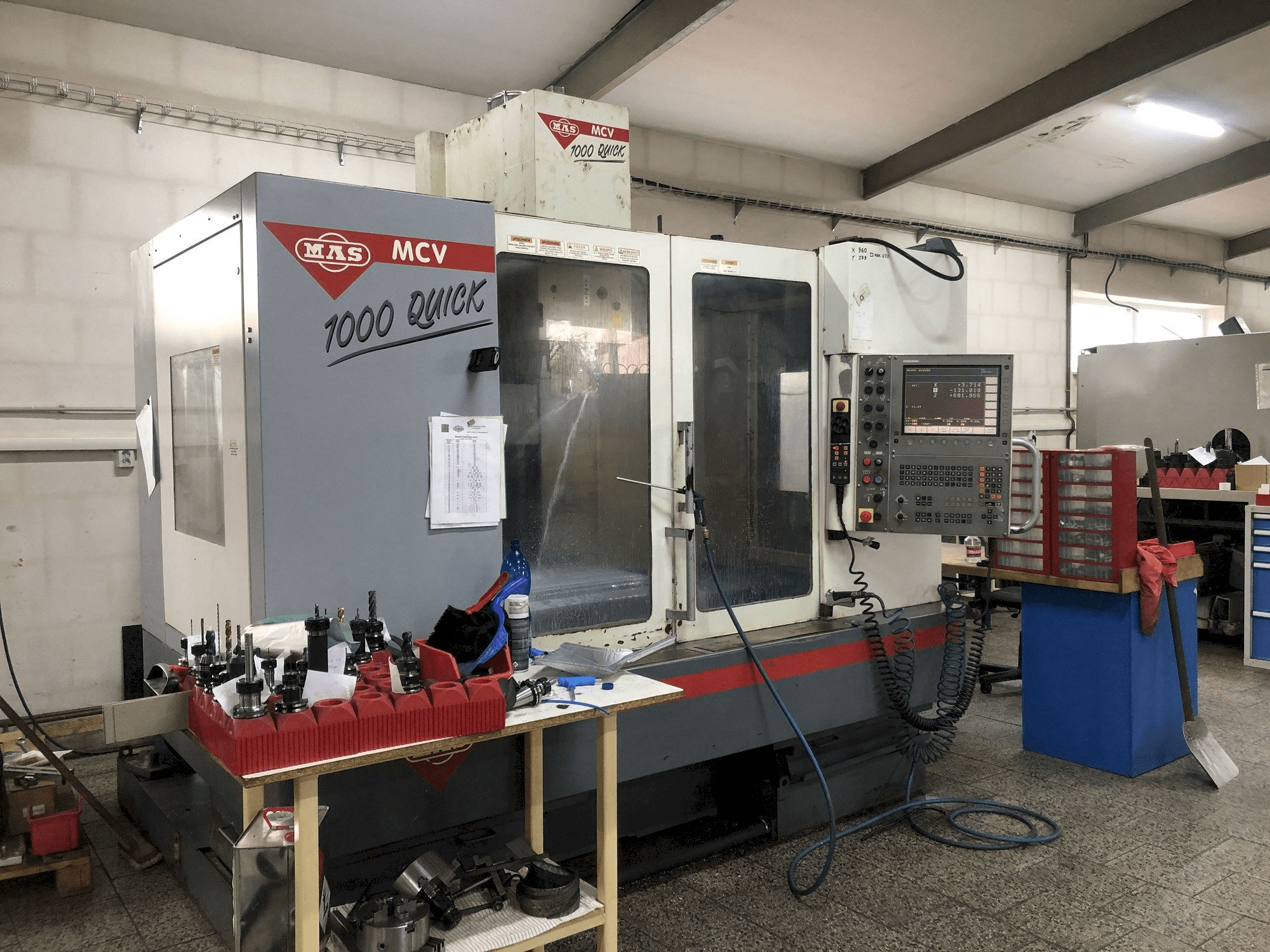

Front view of KOVOSVIT MAS MCV 1000 Quick machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

KOVOSVIT MAS MCV 1000 Quick

Photo Gallery

KOVOSVIT MAS - MCV 1000 QuickCZ-MIL-KOV-2004-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
KOVOSVIT MAS MCV 1000 Quick Milling

Show in original language

This KOVOSVIT MAS MCV 1000 Quick Vertical Machining center was manufactured in 2004. This 3 axis machine is operated through a Heidenhain iTNC 530 control unit. The machine has a spindle speed up to 10000 rpm. The machine is in very good conditions and has been regularly serviced.

Overview

brand: KOVOSVIT MAS
year: 2004
MODEL: MCV 1000 Quick
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KOVOSVIT MAS MCV 1000 Quick

General Data

Measurements width: 3300 mm
Measurements depth: 2350 mm
Measurements height: 2800 mm
Machine weight: 5500 kg

Control Unit

Model: iTNC 530
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Spindle speed range: 10000 1/MIN

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 660 mm

Table

Outer length: 1300 mm
Outer width: 600 mm

Tools

Type of tool holder: ISO 40

Media

Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Machine in very good condition and regularly serviced!
- - 2019: new spindle and spindle motor installed
- - 2018: new ballscrews and rulers on x, y axes
- - 2020: new tool changer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
