KONDIA B1050

Photo Gallery

KONDIA - B1050ES-MIL-KON-2002-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

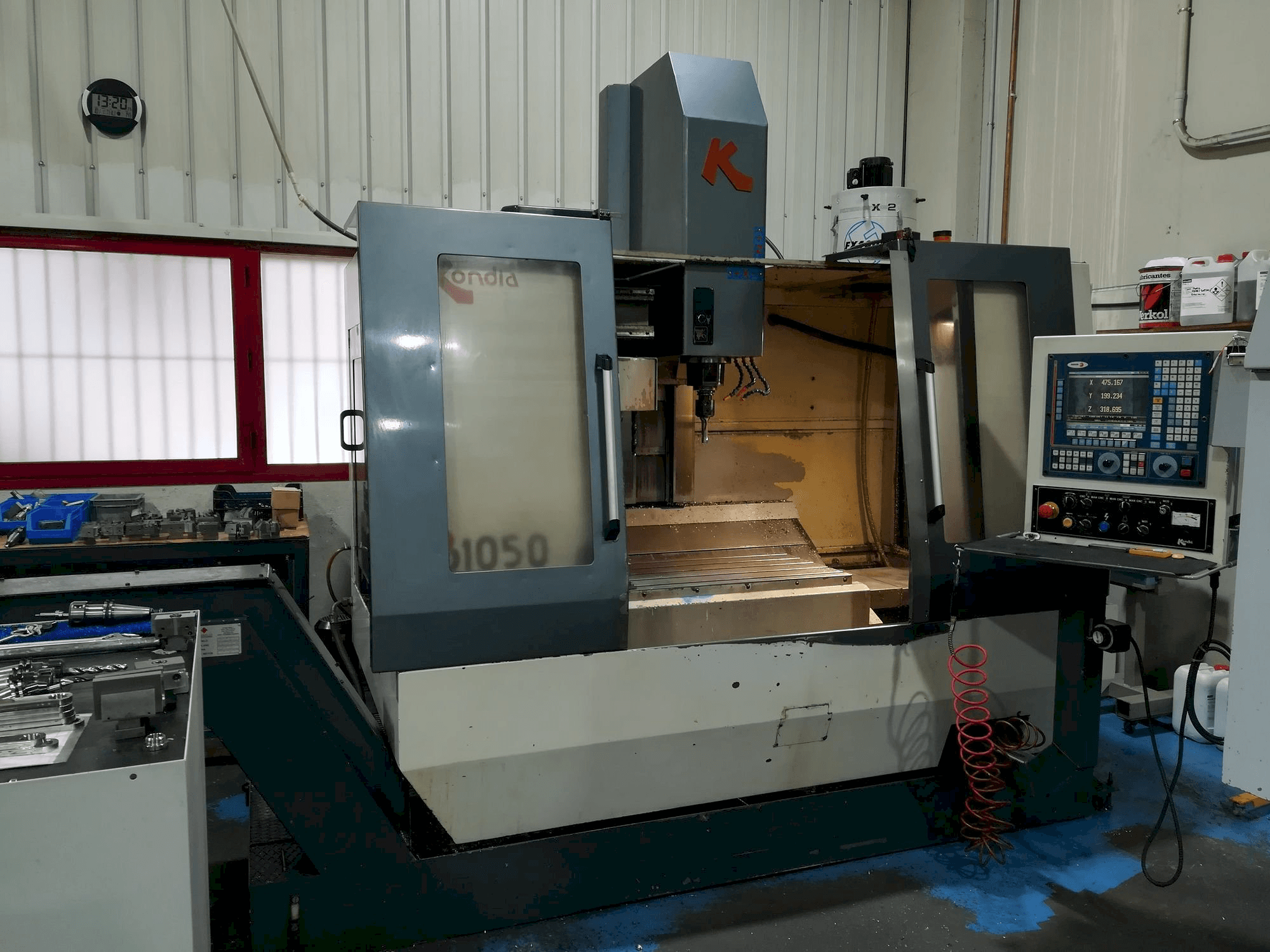

KONDIA B1050 Vertical Machining Center

Show in original language

This KONDIA B1050 Vertical Machining Center from Spain was manufactured in 2002 and has a working time of 12304 hours. Operated through a FAGOR 8055 Power MC Control unit, this machine is capable of working with a spindle speed range of 100-6000 rpm. It stands out for having its lubrication central renewed, as well as all the lubrication tubes replaced. In 2017 it was fully retrofitted, having its X and Y guides rectified and the CNC changed to a newer model. Some additional equipment is included within the delivery.

Overview

brand: KONDIA
year: 2002
MODEL: B1050
production hours: 12304
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FAGOR

Technical Information - KONDIA B1050

General Data

Measurements width: 2450 mm
Measurements depth: 2342 mm
Measurements height: 2870 mm
Machine weight: 5100 kg

Control Unit

Model: 8055 Power MC
CNC main language: Spanish
CNC language customizable: Yes
Brand: FAGOR

Main drive

Number of spindles: 1
Spindle speed range: 100-6000 rpm 1/MIN

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 610 mm
A-AXIS Movement: 225 mm

Workpiece

Workpiece weight: 450 kg

Table

Outer length: 1200 mm
Outer width: 500 mm
Number of tslots: 5
Distance between: 100 mm

Tools

Slots in storage: 22
Max weight: 6 kg
Max tool diameter: 135 mm
Max tool length: 250 mm

Media

Power consumption: 14 kW
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
