➤ Used Kitamura Hx400ig For Sale | gindumac.com

Show in original language

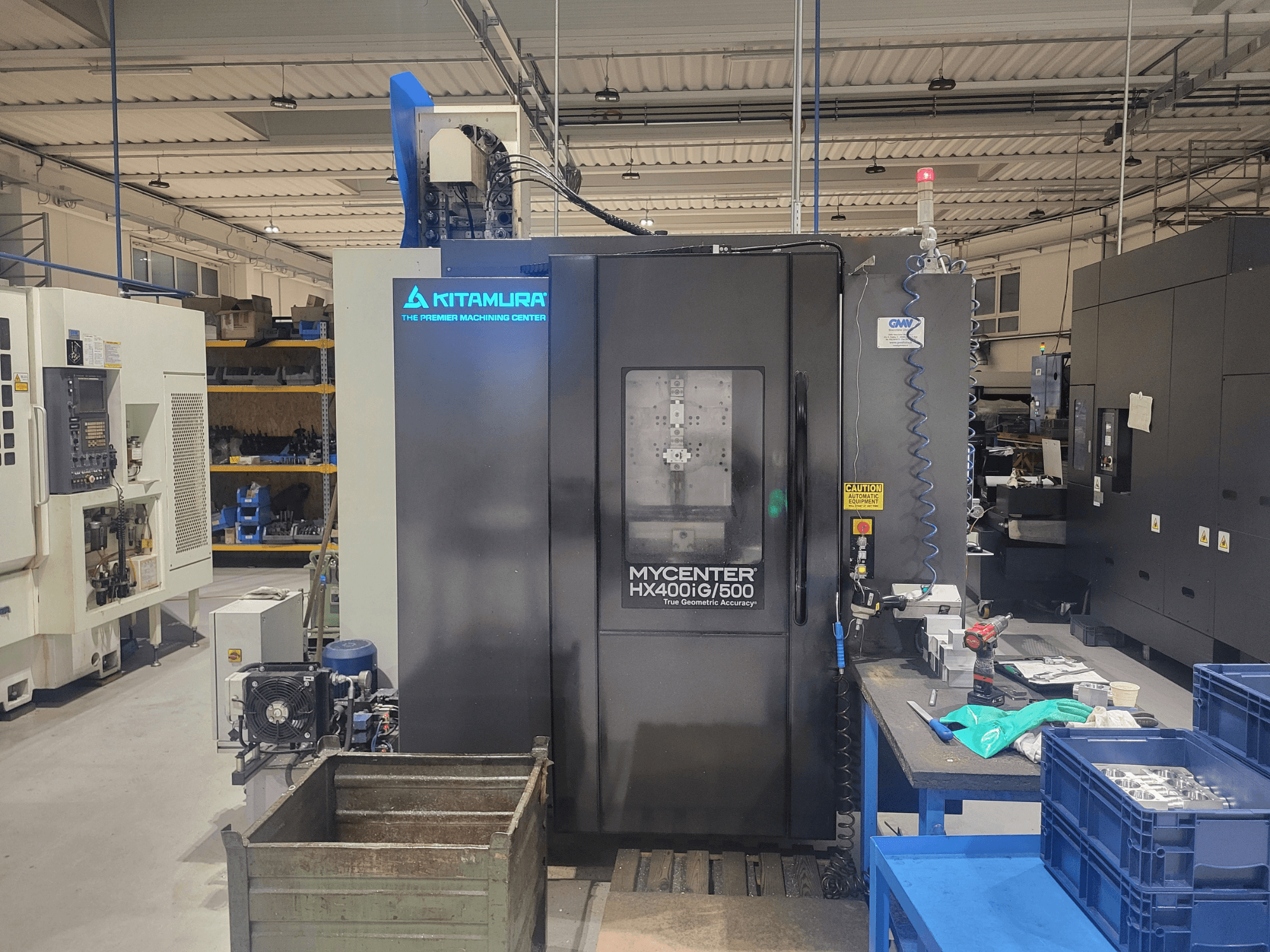

This 4s Kitamura Hx400ig horizontal machining centre was manufactured in 2018. It features impressive X, Y, and Z axis travels of 610 mm, a spindle speed range of 40 – 15,000 rpm, and rapid traverse speeds of 60 m/min. The machine is equipped with box ways for maximum rigidity and offers optional features such as a continuous 4th axis and automatic door opening. Consider the opportunity to buy this Kitamura Hx400ig horizontal machining centre. Contact us for further details.

Overview

brand: Kitamura
year: 2018
MODEL: Hx400ig
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre

Technical Information - Kitamura Hx400ig

Movement

Number of Axes: 4
X-axis Travel: 610 mm
Y-axis Travel: 610 mm
Z-axis Travel: 610 mm

Technical Specification

Spindle Speed: 15000 RPM

Additional Information

Tool magazine capacity: 62 positions (optional)
High-pressure coolant pump 70 bar with through-spindle coolant (optional)
Tool change time: 1.3 s / 2.5 s minimum
Rapid traverse (X/Y/Z): 60 m/min (2,362 ipm)
B-axis rapid speed: 125 min⁻¹ (45,000 deg/min)
Machine equipped with box ways for maximum rigidity
Continuous 4th axis (B-axis) (optional)
Automatic door opening/closing for automation (optional)

Additional equipment

External hydraulic clamping pump for automatic workpiece clamping (never used) (optional)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
