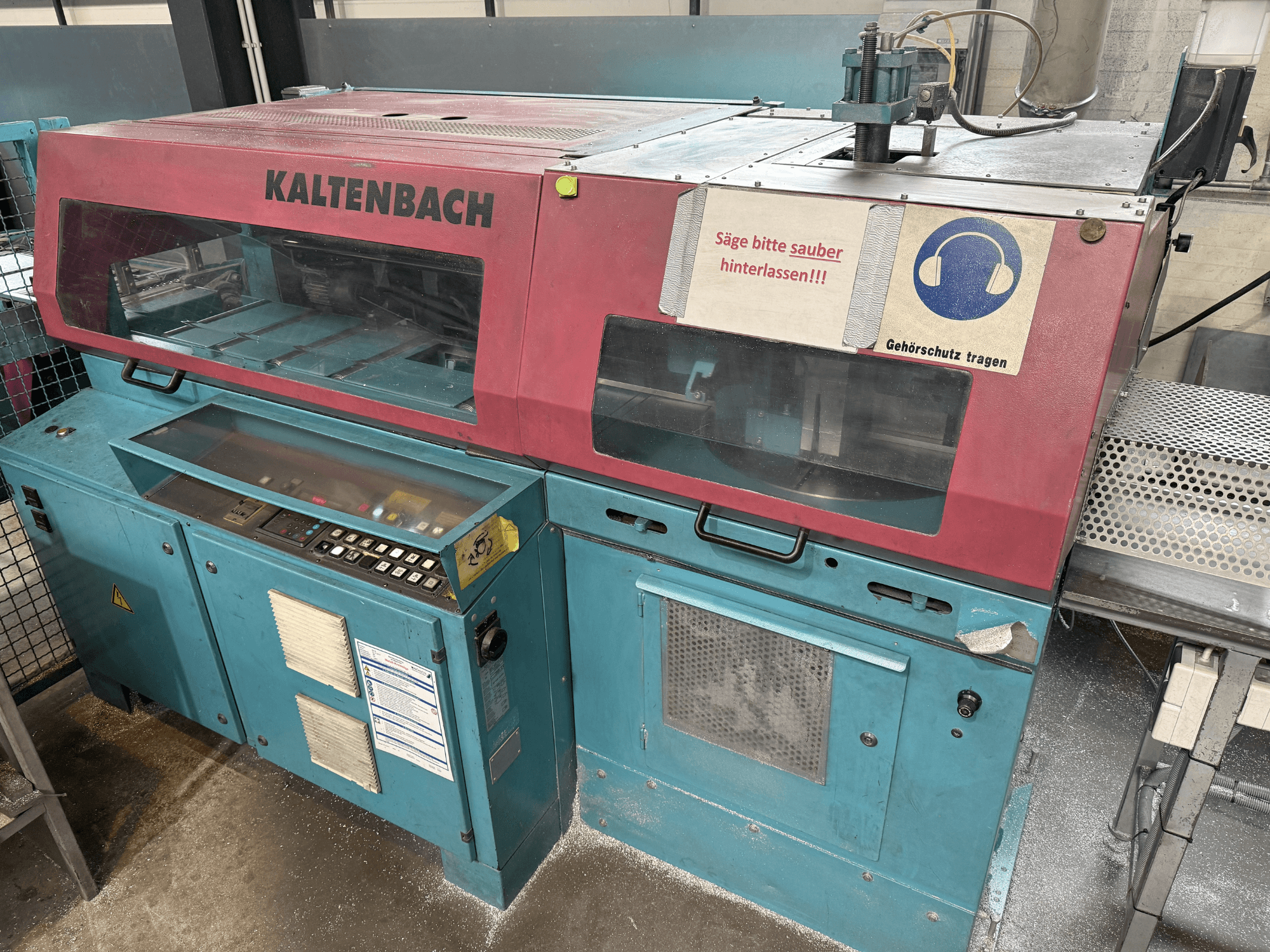

Circular Metal Saw manufactured in 2004. This KALTENBACH SKL450NA features a saw blade diameter of 450 mm and a cutting capacity of 150 mm for round materials. With a weight of approximately 1.5 tons, it includes a loading magazine for enhanced efficiency. If you are looking to get high-quality cutting capabilities, consider the KALTENBACH SKL450NA machine we have for sale. Contact us for further details.
Overview
- brand: KALTENBACH
- year: 2004
- MODEL: SKL450NA
- application type: Sawing
- Location: Germany
- machine type: Circular Metal Saw
Technical Information - KALTENBACH SKL450NA
Dimensions
- Machine Height: 1900 mm
- Machine Length: 2700 mm
- Machine Weight: 1500 kg
- Machine Width: 1450 mm
Additional Information
Total installation length (foundation plan): 3226 mm
Saw blade diameter: 450 mm
Saw blade type: HM / HSS (DIN 8576)
Blade bore: 50 mm
Number of fixing screws: 4
Bolt circle: 80 mm
Fixing screw diameter: M12
Cutting capacity (round): 150 mm
Cutting capacity (rectangular): 140 × 160 mm
Cutting capacity (square): 140 × 140 mm
Saw blade feed speed: 0–3500 mm/min
Rapid return: 4500 mm/min
Cutting speed (at 400 mm blade): 1950 / 3900 m/min
Feed speed (material feed): 10 m/min (optional: 10 / 20 m/min)
Adjustable cut lengths: 10–1000 / 2000 mm
Miter adjustment: Stepless ±90° (manual)
Drive power: 3.7 / 4.7 kW (optional: 4.7 / 6.3 kW)
Compressed air connection: 6–8 bar
Control system: Kaltenbach PLC
Lubrication: Micro spray system
Additional equipment
Loading magazine: T3 / L 45 E
Loading length: 6 m
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
