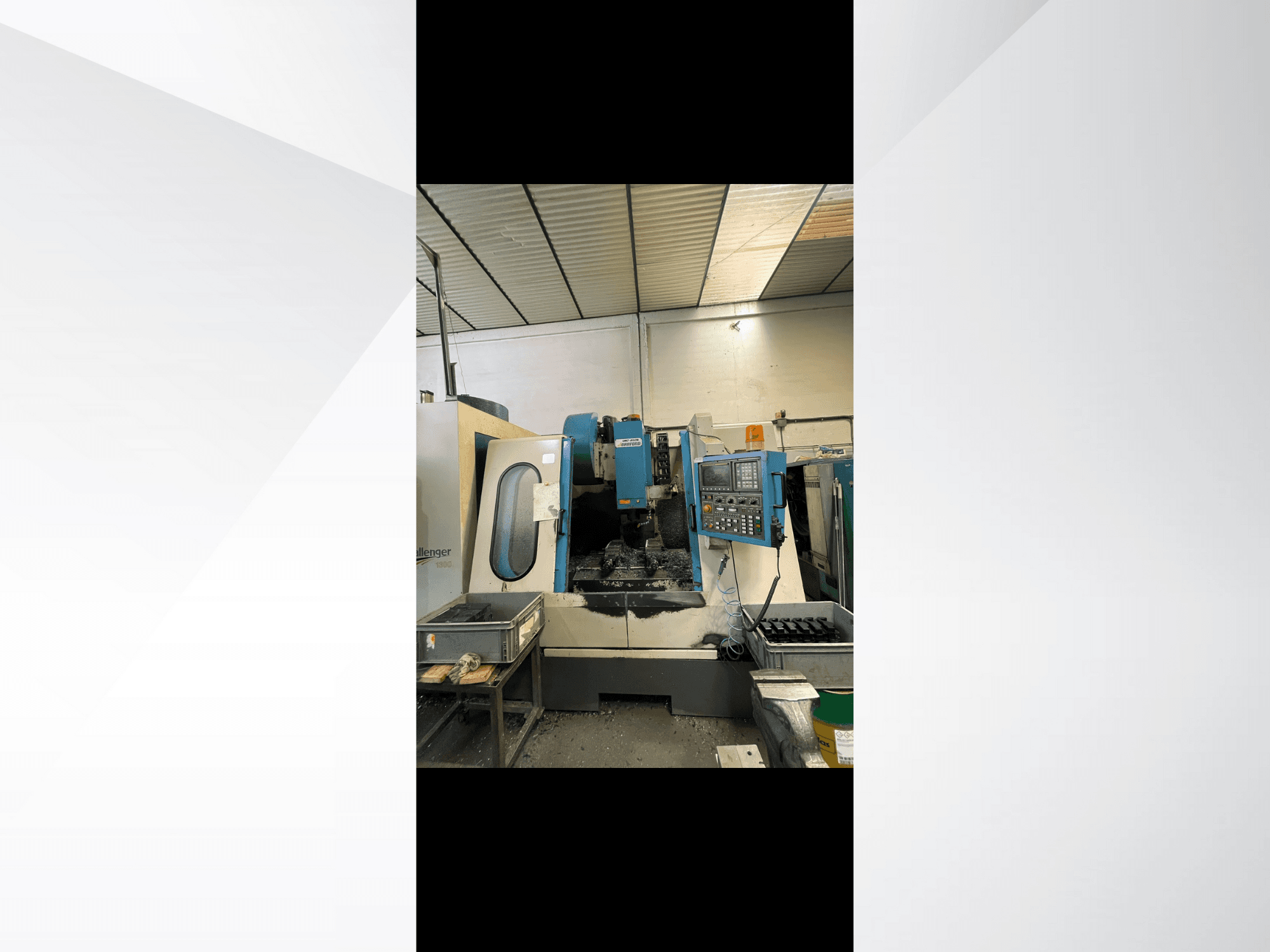

This 3-axis Johnford VMC-850A was manufactured in 1998. It features a robust 800 mm X-axis, 500 mm Y-axis, and 610 mm Z-axis travel, with a table size of 1000 x 500 mm supporting up to 400 kg. Equipped with a BT-40 spindle, achieving speeds up to 8000 rpm, and an automatic tool changer for 24 tools. Ideal for precise and efficient machining. Contact us for more information about this machine.
Overview
- brand: Johnford
- year: 1998
- MODEL: VMC-850A
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - Johnford VMC-850A
Control Unit
- Control Brand: FANUC
Dimensions
- Machine Depth: 2200 mm
- Machine Height: 2700 mm
- Machine Length: 2350 mm
- Machine Weight: 6000 kg
Movement
- X-axis Travel: 800 mm
- Y-axis Travel: 500 mm
- Z-axis Travel: 610 mm
Additional Information
Workpiece capacity: 400 kg (max on table)
Table size: 1000 × 500 mm
Tool changer: Automatic arm style (24 tools typical)
Max tool diameter: 100 mm (limited by adjacent tools)
Max tool length: 320 mm
Spindle taper: BT‑40 (standard)
Max spindle speed: up to 8000 rpm
Spindle drive power: 5.5–7.5 kW
Rapid traverse: 30 m/min (X/Y), 20 m/min (Z)
Coolant system with nozzles
Spindle air blast
LED working lights
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
