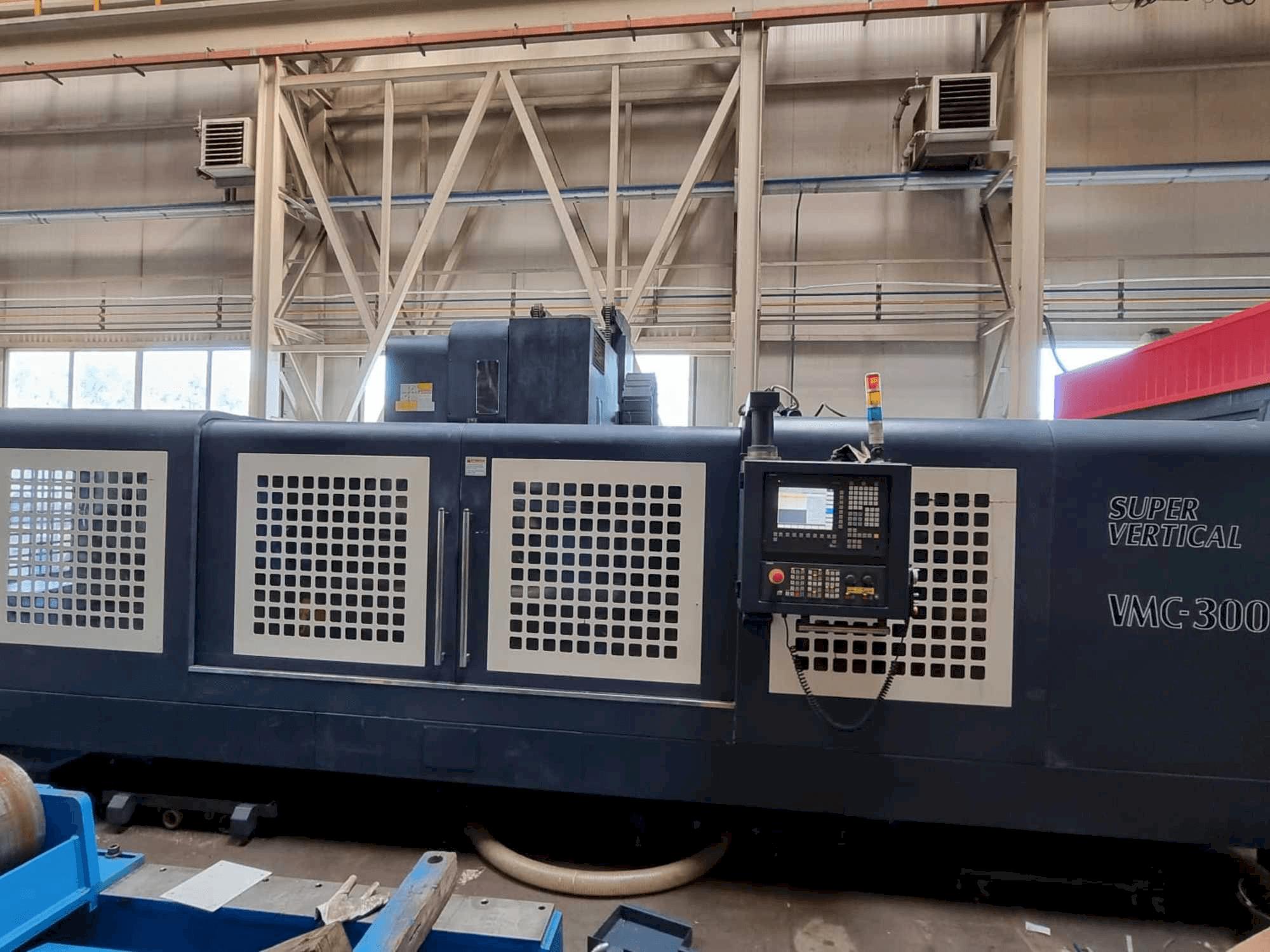

Front view of Johnford VMC-3000S machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Johnford VMC-3000S

Photo Gallery

Johnford - VMC-3000SPL-MIL-JOH-2009-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Johnford VMC-3000S Vertical Machining Center

Show in original language

This Johnford VMC-3000S Vertical Machining Center was built in the year 2009. This 3 axis machine is operated through a Siemens SINUMERIC control unit. It can work with a spindle speed range 80 - 8000 rpm. This machine is in very good working condition, ready for tests.

Overview

brand: Johnford
year: 2009
MODEL: VMC-3000S
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Johnford VMC-3000S

General Data

Measurements width: 7700 mm
Measurements depth: 5330 mm
Measurements height: 3675 mm
Machine weight: 23000 kg

Control Unit

Model: Sinumeric
Brand: SIEMENS

Main drive

Spindle speed range: 80 - 8000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 3050 mm
X-AXIS Rapid traverse: 15 m/min
Y-AXIS Movement: 1100 mm
Y-AXIS Rapid traverse: 15 m/min
Z-AXIS Movement: 800 mm
Z-AXIS Rapid traverse: 12 m/min

Table

Outer length: 3200 mm
Outer width: 1000 mm
Table load: 4800 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose to table 150-950 mm
- - Spindle center to column: 1150 mm
- - Spindle power 15hp (30 min) 10hp (const. )
- - Spindle taper: bt-40/cat-40
- - Spindle dim. 70 mm
- - No. Of tools: 24 pcs
- - Max tool dim. 75 mm
- - Max tool weight 10 kg
Qualitative Machine Benefits:
- - Machine in very good working condition
- - Ready for tests

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
