Johnford SV-48H

Photo Gallery

Johnford - SV-48HES-MIL-JOH-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

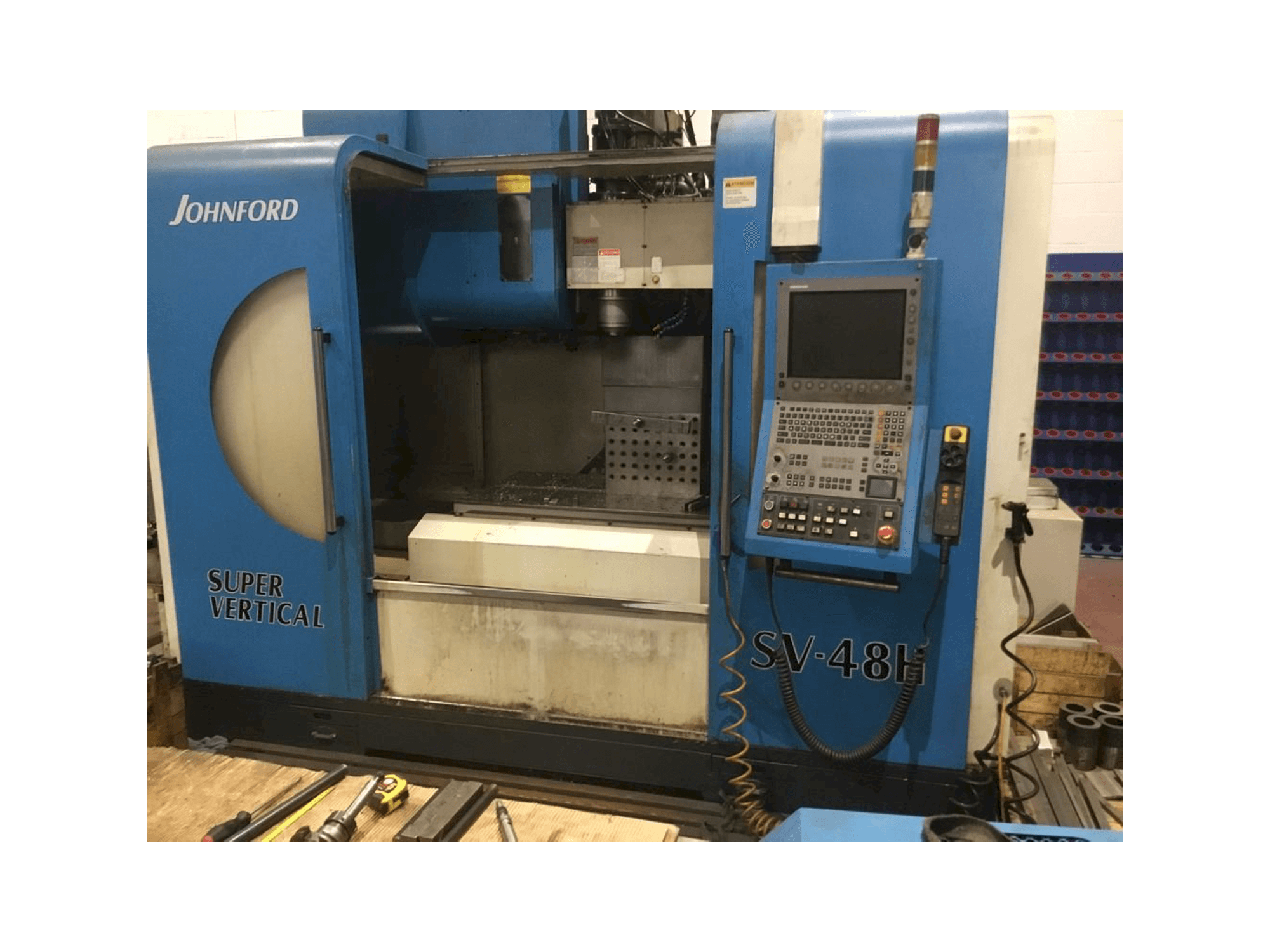

This Johnford SV-48H Vertical Machining Center was built in the year 2008 in Taiwan. It operates through a HEIDENHAIN 530 control unit. This 3 axis machine can work with a spindle speed up to 6000 rpm. It has only been used by two brothers. This machine is very well maintained and works with very good precision.

Overview

brand: Johnford
year: 2008
MODEL: SV-48H
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Johnford SV-48H

Control Unit

Control Brand: HEIDENHAIN
Control Model: 530

Dimensions

Machine Depth: 3200 mm
Machine Weight: 10000 kg
Table Length: 1300 mm
Table Width: 700 mm

Movement

Number of Axes: 3
X-axis Travel: 1220 mm
Y-axis Travel: 710 mm
Z-axis Travel: 630 mm

Technical Specification

Max. Tool Weight: 15 kg
Spindle Speed: 6000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Good status
Maintenance

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
