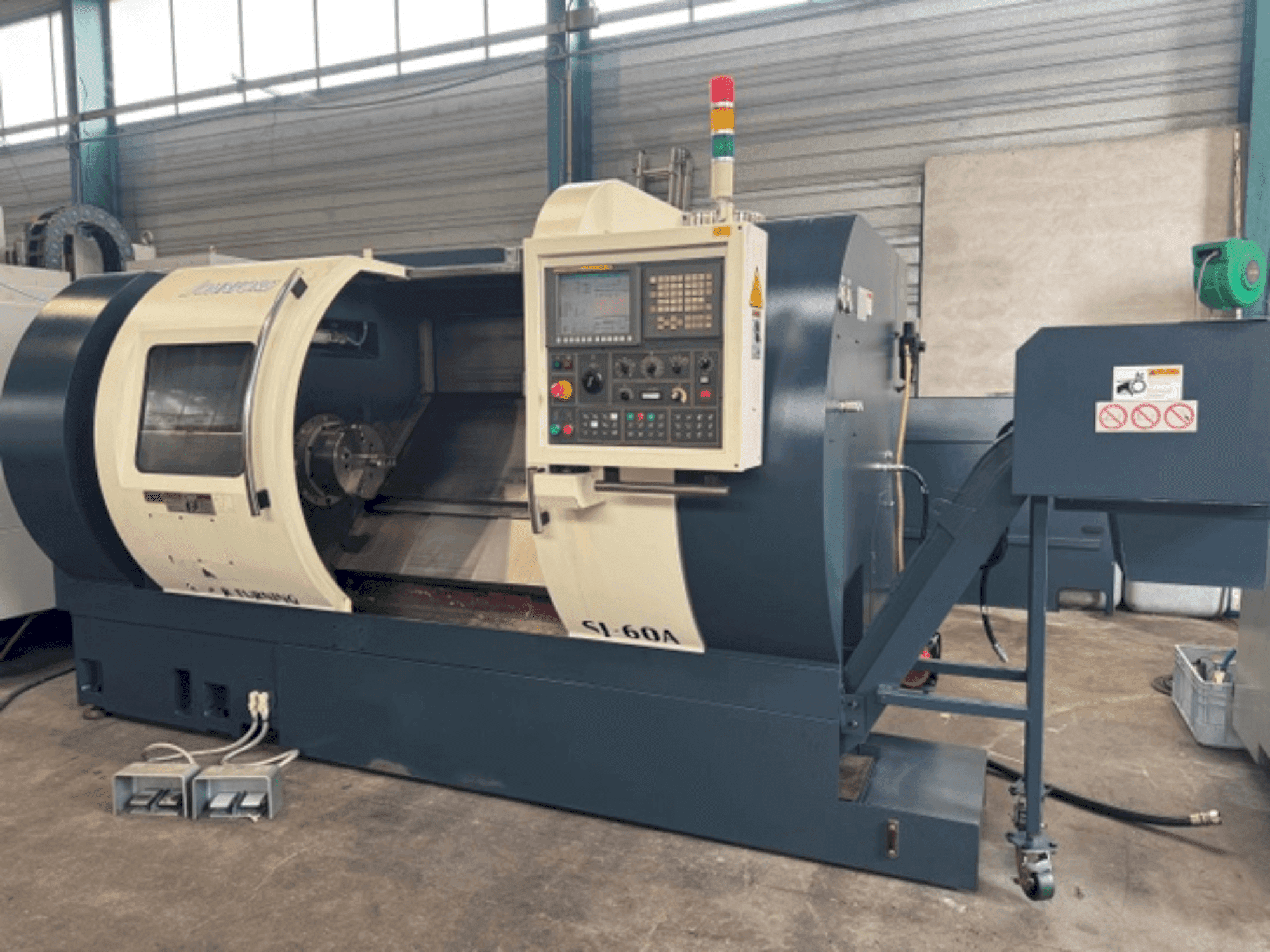

Front view of Johnford SL 60A CS machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Johnford SL 60A CS

Photo Gallery

Johnford - SL 60A CSFR-TUR-JOH-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Johnford SL 60A CS For Sale | gindumac.com

Show in original language

This 3-axis Johnford SL 60A CS was manufactured in 2008. It features a 580 mm passage over bench, 450 mm over carriage, and a bar capacity of 91 mm. The spindle supports speeds up to 3000 rpm with a 22/26 kW motor. Includes a 12-station VDI40 turret, all motorized, and a programmable tailstock with a 900 mm stroke. Equipped with a FANUC Oi-TC CNC, chip conveyor, and a coolant system. Contact us for more information about this machine.

Overview

brand: Johnford
year: 2008
MODEL: SL 60A CS
production hours: 8438
application type: Turning
Location: France
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Johnford SL 60A CS

Control Unit

Brand: FANUC
Model: Series Oi-TC

Main drive

Spindle speed range: 3000 1/MIN
Number of axis: 3

Turret

Tool taper: VDI40

Tools

Number of stations: 12

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Air-conditioned cabinet
3-jaw quick-change hydraulic chuck ø 300 mm, adjustable pressure
Set of hard jaws and large set of soft jaws
Turning point
Lighting system
Coolant system
Centralized lubrication
3-color status light
Full documentation

Machine Benefits

Qualitative Machine Benefits

Machine in excellent condition

Technical Machine Benefits

Passage over bench: 580 mm
Passage over carriage: 450 mm
Bar capacity: 91 mm
12-station vdi40 turret, all motorized
3 radial motorized tool holders
3 axial motorized tool holders
32 axial and radial toolholders
Programmable adjustable pressure tailstock, 900 mm stroke
Quill stroke: 100 mm
Spindle nose: a2-8

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
