Johnford - DMC-1600ES-MIL-JOH-2008-00002
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Johnford DMC-1600 Vertical Machining center

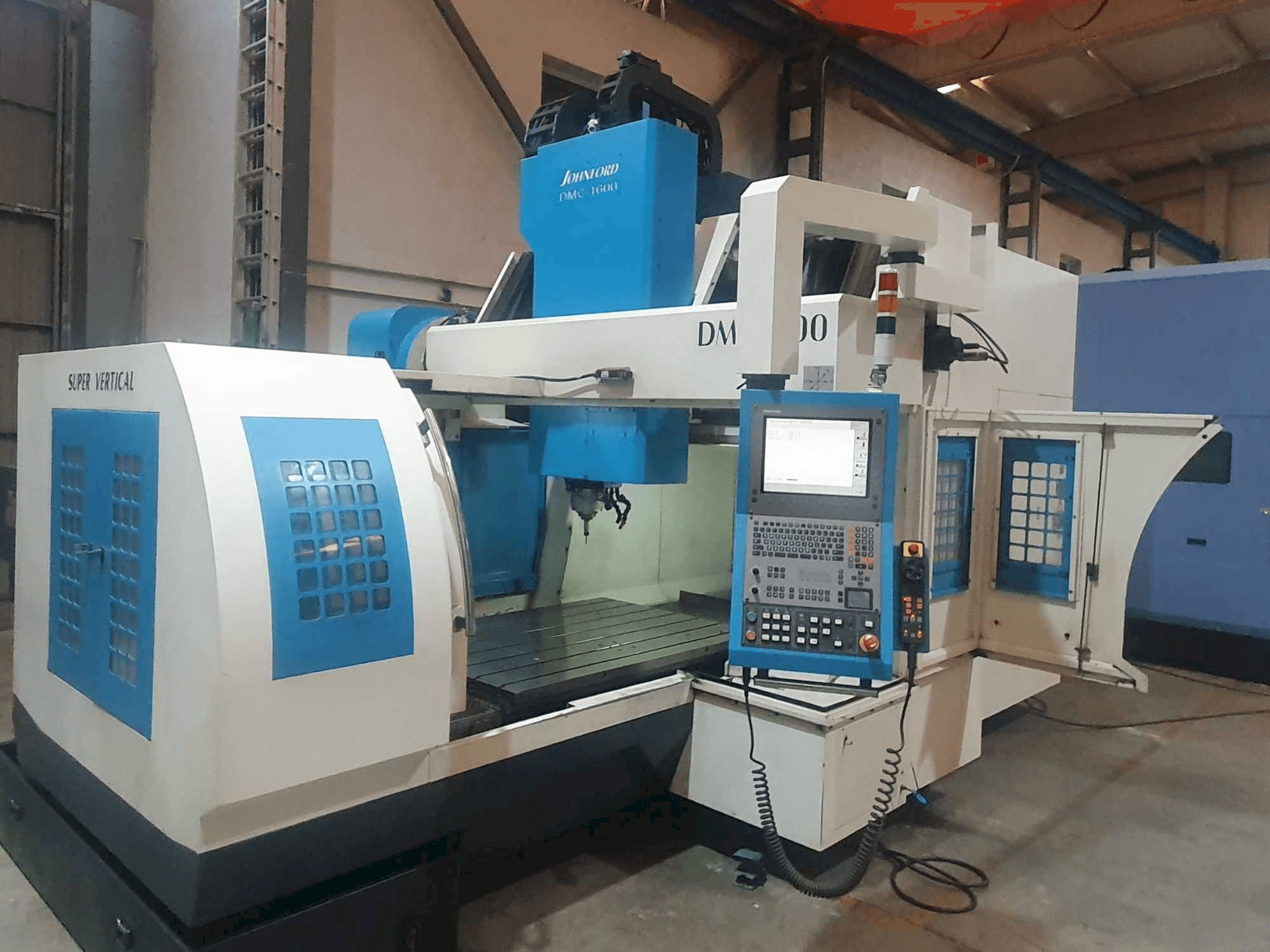

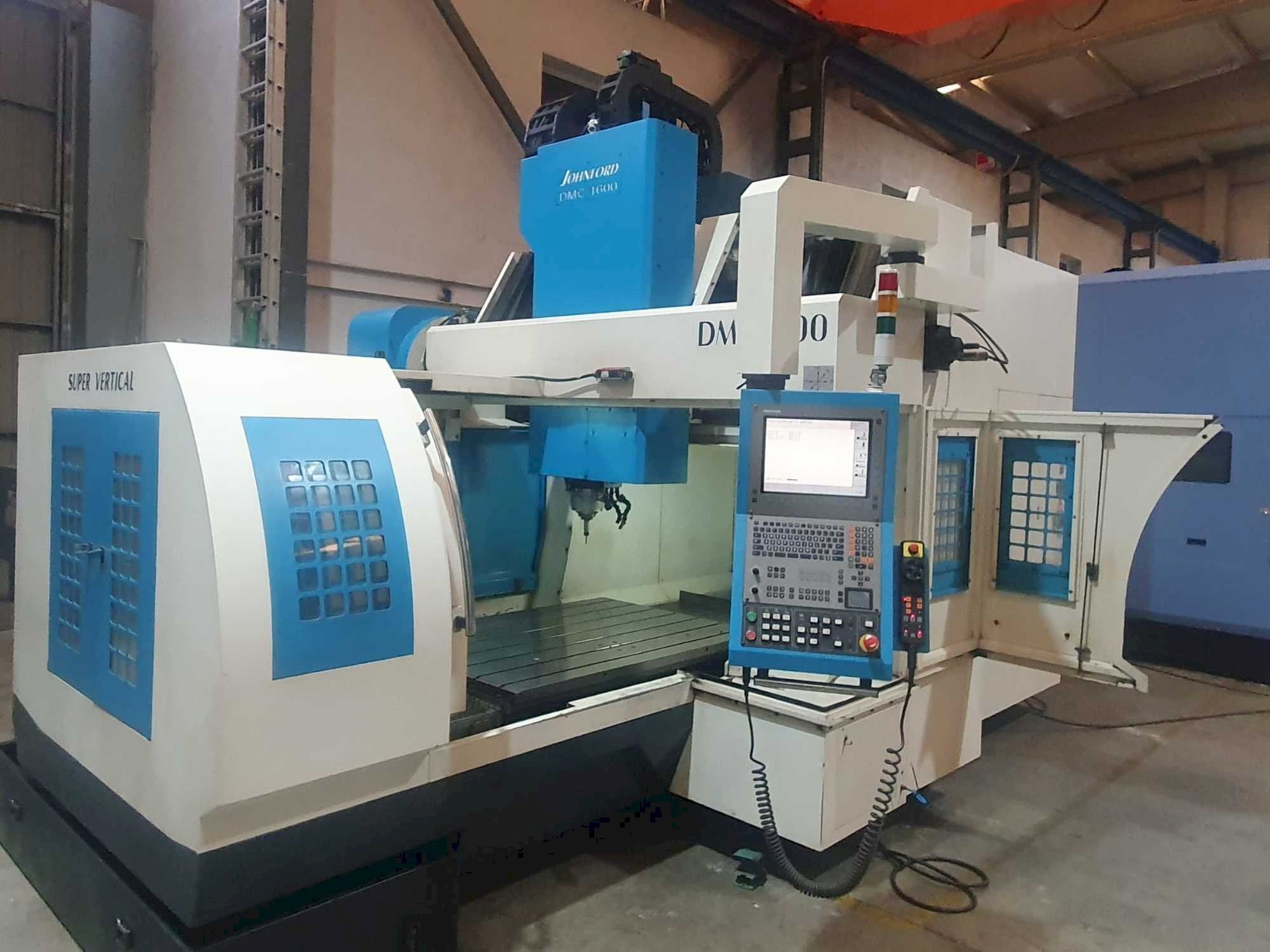

This Johnford DMC-1600 Vertical Machining center was manufactured in the year 2008 in Taiwan. It is equipped with a HEIDENHAIN control unit and has 3 axis.
Overview
- brand: Johnford
- year: 2008
- MODEL: DMC-1600
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - Johnford DMC-1600
General Data
- Measurements width: 5540 mm
- Measurements depth: 3300 mm
- Measurements height: 3800 mm
- Machine weight: 20400 kg
Control Unit
- Model: 530
- Brand: HEIDENHAIN
Main drive
- Number of axis: 3
Movement
- X-AXIS Movement: 1600 mm
- Y-AXIS Movement: 1300 mm
- Z-AXIS Movement: 800 mm
Workpiece
- Workpiece weight: 6000 kg
Tools
- Slots in storage: 24
- Max weight: 10 kg
- Max tool diameter: 100 mm
- Max tool length: 320 mm
- Type of tool holder: BT40
Additional Information
- Qualitative Machine Benefits:
- - Good status
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
Asset Financing
