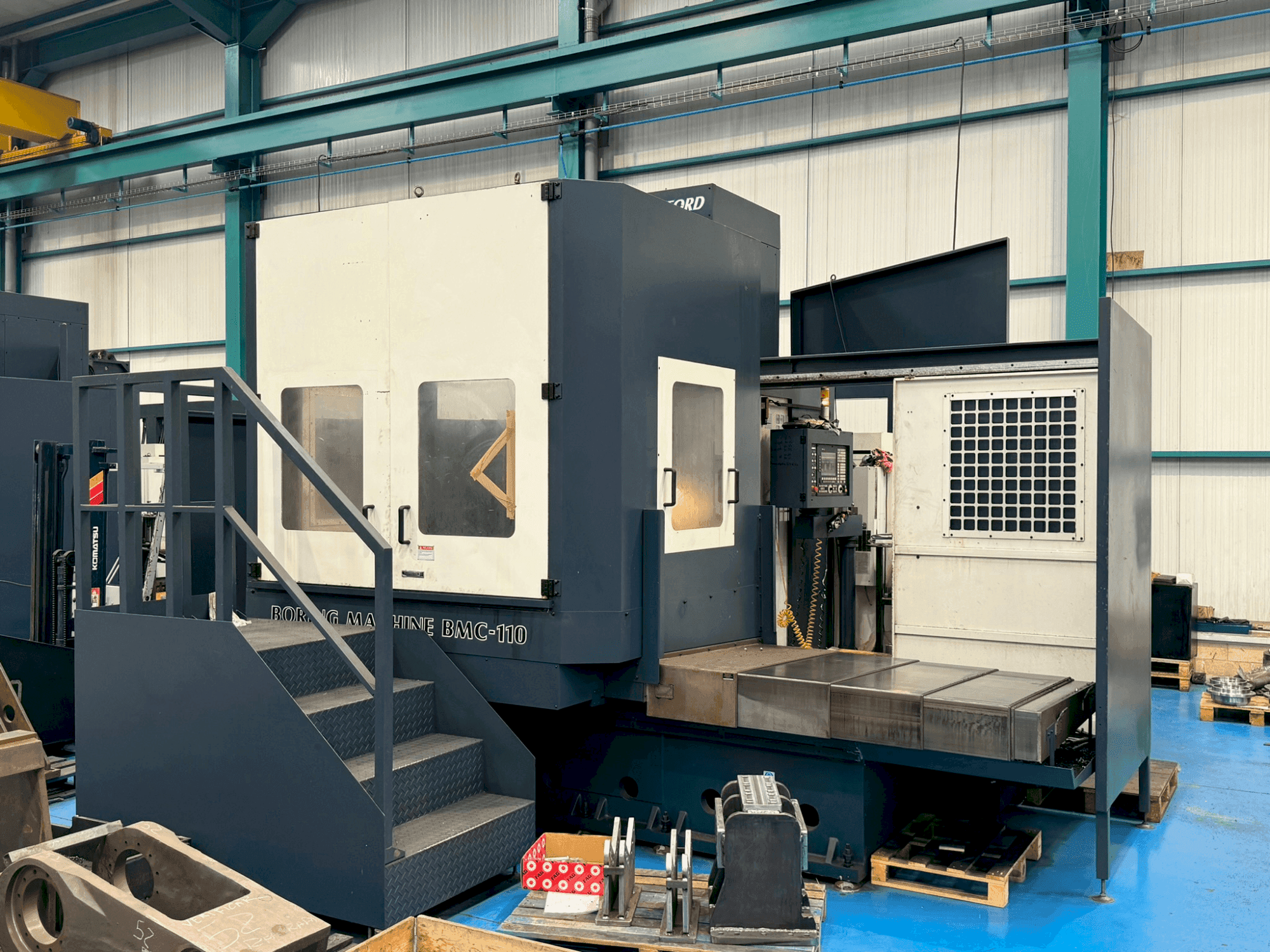

Front view of Johnford BMC 110  machine

Johnford - BMC 110ES-BOR-JOH-2012-00001

Rs. 11,904,650
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis Johnford BMC 110 boring machine was manufactured in 2012. It features a robust table with a 1,400 x 1,600 mm surface and a maximum load capacity of 12,000 kg. Equipped with a high-power spindle, it offers speeds up to 3,000 rpm and a spindle diameter of 110 mm. The machine includes a 60-tool capacity automatic changer and internal coolant at 20 BAR. For those looking to buy this Johnford BMC 110 boring machine, Contact us for further details.

Overview

  • brand: Johnford
  • year: 2012
  • MODEL: BMC 110
  • application type: Other Machine Tools
  • Location: Spain
  • machine type: Boring Machine (Metal)
  • availability: Immediately

Technical Information - Johnford BMC 110

General Data

  • Measurements width: 6200 MM
  • Measurements depth: 7100 MM
  • Measurements height: 3980 MM
  • Machine weight: 27,000 KG

Main drive

  • Spindle speed range: 0-3,000 1/MIN
  • Spindle motor power: 22/25 kw
  • Main motor power: 71 kw

Movement

  • X-AXIS Movement: 2000 mm
  • X-AXIS Working Feed: 12,000 mm/min
  • Y-AXIS Movement: 1800 mm
  • Y-AXIS Working Feed: 12,000 mm/min
  • Z-AXIS Movement: 1600 mm
  • Z-AXIS Working Feed: 12,000 mm/min
  • W-Axis Movement: 550 mm
  • W-Axis Working Feed: 1600 mm/min

Table

  • Outer length: 1400 mm
  • Outer width: 1600 mm
  • Max distance between vertical spindle and table: 1800 mm
  • Table load: Maximum 12,000 kg

Tools

  • Max weight: 25 kg
  • Max tool diameter: 125 mm
  • Max tool length: 400 mm

    Additional equipment

    • - Internal coolant 20 BAR
    • - Double longitudinal chip conveyor
    • - Transversal chip conveyor
    • - Portable Handwheel

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - High load capacity, extensive travel ranges, high rapid feed rates, and cutting speeds.
        • - Table rotation (b axis): continuous (0. 001º).
        • - Boring spindle diameter: 110 mm.
      • Qualitative Machine Benefits:
        • - Precision in continuous table rotation and controlled axes.

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
