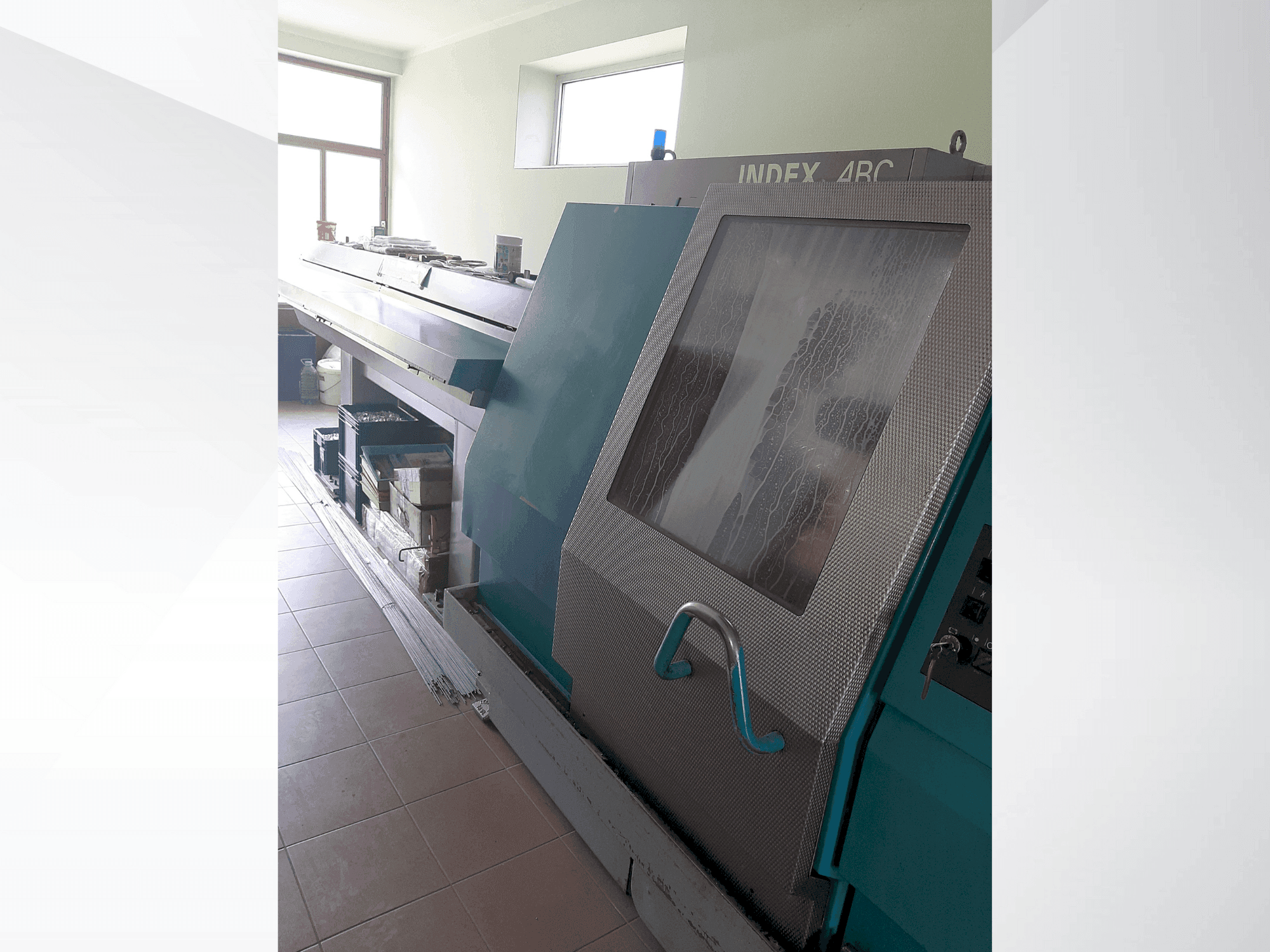

Front view of Index ABC 42  machine

Index ABC 42

Index - ABC 42

1996

Rs. 2,306,050
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 2-Axis lathe, manufactured in 1996, offers precision and versatility. With a turning diameter of 42mm and max. turning length of 280mm, it boasts a Siemens C200-4D control system. Equipped with 2 turrets and a bar loading magazine LM 3200, it facilitates efficient production. Notable features include backside machining in 3 positions and a synchronous spindle on turret 1. Thread milling and polygon turning capability enhance its functionality. For those seeking reliability and performance, consider this INDEX ABC 42 lathe. Contact us for further details.

Overview

  • brand: Index
  • year: 1996
  • MODEL: ABC 42
  • application type: Turning
  • Location: Serbia
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: SIEMENS
  • GINDUMAC ID: RS-TUR-IND-1996-00001

Technical Information

General Data

  • Machine weight: 3000 kg

Control Unit

  • Brand: SIEMENS
  • Model: C200-4D Index

Main drive

  • Spindle speed range: 6300 rpm 1/MIN

Turret

  • Number of turrets: 2

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Number of tool stations: 3
      • - Total power requirement: 27 kw
      • - Tool drive on turret 1 and turret 2 // synchronous spindle on turret 1
      • - Bar loading magazine lm 3200
      • - Turning diameter: 42 mm // turning length: max. 280 mm
      • - Drive power - main spindle: 13 / 21 kw // torque: max. 62 / 102 nm
      • - Spindle diameter in front bearing: 85 mm // spindle passage: 42 mm
      • - C-axis: 2. 5 °
      • - Turret 1 // number of tool stations: 7 + (1) // tool system: din 69880 / 25 mm
      • - Turret 2 // number of tool stations: 6 x-axis: 81 mm // z-axis: 80 mm

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
