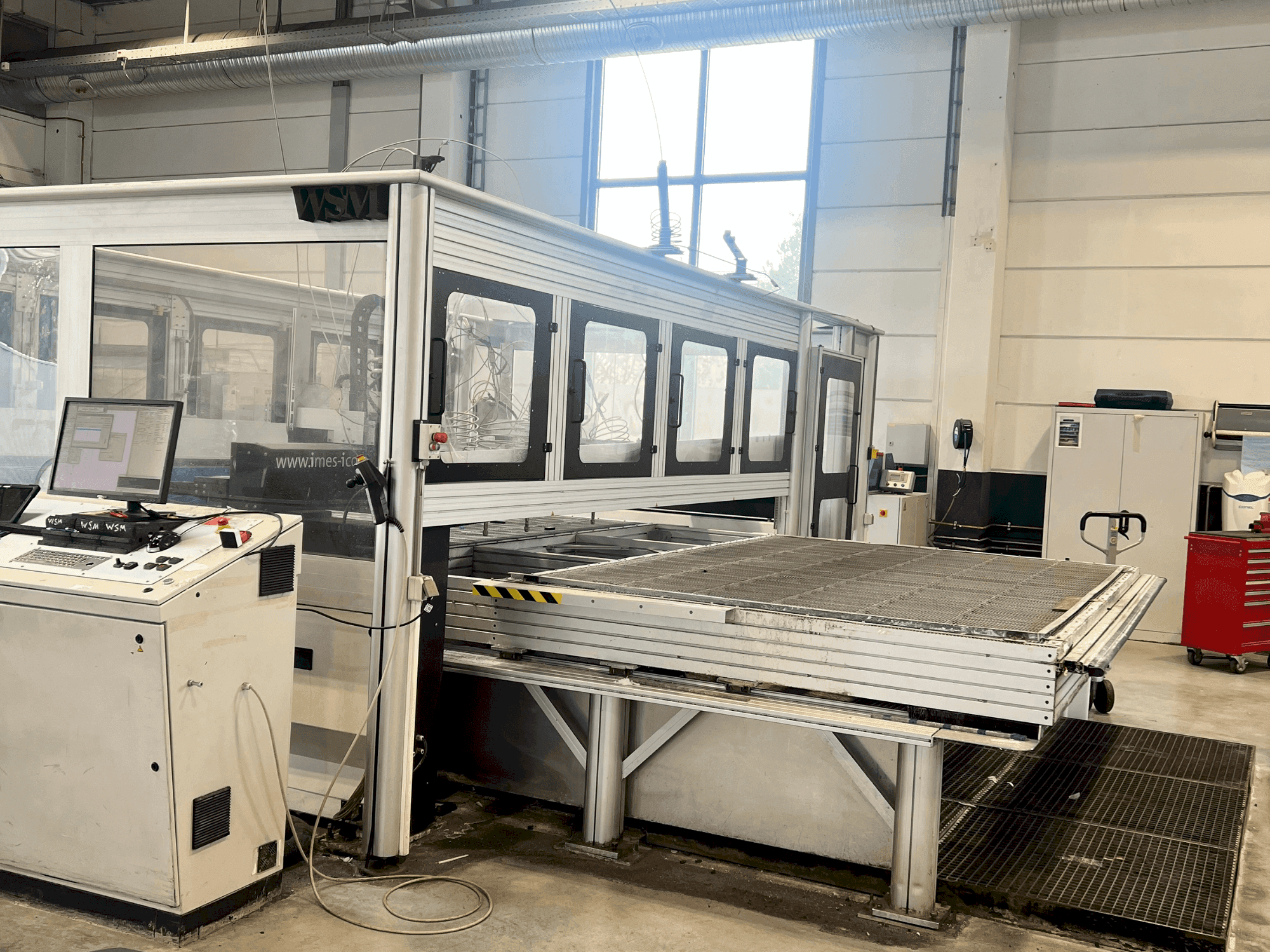

Imes-Icore - CUT matic WJ 3020DE-CUT-IME-2014-00001

Additional equipment

• Table Protected with Plexiglas Panels and Lift Doors
• Equipped with Water Deflectors and Baffles in Tank

Machine Benefits

Technical Machine Benefits

• High precision and accuracy in cutting capabilities
• High precision and accuracy in cutting capabilities
• Comprehensive control with advanced software for better handling
• Highly dynamic linear drives in x and y
• Linear drives mounted on granite bearings in y
• Backlash-free drives with interference-free can bus communication
• 5 manually movable mounts for allfi pure water cutting heads
• Motorized shuttle table with accuracy of 0. 1 mm/m
• Maximum table drive speed: 8000 mm/min

Extra Information

Workpiece Capable of Standard Cuts with Dimensional Accuracy of +/-0.1 mm Rinsing Nozzles for Tank Cleaning Table Motorized in the Y Direction for Loading and Cutting Simultaneously Protected by Safety Mats and a Traveling Ripcord Cutting Machine Accuracy: Positioning Accuracy: +/-0.03 mm/m Repeat Accuracy: +/-0.01 mm Dimensional Accuracy: +/-0.1 mm Maximum Speed (X,Y): 30000 mm/min Surface Roughness: Rz 20-50
