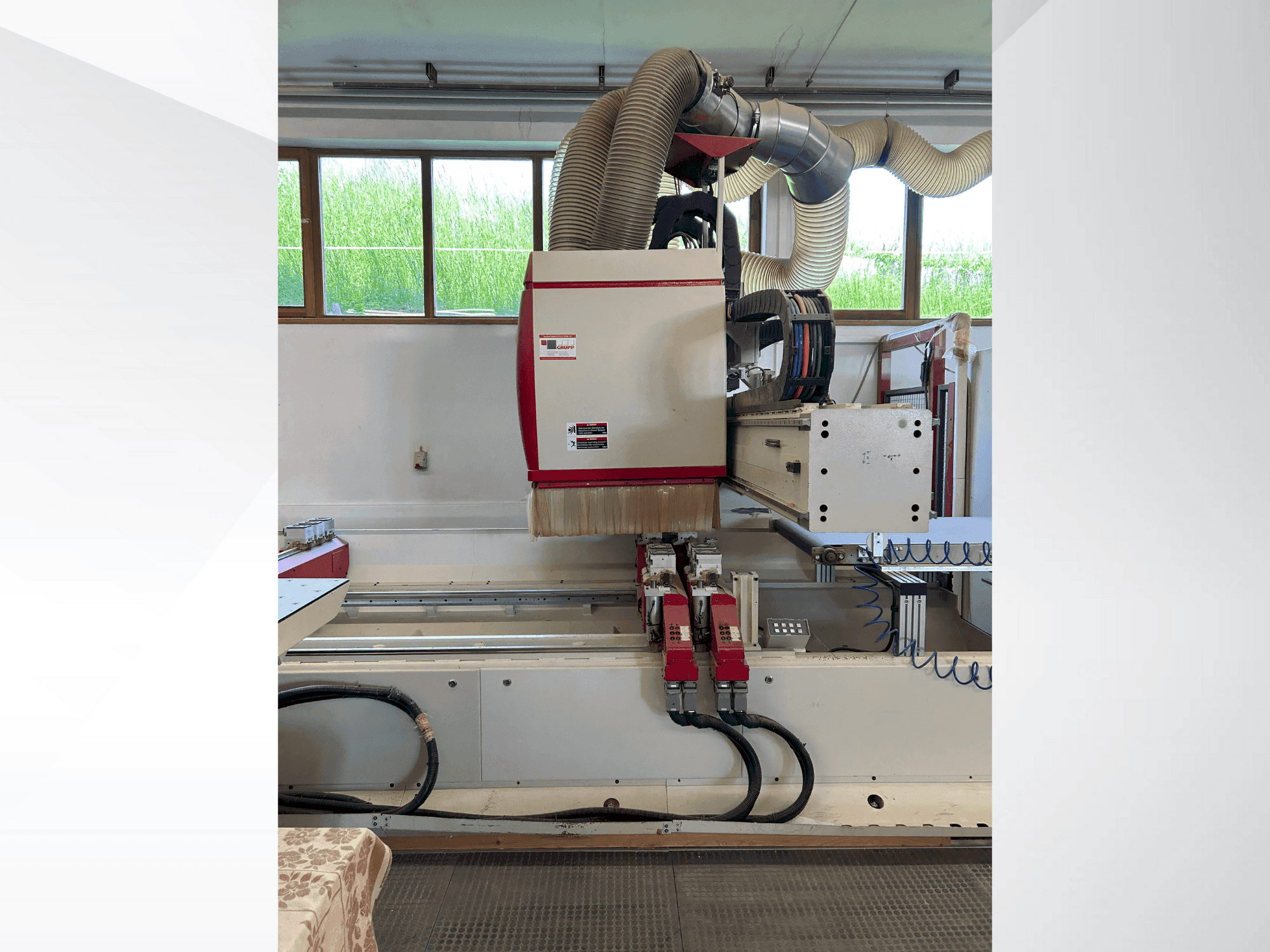

This IMA BIMA CUT 120/240 was manufactured in 2003. A CNC Wood Machining Centre featuring a processing range of X: 4200 mm, Y: 1200 mm, and a maximum clamping height of 100 mm. It includes a main spindle with a tool holder HSK F63 and a drive power of 7.5 KW. The machine also boasts a tool change magazine with 18 places and a variety of drilling and milling capabilities. Contact us for more information about this machine.
Overview
- brand: IMA
- year: 2003
- MODEL: BIMA CUT 120/240
- application type: CNC Wood Machining
- Location: Germany
- machine type: CNC Wood Machining Centre
Technical Information - IMA BIMA CUT 120/240
Dimensions
- Machine Weight: 7200 kg
Movement
- X-axis Travel: 4200 mm
- Y-axis Travel: 1200 mm
Technical Specification
- Spindle Speed: 15000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Drive power: 7. 5 kw in s-1 mode
- Spindle lubrication: one-time factory grease lubrication
- Spindle cooling: water cooling
- An automatic tool/adapter change magazine features a disk changer design with 18 place-coded magazine slots and moves with the support in the x-direction.
- The adapter units include a saw unit (max. 15,000 rpm, 200 mm blade), a horizontal drilling and milling head with 4 spindles (max. 15,000 rpm), a drilling unit for lock case/rung holes (max. 12,000 rpm), a vertical drilling unit s21 (6,000–9,000 rpm, max. 35 mm drill diameter), and a horizontal drilling-sawing unit (4,500–6,000 rpm, max. 125 mm grooving saw, swivel range 0 or 90 degrees).
- Graphical user interface: imawop for pc computer
- Bima cut editor office
- Bima cut editor import interface
- Control for label printers
- Label printer
Technical Machine Benefits
- Max. Clamping height from upper edge of suction plate z1: 100 mm
- Workpiece thickness z2: 14 - 38 mm
- Work table height: approx. 1000 mm
- Alternating field range without pendulum machining x: 2 x 2000 mm
- Free space in the middle x without pendulum processing: 200 mm
- With pendulum processing x: 2 x 1500 mm
- Free space in the middle x with pendulum processing: 1200 mm
- Tool infeed: automatic
- Pull-in force: 11000 n
- Direction of rotation: programmable, clockwise/anticlockwise
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
